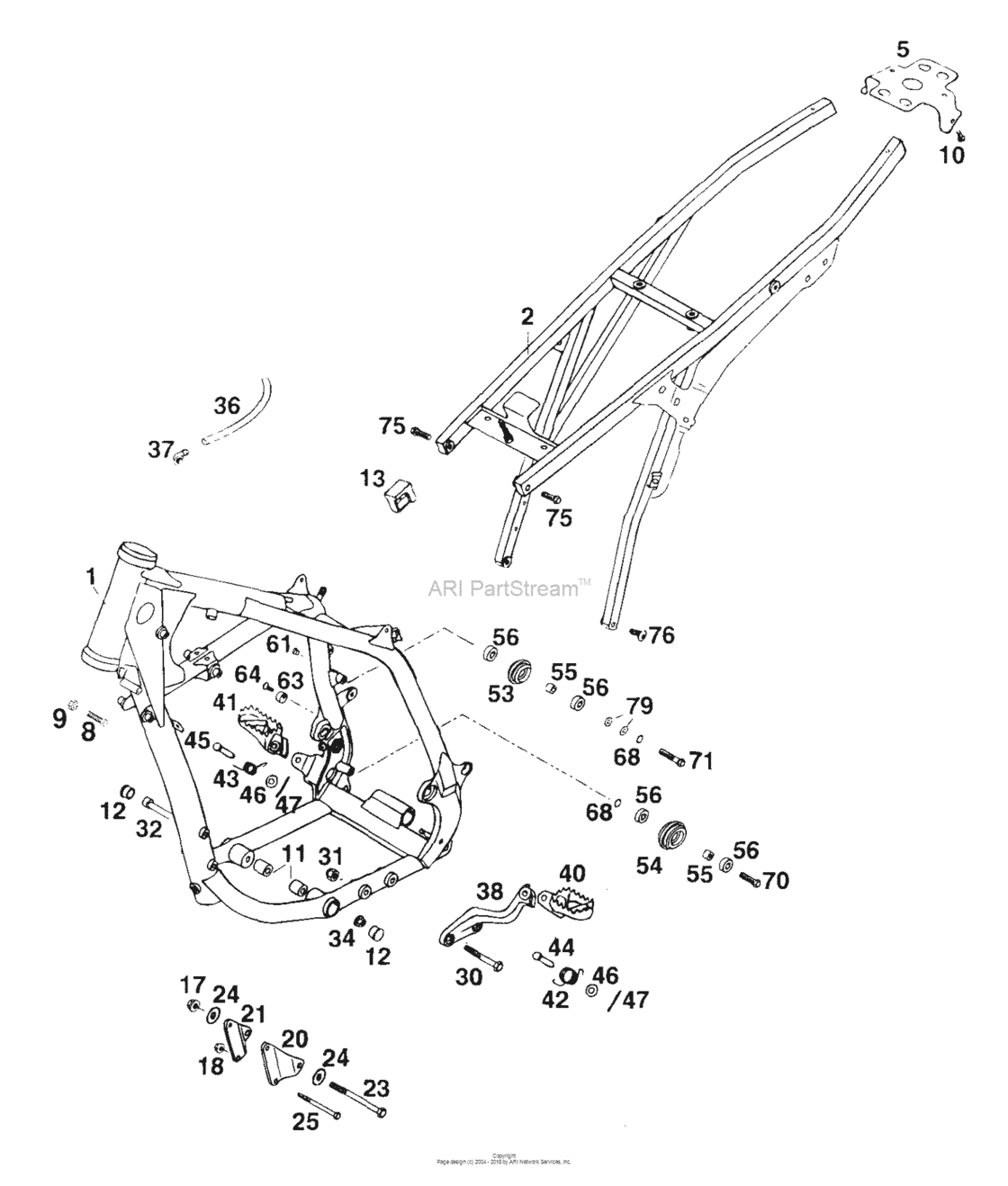

Frame, Sub Frame Diagram KTM 400 400 SXC
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 SXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58303101200
Frame 400 Sxc Usa Silver '00
93 |
58303101200 |
— | ||
|
2
|
2
58303102400
Sub Frame Cpl Alu
93 |
58303102400 |
— | ||
| replacement | |||||
|
2
|
2
58303102444 Subframe cpl. alu etl93 |
58303102444 |
US $303.69 |
||
|
5
|
5
58303002045 Bushing exc-numberplatecarrier93 |
58303002045 |
US $17.66 |
||
|
8
|
8
59001037000 Special screw m8x26 ws=1093 |
59001037000 |
US $2.09 |
||
|
9
|
9
0934080003 Hexagon Nut Din0934-M 893 |
0934080003 |
US $3.26 |
||
|
10
|
10
0015060123
Hh Collar Screw M 6X12 Ws=8
93 |
0015060123 |
— | ||
| replacement | |||||
|
10
|
10
0025060126 Hh collar screw m6x12 tx3093 |
0025060126 |
US $3.96 |
||
|
11
|
11
58003012000 Spacer roller 10,3x20x2293 |
58003012000 |
US $10.39 |
||
|
12
|
12
71001012100 Pvc cap d=22mm93 |
71001012100 |
US $2.11 |
||
|
13
|
13
58307015000 Tank support '9393 |
58307015000 |
US $7.28 |
||
|
17
|
17
49009082000 Self locking nut m10 fk893 |
49009082000 |
US $2.31 |
||
|
18
|
18
54310086000
Self Locking Nut M8 10.9
93 |
54310086000 |
— | ||
| replacement | |||||
|
18
|
18
54310086200 Self Locking Nut M8 10.993 |
54310086200 |
US $1.56 |
||
|
20
|
20
58003055500
Engine support l/s steel '90
93 |
58003055500 |
— | ||
|
21
|
21
58003155500
Engine support r/s steel '90
93 |
58003155500 |
— | ||
|
23
|
23
0931101203
Hh screw din0931-m10x120
93 |
0931101203 |
— | ||
|
24
|
24
31004001100 Washer 10,5 x 21 x 393 |
31004001100 |
US $1.46 |
||
|
25
|
25
0931080803 Hh screw din0931-m 8x8093 |
0931080803 |
US $2.33 |
||
| replacement | |||||
|
25
|
25
0931080805 Hh screw din 931 m8x80 10.993 |
0931080805 |
US $0.31 |
||
|
30
|
30
0931100603
Hh screw din0931-m10x60
93 |
0931100603 |
— | ||
|
31
|
31
0985100003 Self locking nut din0985-m1093 |
0985100003 |
US $1.22 |
||
|
32
|
32
0912101603 Ah screw din0912-m10x16093 |
0912101603 |
US $8.33 |
||
|
34
|
34
54630044000 Collar nut m10 ws=1393 |
54630044000 |
US $2.16 |
||
|
36
|
36
55007016001 Pvc-hose 7x10 per meter93 |
55007016001 |
US $5.98 |
||
|
37
|
37
50303089000 Angle piece '9793 |
50303089000 |
US $4.52 |
||
|
38
|
38
5830303800090
Footrest bracket l/s silver'99
93 |
5830303800090 |
— | ||
|
40
|
40
5830304000090 Footrest l/s silver '9993 |
5830304000090 |
US $46.82 |
||
|
41
|
41
5460314000090 Foot rest r/s silver '9893 |
5460314000090 |
US $43.61 |
||
|
42
|
42
58303041000 Footrest spring l/s '9393 |
58303041000 |
US $6.41 |
||
|
43
|
43
54603041000 Footrest Spring L/s & R/s93 |
54603041000 |
US $3.52 |
||
|
44
|
44
58303044000 Bolt for footrest93 |
58303044000 |
US $8.14 |
||
|
45
|
45
54603044000 Bolt for footrest 9,8 x 5093 |
54603044000 |
US $7.62 |
||
|
46
|
46
0125100003 Washer Din0125-A10,593 |
0125100003 |
US $1.19 |
||
|
47
|
47
0094032253 Pin din0094-3,2x25 steel93 |
0094032253 |
US $1.12 |
||
| replacement | |||||
|
47
|
47
0094032250 Pin din0094-3,2x25 steel93 |
0094032250 |
US $1.12 |
||
|
53
|
53
52303053000 Chain roll d=30mm 125-380 '9993 |
52303053000 |
US $6.75 |
||
|
54
|
54
52303053100 Chain Roll D=35Mm 125-380 '9993 |
52303053100 |
US $6.73 |
||
|
55
|
55
74003021000 Bushing 8.2 x 12 x 693 |
74003021000 |
US $2.14 |
||
|
56
|
56
0625006087 Grooved Ball Bear. 608 2Rs C393 |
0625006087 |
US $19.19 |
||
|
61
|
61
54403135000 Plastic cap sfl1093 |
54403135000 |
US $1.31 |
||
|
63
|
63
58303063000 Brake lever stop '9393 |
58303063000 |
US $5.07 |
||
|
64
|
64
0991060203 Flat Head Din7991-M 6X2093 |
0991060203 |
US $2.99 |
||
| replacement | |||||
|
64
|
64
0991060202 Flat head din7991-m 6x2093 |
0991060202 |
US $3.26 |
||
|
68
|
68
36003014000 Lock washer 8mm93 |
36003014000 |
US $0.46 |
||
|
70
|
70
0015080303
Hh Collar Screw M8X30 Tx40
93 |
0015080303 |
— | ||
| replacement | |||||
|
70
|
70
0025080306 Hh collar screw m8x30 tx4093 |
0025080306 |
US $3.89 |
||
|
71
|
71
0015080403
Hh Collar Screw M8X40 Tx40
93 |
0015080403 |
— | ||
| replacement | |||||
|
71
|
71
0025080406 Hh collar screw m8x40 tx4093 |
0025080406 |
US $2.62 |
||
|
75
|
75
0015080253
H H Collar Screw
93 |
0015080253 |
— | ||
| replacement | |||||
|
75
|
75
0025080256 Hh Collar Screw M8X25 Tx4093 |
0025080256 |
US $4.10 |
||
|
76
|
76
54510052000
Counter-Sunk Screw Isa45 M8X26
93 |
54510052000 |
— | ||
| replacement | |||||
|
76
|
76
0019080266S Counter-sunk screw isa45 m8x2693 |
0019080266S |
US $2.23 |
||
|
78
|
78
0797080003 Toothlock washer din6797-j 8,493 |
0797080003 |
US $0.20 |
||
|
79
|
79
0125080003 Washer din0125-a 8,493 |
0125080003 |
US $2.02 |
||
