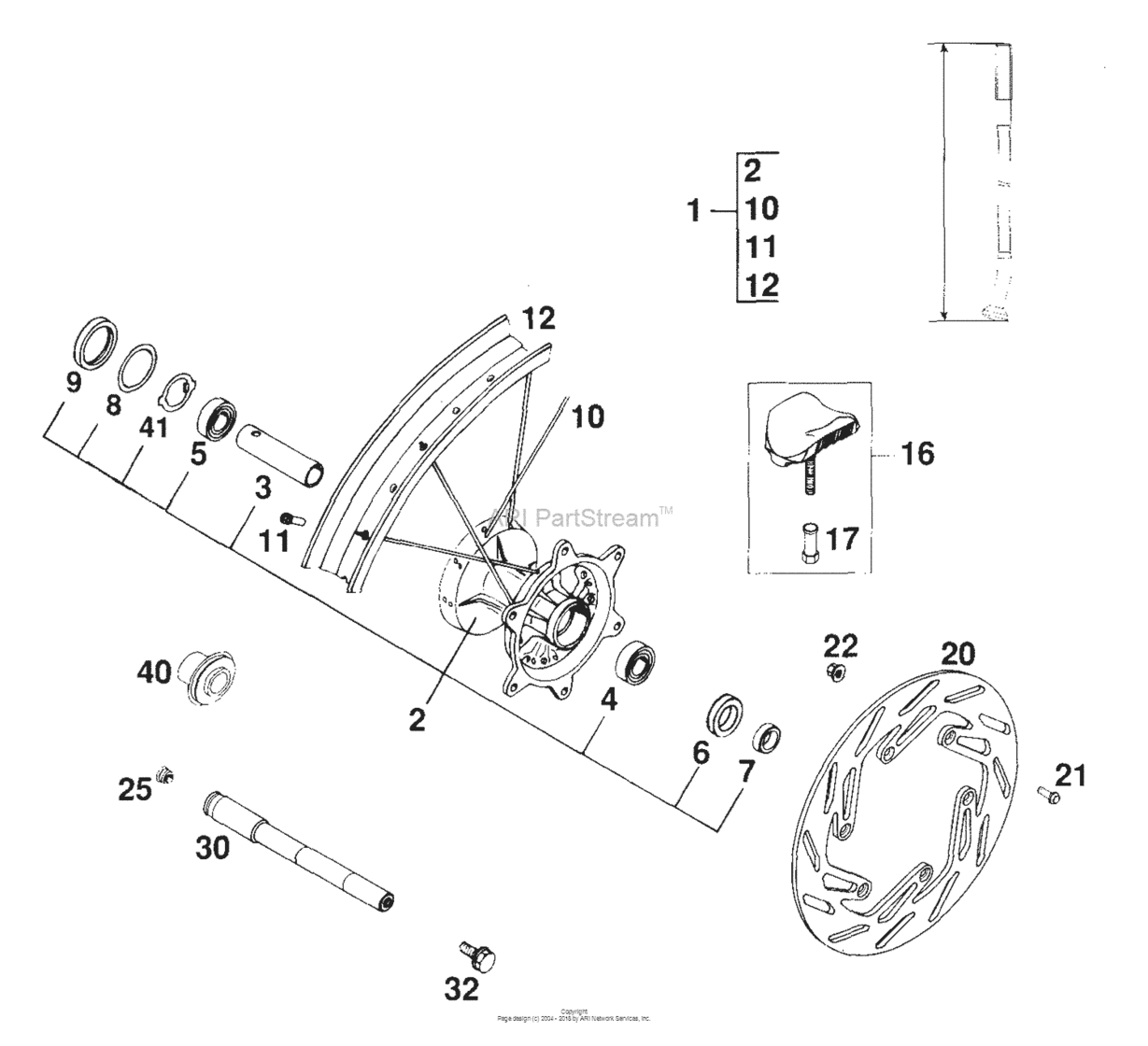

Front Wheel Diagram KTM 400 400 SXC
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 SXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5800900114490
Front wheel 1,6x21" did '93
93 |
5800900114490 |
— | ||
|
1
|
1
5800900114487
Fr.wheel 1,6x21"did gold elox
93 |
5800900114487 |
— | ||
|
2
|
2
5460901004490
Front Hub
93 |
5460901004490 |
— | ||
| replacement | |||||
|
2
|
2
5460911004490 Front wheel hub cpl. sil.17mm93 |
5460911004490 |
US $266.10 |
||
|
3
|
3
54609011000 Bear.spacer tube 17,5x22x64,593 |
54609011000 |
US $12.29 |
||
|
4
|
4
0625060037 Gr.ball bear. 6003-2rsh/c3hmtf93 |
0625060037 |
US $27.20 |
||
|
5
|
5
0625062032 Gr.ball bear. 6203-2rshc3hmtf93 |
0625062032 |
US $17.97 |
||
|
6
|
6
0760253570 Shaft seal ring 25x35x7 btsl93 |
0760253570 |
US $18.89 |
||
|
7
|
7
54609051000
Spacer ring 17x25x7,5
93 |
54609051000 |
— | ||
|
8
|
8
58111054000
Washer 40 X 52 X 0,15 '92
93 |
58111054000 |
— | ||
|
9
|
9
0760405270 Shaft seal ring 40x52x7 b93 |
0760405270 |
US $11.59 |
||
|
10
|
10
58309071234 Spoke m5x234-15g 21" dde93 |
58309071234 |
US $4.28 |
||
|
11
|
11
58309072000 Spoke Sipple Quadrax M5 Not Available93 |
58309072000 |
US $2.35 |
||
| replacement | |||||
|
11
|
11
60310072000
SPOKE NIPPLE QUADRAX M5
93 |
60310072000 |
— | ||
|
12
|
12
54609070200
Front rim 1,6x21" did
93 |
54609070200 |
— | ||
| replacement | |||||
|
12
|
12
51509070000 Rim Front 1,6X21 Excel Al793 |
51509070000 |
US $239.75 |
||
|
12
|
12
5460907020087
Front rim 1,6x21"did gold elox
93 |
5460907020087 |
— | ||
|
16
|
16
51009100100 Rim Lock 1,6093 |
51009100100 |
US $20.55 |
||
| replacement | |||||
|
16
|
16
78109090000 Rim Lock 1,6093 |
78109090000 |
US $20.43 |
||
|
17
|
17
50310090050 Nut for wheel holder '9693 |
50310090050 |
US $4.01 |
||
| replacement | |||||
|
17
|
17
77110090050 Nut For Wheel Holder93 |
77110090050 |
US $3.60 |
||
|
20
|
20
56509060700 Brake Disc 260Mm93 |
56509060700 |
US $219.37 |
||
| replacement | |||||
|
20
|
20
54809060200 BRAKE DISC FRONT D=260MM 0593 |
54809060200 |
US $155.92 |
||
|
21
|
21
0015060163 Hh Collar Screw M 6X16 Ws=893 |
0015060163 |
US $2.23 |
||
|
22
|
22
56509064000 Self Locking Nut M6 10.993 |
56509064000 |
US $1.14 |
||
| replacement | |||||
|
22
|
22
56509064100 Self Locking Nut M6 10.993 |
56509064100 |
US $1.04 |
||
|
25
|
25
55009086000 Plug sfl1393 |
55009086000 |
US $1.39 |
||
|
30
|
30
50309081000 Front axle l=235mm93 |
50309081000 |
US $75.34 |
||
|
32
|
32
49032011000 Hh collar screw m10x20 ws=1793 |
49032011000 |
US $5.73 |
||
|
40
|
40
50309019000 Spacer Bushing For Front Wheel93 |
50309019000 |
US $20.52 |
||
|
41
|
41
58111053100 Driving dog f.speedom.drive'9293 |
58111053100 |
US $6.83 |
||
