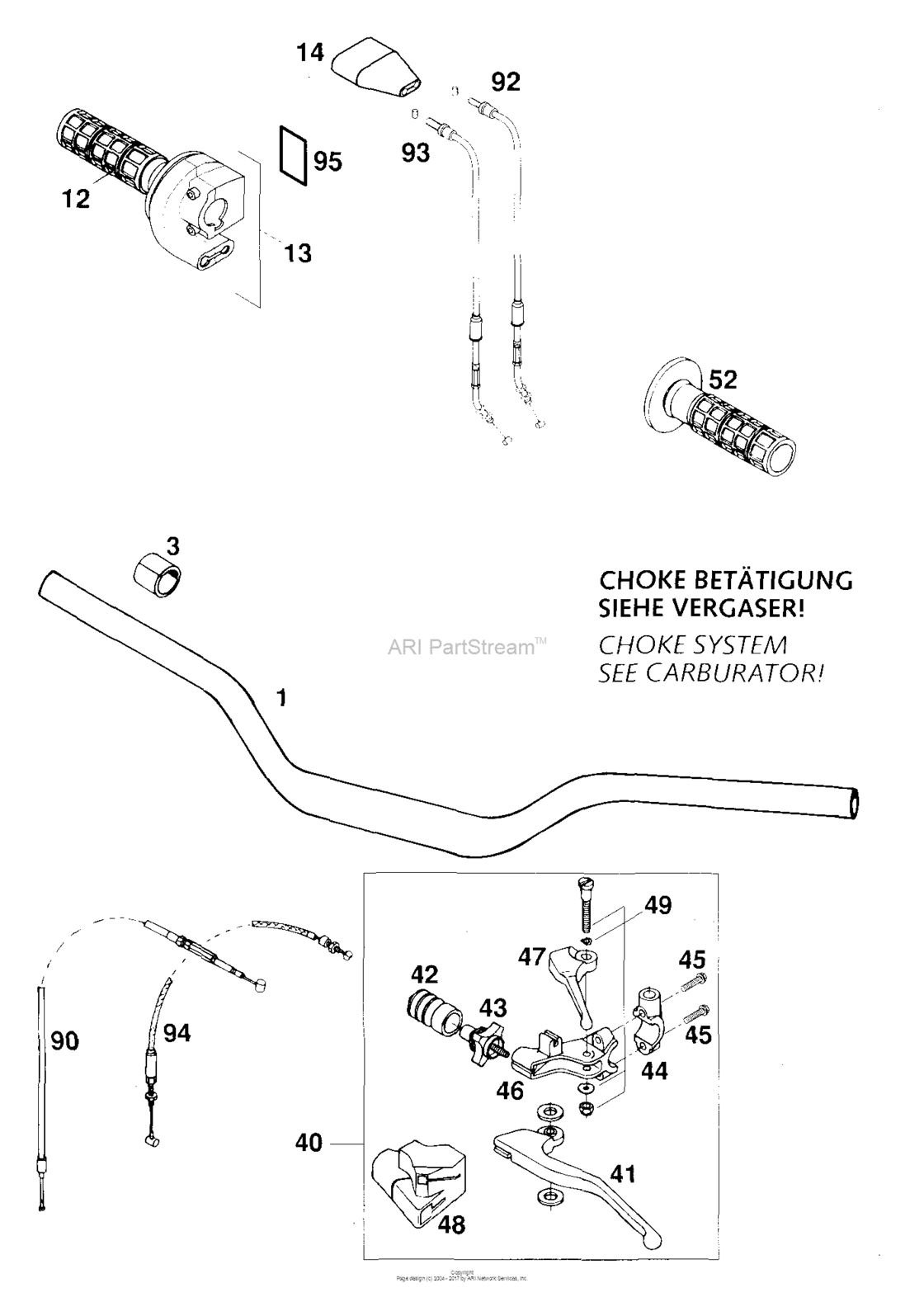

Handlebar, Controls Diagram KTM 400 400 SXC
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 SXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58302001300 Alu-handlebar sx,sc,advent.'9793 |
58302001300 |
US $167.13 |
||
|
3
|
3
50202010000
Spacer bushing 22x28x22pvc
93 |
50202010000 |
— | ||
|
12
|
12
58302003000
Gripp Set Full Waffle
93 |
58302003000 |
— | ||
| replacement | |||||
|
12
|
12
58302021000 Gripp set full waffle93 |
58302021000 |
US $28.88 |
||
|
13
|
13
58402010400 Thrott.grip cpl. domino-mikuni93 |
58402010400 |
US $63.39 |
||
|
14
|
14
58302016200
Protect.cover rxc/duke usa '95
93 |
58302016200 |
— | ||
|
40
|
40
58302040100 Clutch lever assy cpl.domino93 |
58302040100 |
US $112.85 |
||
|
41
|
41
58402042000 Clutch lever loose silver '9793 |
58402042000 |
US $45.36 |
||
|
42
|
42
58302126000 Clutch lever boot '9593 |
58302126000 |
US $3.91 |
||
|
43
|
43
58302043000 Adjustment Screw Cpl.m793 |
58302043000 |
US $22.42 |
||
|
44
|
44
58302044000 Clamp mirrow m10x1,2593 |
58302044000 |
US $11.41 |
||
|
45
|
45
0015060253
Hh Collar Screw M6X25 Tx30
93 |
0015060253 |
— | ||
| replacement | |||||
|
45
|
45
0025060256 Hh collar screw m6x25 tx3093 |
0025060256 |
US $2.45 |
||
|
46
|
46
58302023000 Joint domino93 |
58302023000 |
US $51.48 |
||
|
47
|
47
58302047000 Decompression lever loose93 |
58302047000 |
US $12.19 |
||
|
48
|
48
58302048000 Protecting cover93 |
58302048000 |
US $8.30 |
||
|
49
|
49
58302049000 Lever screw cpl.93 |
58302049000 |
US $6 |
||
|
52
|
52
58302052000
Rubber Grip
93 |
58302052000 |
— | ||
| replacement | |||||
|
52
|
52
58302021000 Gripp set full waffle93 |
58302021000 |
US $28.88 |
||
|
90
|
90
58402090000 Clutch cable 4t l=1115mm '9993 |
58402090000 |
US $36.65 |
||
|
92
|
92
58402092000 Thrott.cable"close"dom.-mikuni93 |
58402092000 |
US $52.17 |
||
|
93
|
93
58402192000 Thrott.cable"open"dom.-mikuni93 |
58402192000 |
US $54.64 |
||
|
94
|
94
58302094200 Decompr. cable l=693,5 lc4 '9993 |
58302094200 |
US $34.44 |
||
|
95
|
95
58402014000 Cap for throttle grip '9993 |
58402014000 |
US $2.48 |
||
