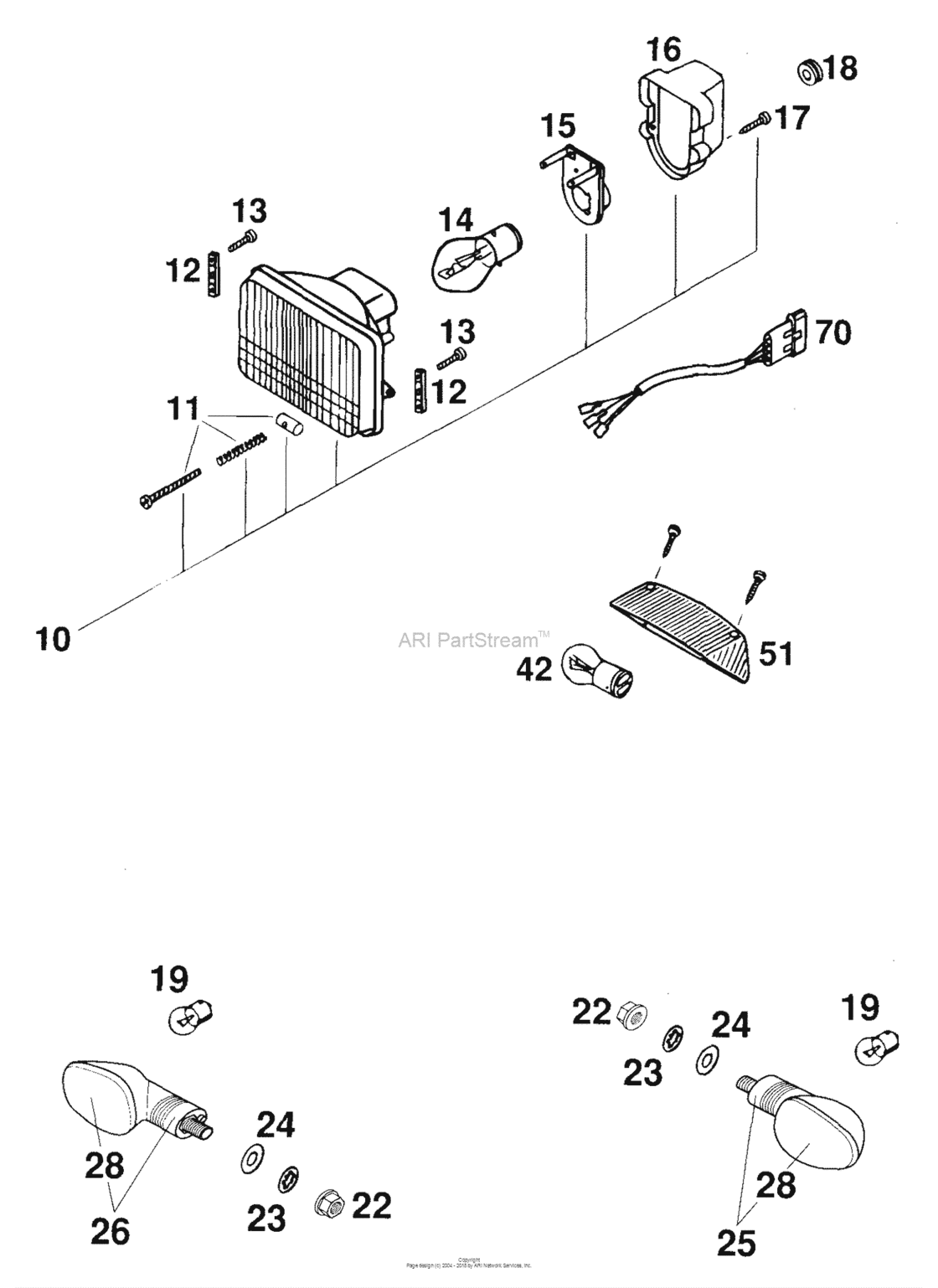

Head Light, Flasher Diagram KTM 400 400 SXC
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 SXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10
|
10
50211610000 Headlight Cpl. Elcom '9393 |
50211610000 |
US $66.25 |
||
|
11
|
11
50211631000 Adjusting screw cpl. m4x4093 |
50211631000 |
US $3.96 |
||
|
12
|
12
50211410050 Headlight bracket '9393 |
50211410050 |
US $6.73 |
||
|
13
|
13
0016040183 Screw for plastic d=4x1893 |
0016040183 |
US $1.17 |
||
|
14
|
14
44111038000 Bilux-bulb 12v 35/35w ba20d93 |
44111038000 |
US $16.30 |
||
|
15
|
15
57011036000 Bulb socket93 |
57011036000 |
US $24.12 |
||
|
16
|
16
50211637000 Cover cap93 |
50211637000 |
US $7.11 |
||
|
17
|
17
0981350133 Sheet met.scr.din7981-3,5x1393 |
0981350133 |
US $0.17 |
||
|
18
|
18
31008060000 Rubber Sleeve D=8Mm Open93 |
31008060000 |
US $1.09 |
||
|
19
|
19
44111015100 Bulb 12v 10w (ba15s)93 |
44111015100 |
US $2.30 |
||
|
22
|
22
58414030000 Hh collar nut m10x1,25 ws=1393 |
58414030000 |
US $2.60 |
||
|
23
|
23
0797100003 Lock washer din6797-j10,5 zi93 |
0797100003 |
US $0.65 |
||
|
24
|
24
0125100003 Washer Din0125-A10,593 |
0125100003 |
US $1.19 |
||
|
25
|
25
5841402500030
Flasher Cpl.front L/s Rear R/s
93 |
5841402500030 |
— | ||
|
26
|
26
5841402600030 Flasher Cpl.front R/s Rear L/s93 |
5841402600030 |
US $25.93 |
||
|
28
|
28
58414028000 Flasher lens l/s & r/s '9893 |
58414028000 |
US $6.75 |
||
|
42
|
42
58414042000 Bulb 12V 21/5W (Bay15S)Reinfo93 |
58414042000 |
US $12.56 |
||
|
51
|
51
58311241000
Rear light lens acerbis '93
93 |
58311241000 |
— | ||
|
70
|
70
50211610010
Cable for headlight '93
93 |
50211610010 |
— |
