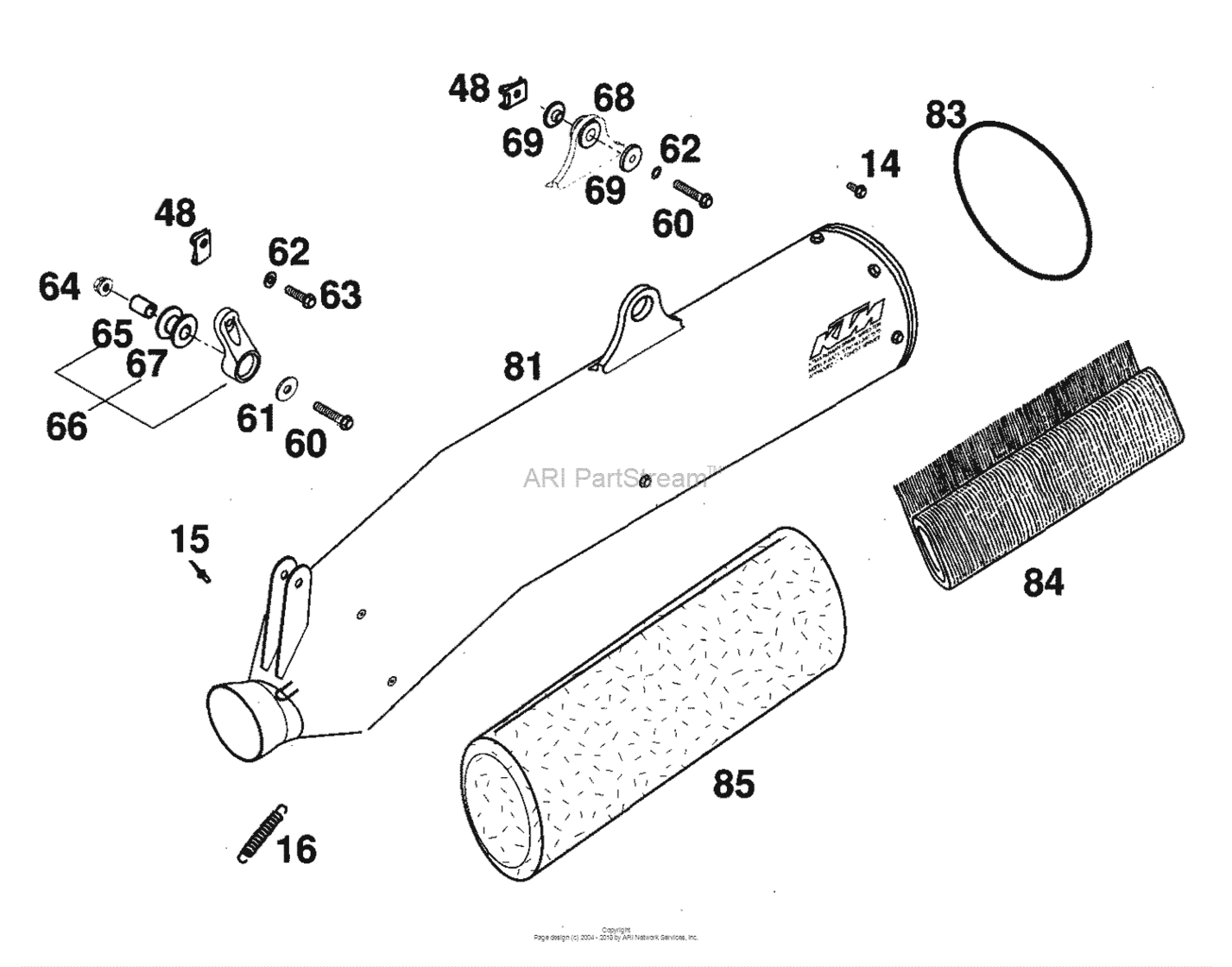

Silencer Diagram KTM 400 400 SXC
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 SXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14
|
14
0009050103
Special screw m 5,0x10
93 |
0009050103 |
— | ||
| replacement | |||||
|
14
|
14
0009050106 Ejot Spiral Screw Sf M5X10-K93 |
0009050106 |
US $2.60 |
||
|
15
|
15
0011480802
Dummy Rivet 4,8X 8 Niro
93 |
0011480802 |
— | ||
| replacement | |||||
|
15
|
15
0011480800 Dummy Rivet 4,8X 8 Niro93 |
0011480800 |
US $2.35 |
||
|
16
|
16
50305016000
Ten.spring L=62Mm Ey.moveable
93 |
50305016000 |
— | ||
| replacement | |||||
|
16
|
16
A46005016000 TEN.SPRING L=62MM EY.MOVEABLE93 |
A46005016000 |
US $5.88 |
||
|
48
|
48
54603048100 Range Change Metal Nut M693 |
54603048100 |
US $5.27 |
||
|
60
|
60
0015060303
Hh Collar Screw M6X30 Tx30
93 |
0015060303 |
— | ||
| replacement | |||||
|
60
|
60
0025060306 Hh collar screw m6x30 tx3093 |
0025060306 |
US $3.96 |
||
|
61
|
61
0021060003 Washer Din9021-A 6,493 |
0021060003 |
US $3.26 |
||
|
62
|
62
0137060000
Spring Washer Din0137-B 6
93 |
0137060000 |
— | ||
| replacement | |||||
|
62
|
62
0137060003 Spring Washer Din0137-B 693 |
0137060003 |
US $0.43 |
||
|
63
|
63
0015060203
Hh Collar Screw M 6X20 Ws=8
93 |
0015060203 |
— | ||
| replacement | |||||
|
63
|
63
0025060206 Hh collar screw m6x20 tx3093 |
0025060206 |
US $1.97 |
||
|
64
|
64
56509064000 Self Locking Nut M6 10.993 |
56509064000 |
US $1.14 |
||
| replacement | |||||
|
64
|
64
56509064100 Self Locking Nut M6 10.993 |
56509064100 |
US $1.04 |
||
|
65
|
65
54305069000 Bushing 7x12x15,493 |
54305069000 |
US $3.33 |
||
|
66
|
66
58305165244 Silencer bracket cpl. short'9693 |
58305165244 |
US $32.03 |
||
|
67
|
67
54305068100 Damp. component silicone grey93 |
54305068100 |
US $14.26 |
||
|
68
|
68
54605068000
Exhaust bracket rubber black
93 |
54605068000 |
— | ||
| replacement | |||||
|
68
|
68
77205068000 Damp. Compon. Black93 |
77205068000 |
US $8.43 |
||
|
69
|
69
54605069000
Bushing 7,5x12x28x7,8 '96
93 |
54605069000 |
— | ||
| replacement | |||||
|
69
|
69
77205169000 Bushing 7.5X12X28X8.3 1193 |
77205169000 |
US $7.82 |
||
|
81
|
81
58305082000
Silencer sxc sparky '00
93 |
58305082000 |
— | ||
|
83
|
83
0770223601 O-Ring 82,14X3,53 Silicone93 |
0770223601 |
US $10.73 |
||
|
84
|
84
58305078002 Stuffing yarn rear 90 gramm'9893 |
58305078002 |
US $49.11 |
||
|
85
|
85
58305078000
Stuffingyarn Front 400Gramm
93 |
58305078000 |
— | ||
| replacement | |||||
|
85
|
85
77005078380 Stuffing yarn 380 gram93 |
77005078380 |
US $86.38 |
||
