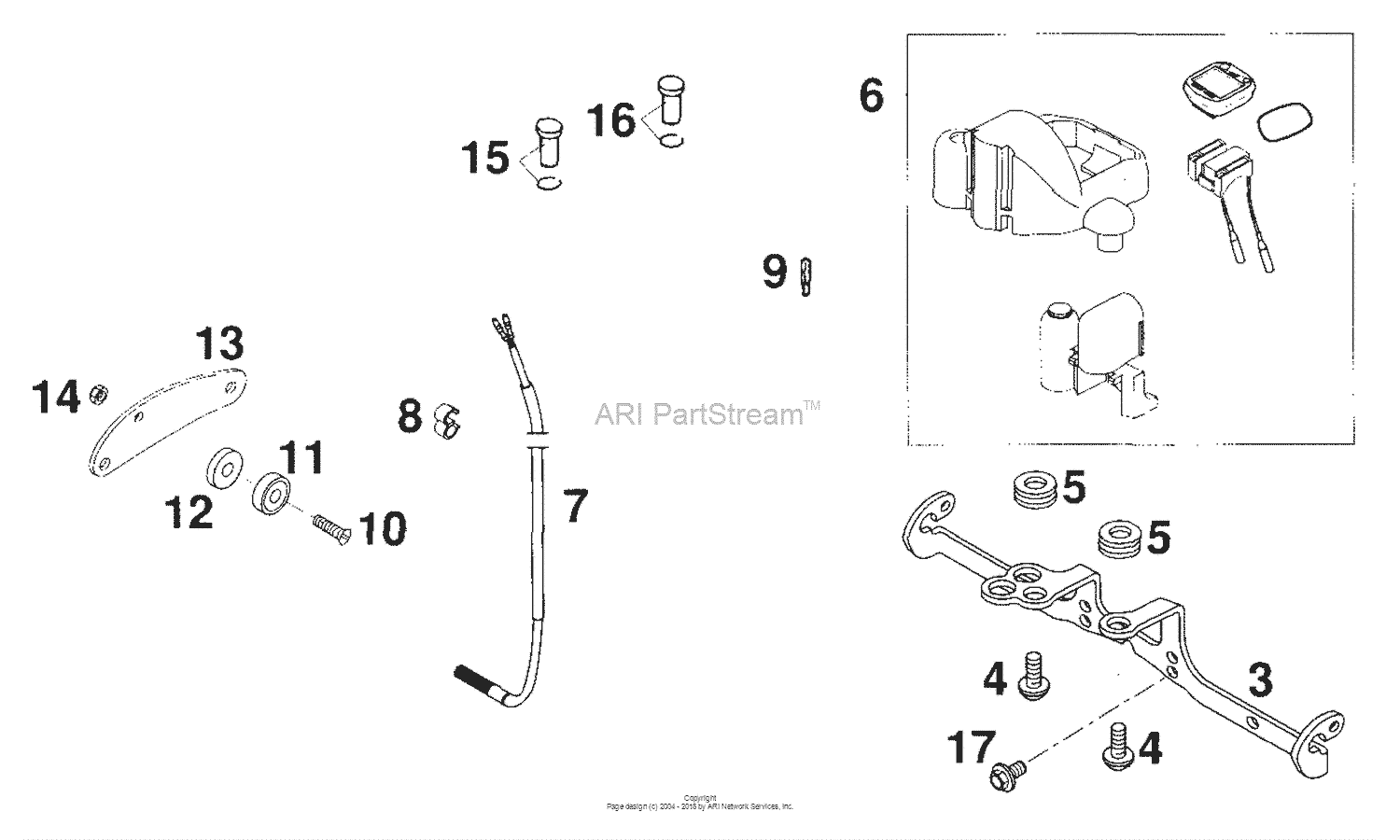

Speedometer Diagram KTM 400 400 SXC
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 SXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
50314061100 Speedomet.bracket egs '9993 |
50314061100 |
US $11.66 |
||
|
4
|
4
0016050121
Screw for plastic 50x12
93 |
0016050121 |
— | ||
| replacement | |||||
|
4
|
4
0081050121 Screw for plastic k50x12 t2093 |
0081050121 |
US $1.19 |
||
|
5
|
5
31008060000 Rubber Sleeve D=8Mm Open93 |
31008060000 |
US $1.09 |
||
|
6
|
6
50314069044
Speedometer Sigma Sport 500 99
93 |
50314069044 |
— | ||
| replacement | |||||
|
6
|
6
50314069144 SPEEDOMETER SIGMA SPORT 500 9993 |
50314069144 |
US $147.29 |
||
|
7
|
7
58314069151 Cable for sigma 500 '9893 |
58314069151 |
US $115.80 |
||
|
8
|
8
55011022100 Clamp d=6/8mm, black93 |
55011022100 |
US $1.07 |
||
|
9
|
9
49111425000 Bulb 12V 2,3W (W2X4,6D)93 |
49111425000 |
US $4.18 |
||
| replacement | |||||
|
9
|
9
49111425200 Bulb 12v 2,3w (w2x4,6d)93 |
49111425200 |
US $1.96 |
||
|
10
|
10
0963040203 Flat head screw din0963-m 4x2093 |
0963040203 |
US $0.39 |
||
|
11
|
11
58314069050 Magnet loose '9793 |
58314069050 |
US $34.65 |
||
|
12
|
12
50232050001 Steel washer 6,4x17x393 |
50232050001 |
US $4.86 |
||
|
13
|
13
58312099073 Bracket for trippmaster sensor93 |
58312099073 |
US $17.29 |
||
|
14
|
14
0985040003 Self locking nut din0985-m 493 |
0985040003 |
US $0.20 |
||
|
15
|
15
58011021300 H.beam Indicator Light Blue'9893 |
58011021300 |
US $6.17 |
||
|
16
|
16
58011024300 Flasher Indicat.light Green'9893 |
58011024300 |
US $7.72 |
||
|
17
|
17
0014060103
Hh Collar Screw M6X10 Tx30
93 |
0014060103 |
— | ||
| replacement | |||||
|
17
|
17
0024060106 Hh collar screw m6x10 tx3093 |
0024060106 |
US $4.35 |
||
