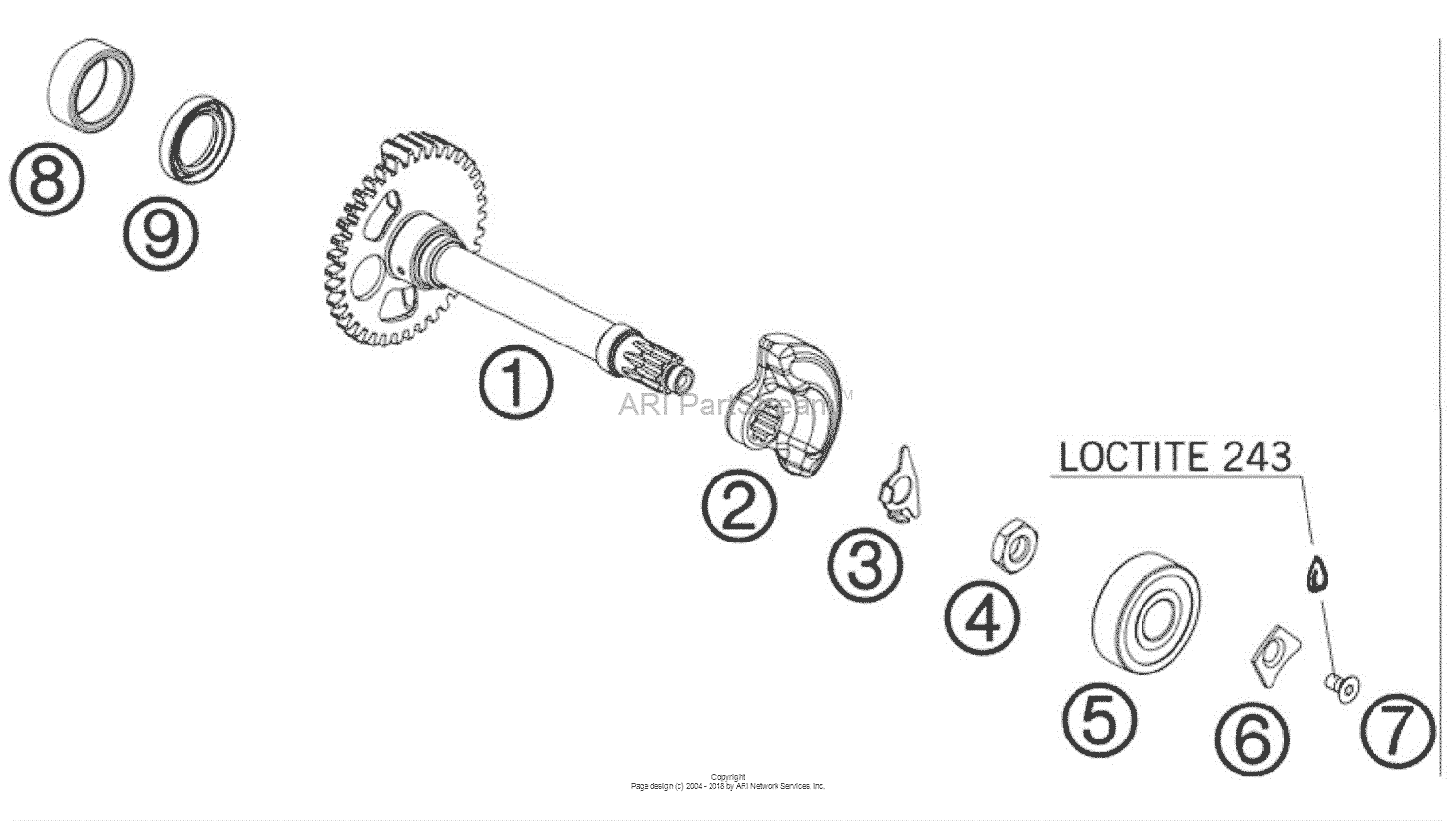

Balancer Shaft Diagram KTM 400 400 XC-W
- Year
- 2010
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 XC-W
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78030056100 Balance shaftTX30 |
78030056100 |
US $204.39 |
||
|
2
|
2
78030057000 Balance weightTX30 |
78030057000 |
US $28.53 |
||
|
3
|
3
78030068000 Tab washer 0808 |
78030068000 |
US $1.55 |
||
|
4
|
4
04391010031 Hexagon nut din0439-m10x1 a208 |
04391010031 |
US $1.58 |
||
|
5
|
5
0625063020 Ball bearing08 |
0625063020 |
US $26.47 |
||
|
6
|
6
78033232000 Tab washer08 |
78033232000 |
US $6.19 |
||
|
7
|
7
0019050103 Int. torx flat head m 5x10 8.808 |
0019050103 |
US $0.82 |
||
| replacement | |||||
|
7
|
7
0019050106S Int. Torx Flat Head M5X10 10.908 |
0019050106S |
US $0.27 |
||
|
8
|
8
0617253212 Needle bearing 25x32x12 hk251208 |
0617253212 |
US $7.62 |
||
|
9
|
9
0760203261 Shaft seal ring 20x32x6 rubber08 |
0760203261 |
US $9.01 |
||
