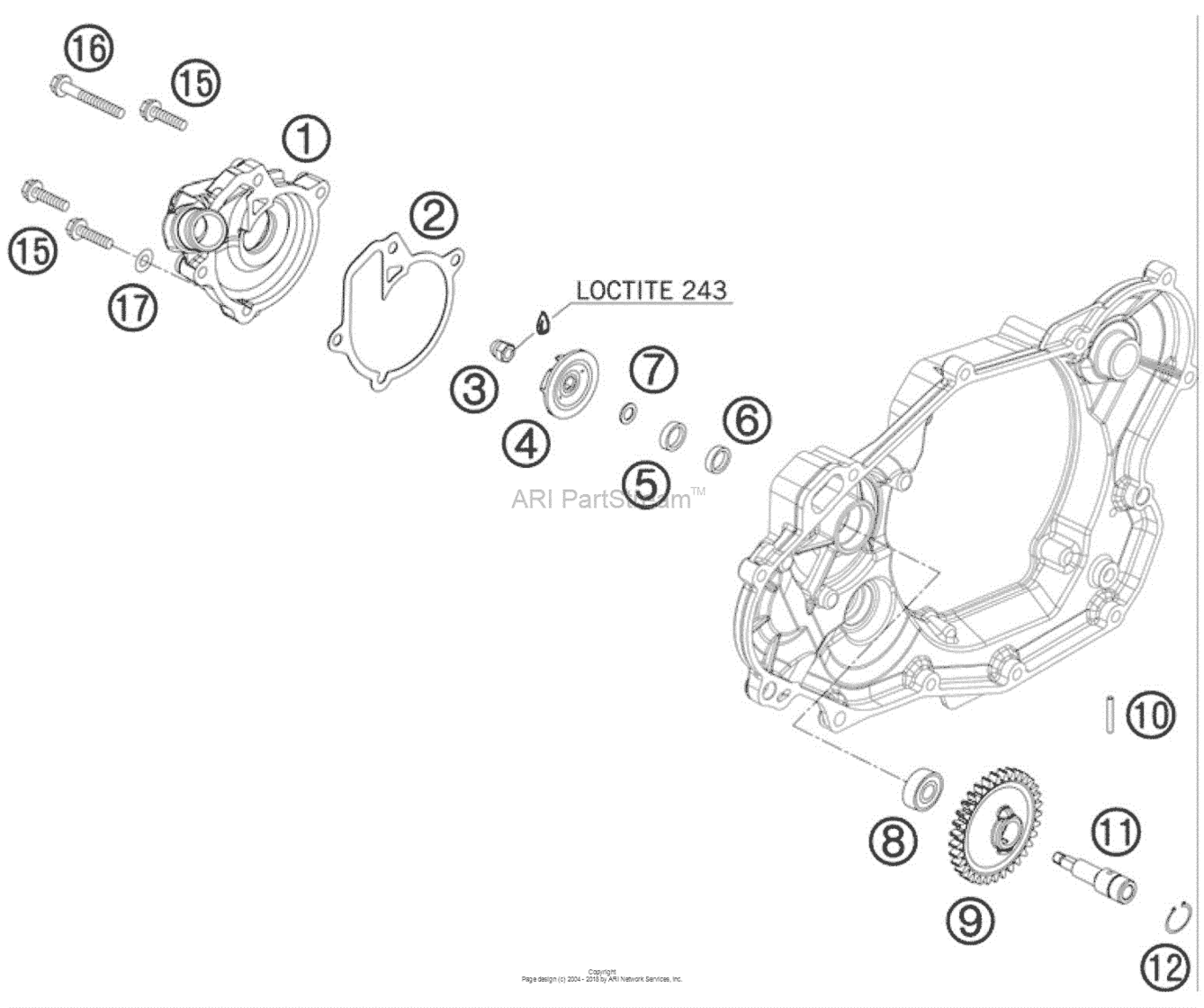

Water Pump Diagram KTM 400 400 XC-W
- Year
- 2010
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7803505200015 Water pump cover grey(As required) |
7803505200015 |
US $81.92 |
||
|
2
|
2
78035053000 Gasket wapu-cover 0808 |
78035053000 |
US $6.43 |
||
|
3
|
3
0587060002 Cap Nut M6 Stainless Steel08 |
0587060002 |
US $1.21 |
||
| replacement | |||||
|
3
|
3
61230045000 Cap Nut M6 Stainless Steel08 |
61230045000 |
US $0.90 |
||
|
4
|
4
77335055100 Water-pump wheel 0707 |
77335055100 |
US $3.13 |
||
|
5
|
5
0760102455 Shaft seal ring 10x24x5,507 |
0760102455 |
US $13.11 |
||
|
6
|
6
0760102440 Shaft seal ring 10x24x407 |
0760102440 |
US $16.85 |
||
|
7
|
7
78035054110 Spacer shim07 |
78035054110 |
US $1.84 |
||
|
8
|
8
0625060001 Ball bearing 6000/c307 |
0625060001 |
US $12.38 |
||
|
9
|
9
78035054001 Drive wheel wapu plastic mat.07 |
78035054001 |
US $3.18 |
||
|
10
|
10
0402032180 Needle roller din5402 3x21,807 |
0402032180 |
US $1.04 |
||
|
11
|
11
78035054100 Water pump shaft07 |
78035054100 |
US $53.38 |
||
|
12
|
12
0471140100 Lock washer din0471-14x107 |
0471140100 |
US $0.73 |
||
|
15
|
15
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
16
|
16
0025060556 Hh collar screw m6x55 tx30TX30 |
0025060556 |
US $2.52 |
||
|
17
|
17
0603061001 Cu-Seal Ring Din7603-6X10X1TX30 |
0603061001 |
US $2.64 |
||
