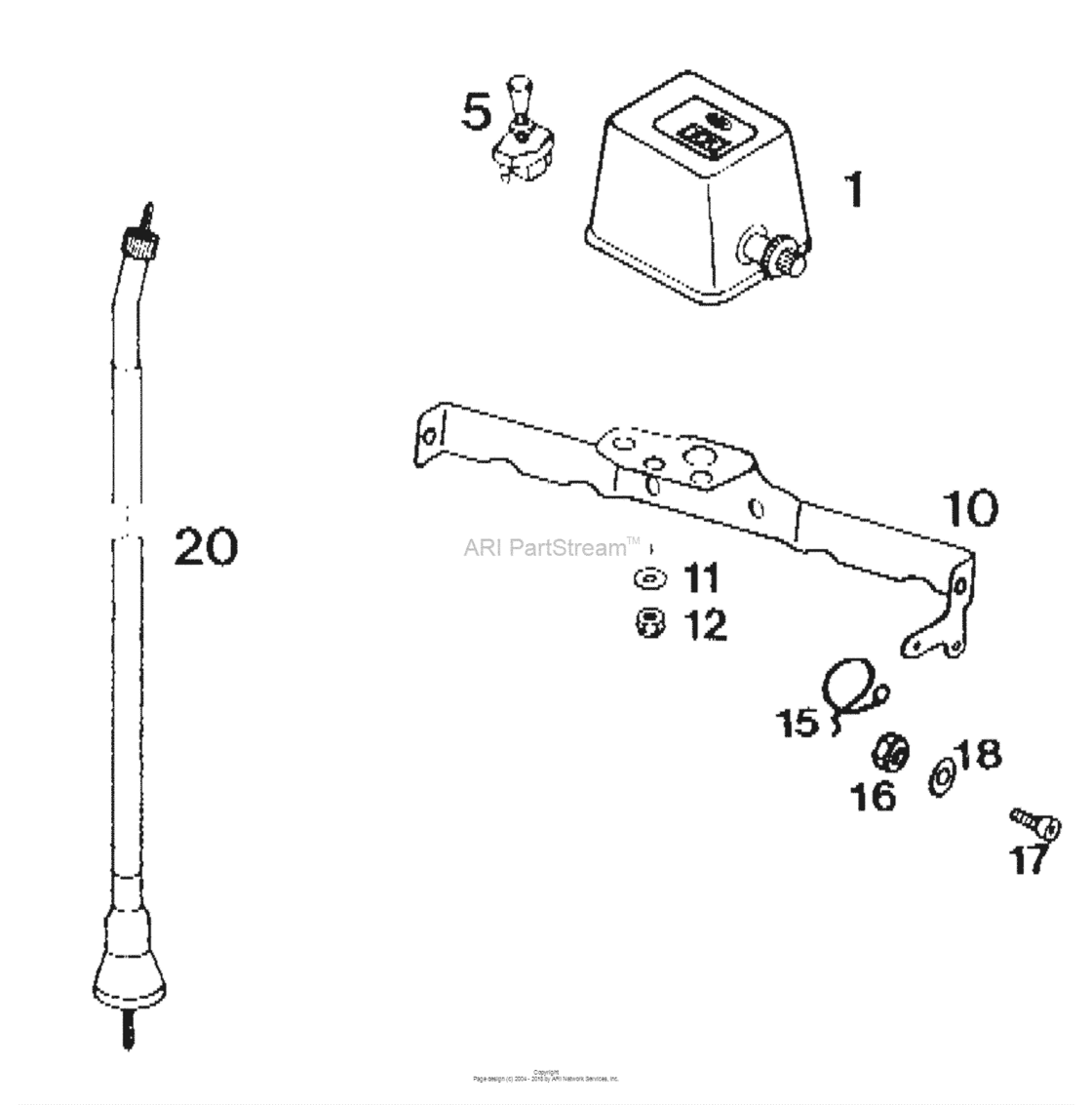

Odometer Diagram KTM 440 440 SX
- Year
- 1994
- Sales region
- US/EU
- Engine Capacity
- 440
- Model
- 440 SX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58011180000 OdometerLC4 '93 |
58011180000 |
US $113.95 |
||
|
5
|
5
55011599000 Pull switch looseLC4 '93 |
55011599000 |
US $19.47 |
||
|
10
|
10
54611020200
Mask bracket exc usa '94
94 |
54611020200 |
— | ||
|
11
|
11
0125040003
Washer din0125-a 4,0
94 |
0125040003 |
— | ||
|
12
|
12
0985040003 Self locking nut din0985-m 494 |
0985040003 |
US $0.20 |
||
|
15
|
15
58011008000 Guide for brake hose94 |
58011008000 |
US $5.03 |
||
|
16
|
16
0985050003 Self Locking Nut Din0985-M 594 |
0985050003 |
US $3.26 |
||
|
17
|
17
0912050123 Ah screw din0912-m 5x12(As Required) |
0912050123 |
US $0.85 |
||
|
17
|
17
0933050123 Hh screw din0933-m 5x12(As Required) |
0933050123 |
US $0.31 |
||
|
18
|
18
0125050003 Washer Din0125-A 5,3(As Required) |
0125050003 |
US $2.18 |
||
|
20
|
20
56511188500 Speedom.cable M12/m12 980Mm(As Required) |
56511188500 |
US $48.93 |
