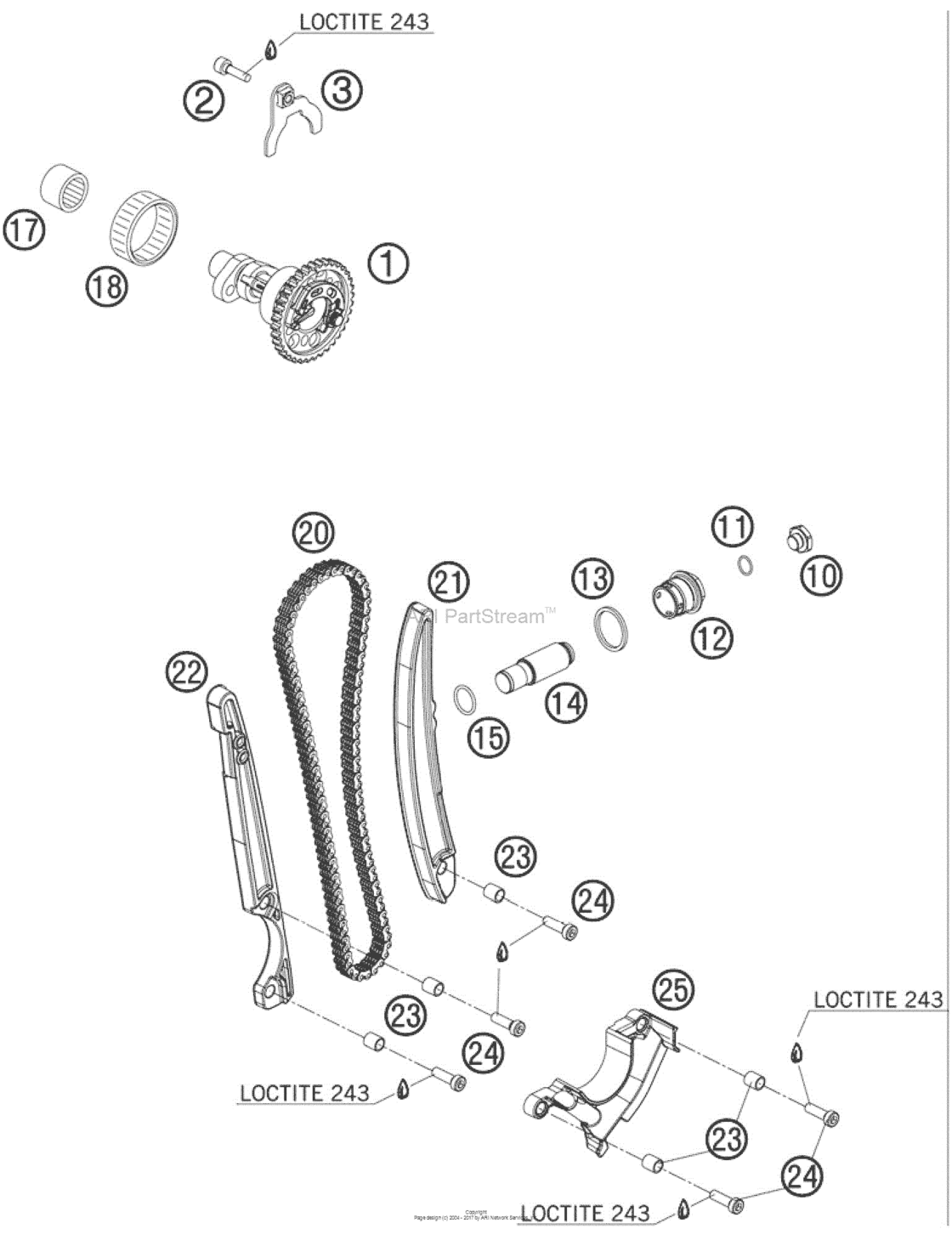

Timing Drive Diagram KTM 450 450 EXC
- Year
- 2011
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 EXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78036010333
Camshaft Cpl. With Deco
2000 |
78036010333 |
— | ||
| replacement | |||||
|
1
|
1
78136010033 Camshaft Cpl. With Deco2000 |
78136010033 |
US $291.35 |
||
|
2
|
2
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
3
|
3
78036012033 Retaining plate camshaft cpl.TX30 |
78036012033 |
US $10.73 |
||
|
10
|
10
77336008010 Holding boltTX30 |
77336008010 |
US $9.01 |
||
|
11
|
11
0770010010 O-ring 10,00x1,00 nbr 70 shTX30 |
0770010010 |
US $2.24 |
||
|
12
|
12
78036008100 Chain adjuster holding boltTX30 |
78036008100 |
US $20.84 |
||
|
13
|
13
0603242920 Cu seal-ring din7603 a24x29x2TX30 |
0603242920 |
US $2.13 |
||
|
14
|
14
77036003100 Chain adjusterTX30 |
77036003100 |
US $82.25 |
||
|
15
|
15
0770180020 O-ring 18,00x2,00 nbr 70TX30 |
0770180020 |
US $2.64 |
||
|
17
|
17
0618182414 Needle sleeve hk1814rs18/24/14TX30 |
0618182414 |
US $11.46 |
||
|
18
|
18
0618404712 Needle sleeve hk4012b40x47x12TX30 |
0618404712 |
US $13.94 |
||
|
20
|
20
78036013000 Timing chain 110t 0808 |
78036013000 |
US $79.22 |
||
|
21
|
21
78036002100 Timing chain tensioner08 |
78036002100 |
US $7.41 |
||
|
22
|
22
78036001000 Guide rail08 |
78036001000 |
US $6.26 |
||
|
23
|
23
77036001050 Spacer bushing 6.1x8.2x9.1 0505 |
77036001050 |
US $3.23 |
||
|
24
|
24
0984060203 Ah screw din6912-m 6x20 8.88.8 |
0984060203 |
US $1.55 |
||
|
25
|
25
78036005100 Failure protection8.8 |
78036005100 |
US $5.71 |
||
