Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 58414001000 Head light triom cpl. '96 CONSTRUCTION FOR KNEE PIECE	58414001000	US $171.12
3	3 54611038012 Bulb hs1 12v 35/35w white SOCKET PX43T	54611038012	US $33.52
4	4 49011435000 Bulb 12V 5W (W2,1X9,5D) Phil SOCKET PX43T	49011435000	US $4.27
	replacement
4	4 49011435100 Bulb 12V 5W (W2,1X9,5D) Phil SOCKET PX43T	49011435100	US $3.81
5	5 0015060303 Hh Collar Screw M6X30 Tx30 SOCKET PX43T	0015060303	—
	replacement
5	5 0025060306 Hh collar screw m6x30 tx30 SOCKET PX43T	0025060306	US $3.96
6	6 0021060003 Washer Din9021-A 6,4 SOCKET PX43T	0021060003	US $3.26
7	7 41001052000 Rubber Sleeve D=12Mm SOCKET PX43T	41001052000	US $5.46
8	8 56530060050 Spacer bushing 6x12x20 alu SOCKET PX43T	56530060050	US $5.22
9	9 0021050003 Washer din9021-a 5,3 SOCKET PX43T	0021050003	US $1.29
10	10 58512091200 Carrier for triom head l. 2001 SOCKET PX43T	58512091200	US $191.17
14	14 58514046000 Rear Light Bracket SOCKET PX43T	58514046000	—
15	15 0981350133 Sheet met.scr.din7981-3,5x13 SOCKET PX43T	0981350133	US $0.17
17	17 58311049007 Tensioning spring 1 x 12 x 35 SOCKET PX43T	58311049007	US $2.30
18	18 58512006100 Bushing Sleeve Cover Front 04 SOCKET PX43T	58512006100	—
19	19 0738060301 Cou.sunk scr. ah iso7380 m6x30 SOCKET PX43T	0738060301	US $0.20
20	20 58511099244 Extra Rear Light Lens '97 SOCKET PX43T	58511099244	—
21	21 0933050603 Hh screw din0933-m 5x60 SOCKET PX43T	0933050603	—
22	22 58511099200 Wiring Harness Rear Light '99 SOCKET PX43T	58511099200	—
24	24 58514004000 Socket For Brake Light '99 SOCKET PX43T	58514004000	—
26	26 58512091251 Flashbackprotection Horiz. 01 SOCKET PX43T	58512091251	—
27	27 58512091250 Flashbackprotection Verti.2001 SOCKET PX43T	58512091250	—
28	28 6899792 Glue Cyanacrylat 7434 SOCKET PX43T	6899792	—
28	28 6899785 Loctite 243 Blue 6Ccm SOCKET PX43T	6899785	US $40.61
31	31 58311040000 Rear Light Cpl. Cev 358 '93 SOCKET PX43T	58311040000	US $45.66
32	32 58311041000 Lens '93 SOCKET PX43T	58311041000	US $24.43
33	33 58414042000 Bulb 12V 21/5W (Bay15S)Reinfo SOCKET PX43T	58414042000	US $12.56
34	34 58011039000 Spacer bushing 6,5 x 8 x 7 SOCKET PX43T	58011039000	US $1.79
35	35 31008060000 Rubber Sleeve D=8Mm Open SOCKET PX43T	31008060000	US $1.09
36	36 0021060003 Washer Din9021-A 6,4 SOCKET PX43T	0021060003	US $3.26
37	37 0985050003 Self Locking Nut Din0985-M 5 SOCKET PX43T	0985050003	US $3.26
40	40 0797100003 Lock washer din6797-j10,5 zi SOCKET PX43T	0797100003	US $0.65
41	41 0125100003 Washer Din0125-A10,5 SOCKET PX43T	0125100003	US $1.19
43	43 58514033000 Flasher Support Rallye L/s 01 SOCKET PX43T	58514033000	—
44	44 58514034000 Flasher Support Rallye R/s 01 SOCKET PX43T	58514034000	—
45	45 5841402500030 Flasher Cpl.front L/s Rear R/s SOCKET PX43T	5841402500030	—
46	46 5841402600030 Flasher Cpl.front R/s Rear L/s SOCKET PX43T	5841402600030	US $25.93
47	47 58414028000 Flasher lens l/s & r/s '98 SOCKET PX43T	58414028000	US $6.75
48	48 44111015100 Bulb 12v 10w (ba15s) SOCKET PX43T	44111015100	US $2.30
49	49 58414030000 Hh collar nut m10x1,25 ws=13 SOCKET PX43T	58414030000	US $2.60
60	60 44011076100 Cable tie 100/2,5mm black SOCKET PX43T	44011076100	US $0.39
	replacement
60	60 44011076140 Cable tie 140/2,5mm black SOCKET PX43T	44011076140	US $0.29
60	60 44011076200 Cable tie 200/3,6mm black SOCKET PX43T	44011076200	US $0.39

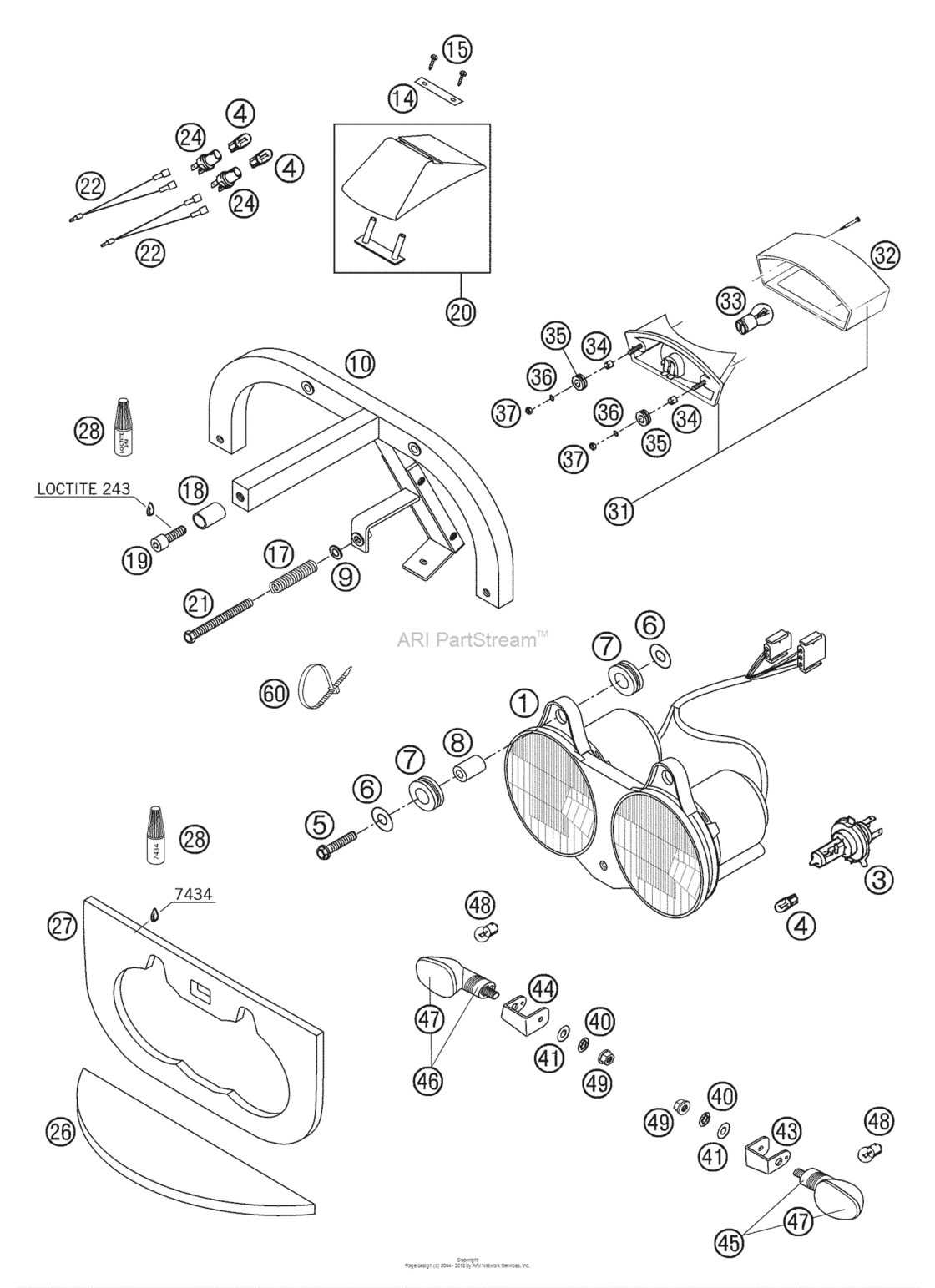

Head Light, Lights Diagram KTM 450 450 Rallye US/EU 18094055-940069

Head Light, Lights Diagram KTM 450 450 Rallye US/EU 18094055-940069
