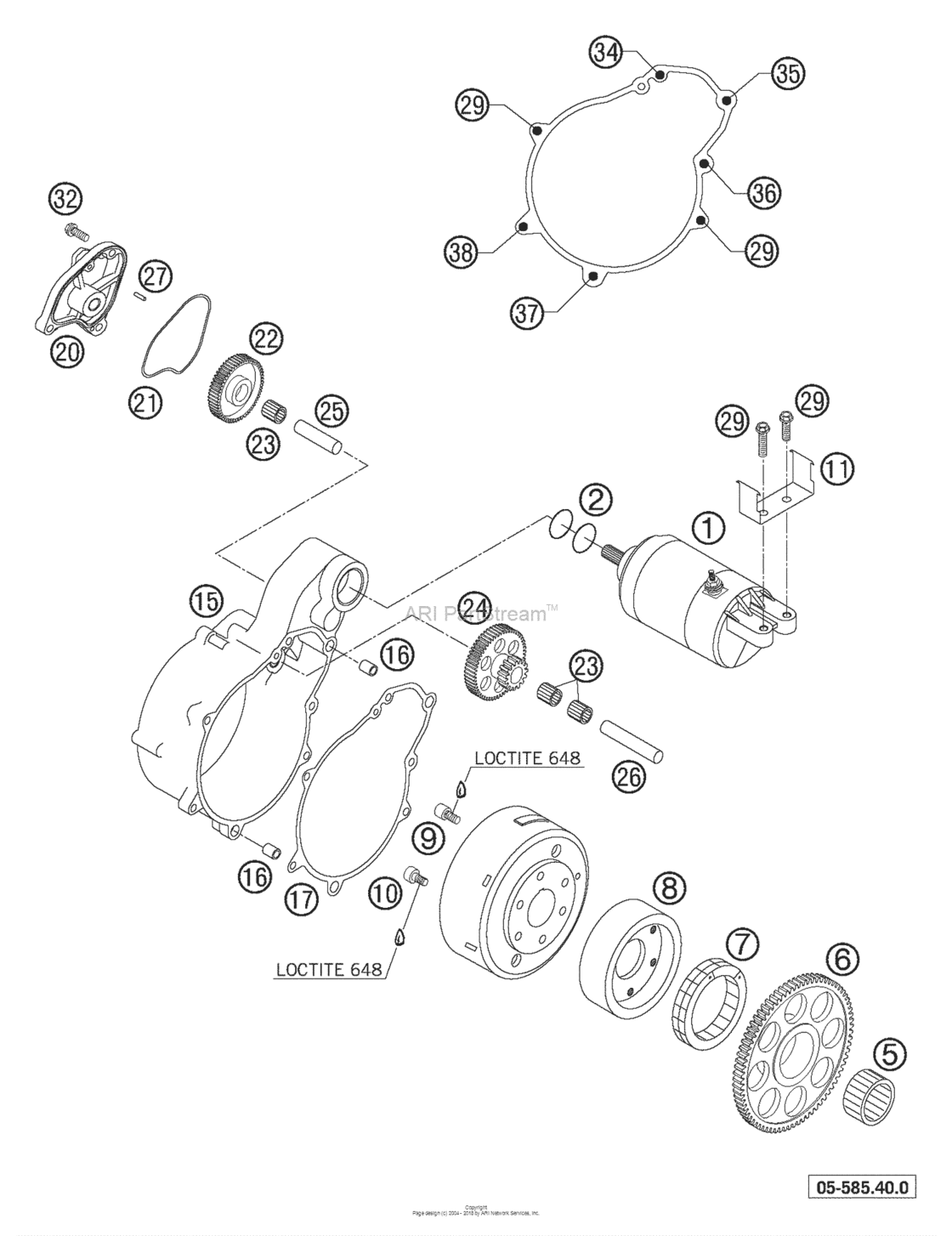

Electric Starter Diagram KTM 450 450 Rallye
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 Rallye
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58440001000 E-starter engine cpl. lc4-eSIDEWARDS CLOSED |
58440001000 |
US $383.30 |
||
|
2
|
2
0770250030 O-ring 25,00x3,00 nbr 70SIDEWARDS CLOSED |
0770250030 |
US $4.35 |
||
|
5
|
5
58440090100 Needle bearing k30 x 37 x 18 aSIDEWARDS CLOSED |
58440090100 |
US $20.94 |
||
|
6
|
6
58440020079 Free-wheel-gear 79-tSIDEWARDS CLOSED |
58440020079 |
US $179.89 |
||
|
7
|
7
58440026000 Free-wheel fwd 332008 blsSIDEWARDS CLOSED |
58440026000 |
US $121.24 |
||
|
8
|
8
58440025000 Freewheel hubSIDEWARDS CLOSED |
58440025000 |
US $97.92 |
||
|
9
|
9
0912060121 Ah screw din0912-m 6x12 12.9SIDEWARDS CLOSED |
0912060121 |
US $0.82 |
||
|
10
|
10
58440098000 Ah centering screw m6x12,5SIDEWARDS CLOSED |
58440098000 |
US $9.10 |
||
|
11
|
11
58511058050
Bracket For Startrelais '99
SIDEWARDS CLOSED |
58511058050 |
— | ||
|
15
|
15
58440010100 Starter flange black '97SIDEWARDS CLOSED |
58440010100 |
US $144.72 |
||
|
16
|
16
49030090000 Dowel 9,8 x 7 x 10SIDEWARDS CLOSED |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
16
|
16
49030090100 Dowel 9,8 X7X10SIDEWARDS CLOSED |
49030090100 |
US $2.60 |
||
|
17
|
17
58540042000 Starter flan.gasket 0,5mm 2001SIDEWARDS CLOSED |
58540042000 |
US $5.76 |
||
|
20
|
20
58440011100 Starter cover black '97SIDEWARDS CLOSED |
58440011100 |
US $54.13 |
||
|
21
|
21
58440011050
Form ring f.startercover nbr70
SIDEWARDS CLOSED |
58440011050 |
— | ||
|
22
|
22
58440022000
Intermediate gear 52-t
SIDEWARDS CLOSED |
58440022000 |
— | ||
|
23
|
23
58440090000 Needle bearing k10 x 13 x 13tnSIDEWARDS CLOSED |
58440090000 |
US $8.69 |
||
|
24
|
24
58440021018 Reduction gear 55-t/18-zSIDEWARDS CLOSED |
58440021018 |
US $84.56 |
||
|
25
|
25
58440028000
Bearing bolt 10 x 38,4
SIDEWARDS CLOSED |
58440028000 |
— | ||
|
26
|
26
58440029000 Bearing bolt 10 x 54SIDEWARDS CLOSED |
58440029000 |
US $14.01 |
||
|
27
|
27
0402040780
Needleroll. din5402 nrb 4x 7,8
SIDEWARDS CLOSED |
0402040780 |
— | ||
|
29
|
29
0015060253
Hh Collar Screw M6X25 Tx30
SIDEWARDS CLOSED |
0015060253 |
— | ||
| replacement | |||||
|
29
|
29
0025060256 Hh collar screw m6x25 tx30SIDEWARDS CLOSED |
0025060256 |
US $2.45 |
||
|
32
|
32
0015060163 Hh Collar Screw M 6X16 Ws=8SIDEWARDS CLOSED |
0015060163 |
US $2.23 |
||
|
34
|
34
0015060453
Hh collar screw m 6x45 ws=8
SIDEWARDS CLOSED |
0015060453 |
— | ||
| replacement | |||||
|
34
|
34
0025060456 Hh collar screw m6x45 tx30SIDEWARDS CLOSED |
0025060456 |
US $1.89 |
||
|
35
|
35
0015060503
Hh collar screw m 6x50 ws=8
SIDEWARDS CLOSED |
0015060503 |
— | ||
| replacement | |||||
|
35
|
35
0025060506 Hh collar screw m6x50 tx30SIDEWARDS CLOSED |
0025060506 |
US $3.30 |
||
|
36
|
36
0015060803 Hh collar screw m 6x80 ws=8SIDEWARDS CLOSED |
0015060803 |
US $1.51 |
||
| replacement | |||||
|
36
|
36
0025060806 Hh Collar Screw M6X80 Tx30SIDEWARDS CLOSED |
0025060806 |
US $1.41 |
||
|
37
|
37
0015060303
Hh Collar Screw M6X30 Tx30
SIDEWARDS CLOSED |
0015060303 |
— | ||
| replacement | |||||
|
37
|
37
0025060306 Hh collar screw m6x30 tx30SIDEWARDS CLOSED |
0025060306 |
US $3.96 |
||
|
38
|
38
0015060953 Hh collar screw m 6x95 ws=8SIDEWARDS CLOSED |
0015060953 |
US $2.48 |
||
