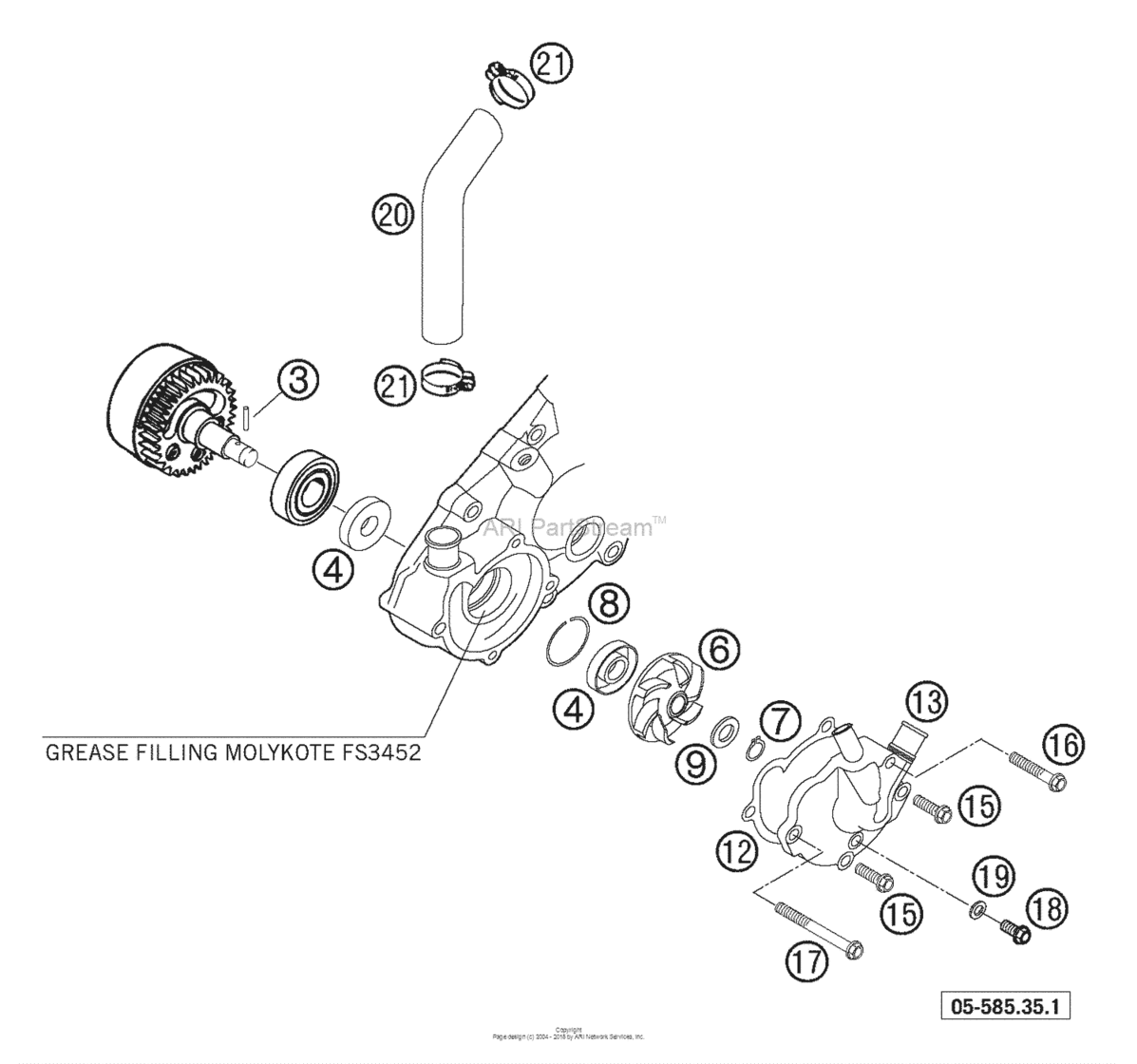

Water Pump Diagram KTM 450 450 Rallye
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 Rallye
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
0402031780 Needle rol.din5402 nrb 3x17,8DEAERATE FOR FRONT PIPE |
0402031780 |
US $1.29 |
||
|
4
|
4
0760123070
Shaft Seal Ring 12X30X7 2001
DEAERATE FOR FRONT PIPE |
0760123070 |
— | ||
|
6
|
6
58535055100
Water Pump Wheel 04
DEAERATE FOR FRONT PIPE |
58535055100 |
— | ||
|
7
|
7
0471100011
Circlip din0471-10x1
DEAERATE FOR FRONT PIPE |
0471100011 |
— | ||
|
8
|
8
0472030012 Circlip din0472-30x1,2DEAERATE FOR FRONT PIPE |
0472030012 |
US $3.16 |
||
|
9
|
9
58535057000
Washer 10X16X1 A2 (Niro) 04
DEAERATE FOR FRONT PIPE |
58535057000 |
— | ||
|
12
|
12
58535053000 Water pump cover gasket 2001DEAERATE FOR FRONT PIPE |
58535053000 |
US $3.71 |
||
|
13
|
13
58535052144
Water Pump Cover Cpl. Sp 04
DEAERATE FOR FRONT PIPE |
58535052144 |
— | ||
|
15
|
15
0015060203
Hh Collar Screw M 6X20 Ws=8
DEAERATE FOR FRONT PIPE |
0015060203 |
— | ||
| replacement | |||||
|
15
|
15
0025060206 Hh collar screw m6x20 tx30DEAERATE FOR FRONT PIPE |
0025060206 |
US $1.97 |
||
|
16
|
16
0015060353
Hh collar screw m 6x35 ws=8
DEAERATE FOR FRONT PIPE |
0015060353 |
— | ||
| replacement | |||||
|
16
|
16
0025060356 Hh collar screw m6x35 tx30DEAERATE FOR FRONT PIPE |
0025060356 |
US $6.15 |
||
|
17
|
17
0015060603
Hh collar screw m 6x60 ws=8
DEAERATE FOR FRONT PIPE |
0015060603 |
— | ||
| replacement | |||||
|
17
|
17
0025060606 Hh collar screw m6x60 tx30DEAERATE FOR FRONT PIPE |
0025060606 |
US $1.73 |
||
|
18
|
18
0015060103
Hh collar screw m 6x10 ws=8
DEAERATE FOR FRONT PIPE |
0015060103 |
— | ||
| replacement | |||||
|
18
|
18
0025060106 Hh collar screw m6x10 tx30DEAERATE FOR FRONT PIPE |
0025060106 |
US $1.58 |
||
|
19
|
19
58036065100 Cu-seal ring 6 x 10 x 2DEAERATE FOR FRONT PIPE |
58036065100 |
US $0.90 |
||
|
20
|
20
58535020001
Preformed H. 18X25 Wapu-Cyl.01
DEAERATE FOR FRONT PIPE |
58535020001 |
— | ||
|
21
|
21
10001020000 Hose Clamp 18-29DEAERATE FOR FRONT PIPE |
10001020000 |
US $4.71 |
||
