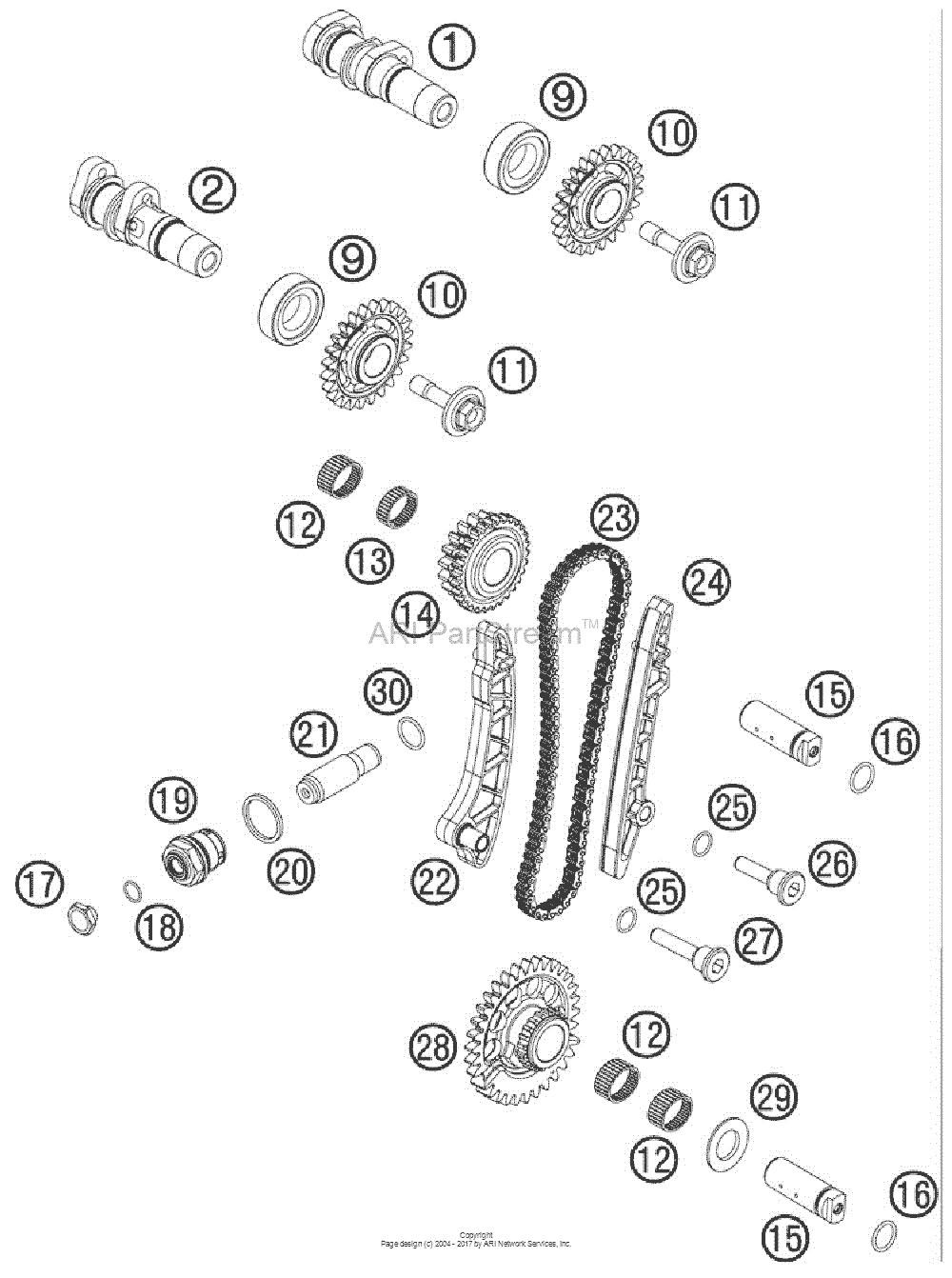

Timing Drive Diagram KTM 450 450 SX-F
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 SX-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77336009300 Camshaft intake10.9 |
77336009300 |
US $210.77 |
||
|
2
|
2
77336010444 Camshaft exhaust cpl.10.9 |
77336010444 |
US $366.91 |
||
|
9
|
9
0402174012 Cyl.roll bearing rnu203etvp210.9 |
0402174012 |
US $52.46 |
||
|
10
|
10
77336011000 Camshaft gear 0707 |
77336011000 |
US $76.70 |
||
|
11
|
11
77336076100 Screw mw m10-1,0x3807 |
77336076100 |
US $5.42 |
||
|
12
|
12
0405182213 Needle bear k 18x22x1307 |
0405182213 |
US $8.35 |
||
|
13
|
13
0405182210 Needle Bearing K 18X22X10 0202 |
0405182210 |
US $8.36 |
||
|
14
|
14
77336070177 Double gear w.cpl. z18/z30 0707 |
77336070177 |
US $97.19 |
||
|
15
|
15
77336075100 Axle for timing valve 0606 |
77336075100 |
US $25.06 |
||
|
16
|
16
0770015018 O-ring 15,00x1,8006 |
0770015018 |
US $2.60 |
||
|
17
|
17
77336008010 Holding bolt06 |
77336008010 |
US $9.01 |
||
|
18
|
18
0770010010 O-ring 10,00x1,00 nbr 70 sh06 |
0770010010 |
US $2.24 |
||
|
19
|
19
77336008000 Holding bolt m24x1,506 |
77336008000 |
US $17.48 |
||
|
20
|
20
0603242920 Cu seal-ring din7603 a24x29x206 |
0603242920 |
US $2.13 |
||
|
21
|
21
77036003000 Chain adjuster hyd. 0505 |
77036003000 |
US $95.13 |
||
|
22
|
22
77336002177 Tensioner rail cpl. 0707 |
77336002177 |
US $19.43 |
||
|
23
|
23
77336013100 Timing chain 0707 |
77336013100 |
US $80.80 |
||
|
24
|
24
77336001100 Guide rail 0707 |
77336001100 |
US $6.39 |
||
|
25
|
25
0770012015 O-ring 12,00x1,50 nbr07 |
0770012015 |
US $0.36 |
||
|
26
|
26
77336091000 Bushing screw07 |
77336091000 |
US $15.57 |
||
|
27
|
27
77336091100 Bushing screw07 |
77336091100 |
US $16.88 |
||
|
28
|
28
77330057200 Balancer gear07 |
77330057200 |
US $112.47 |
||
|
29
|
29
77330058000 Stop disc 18/32/1,4/2,707 |
77330058000 |
US $4.78 |
||
|
30
|
30
0770180020 O-ring 18,00x2,00 nbr 7070 |
0770180020 |
US $2.64 |
