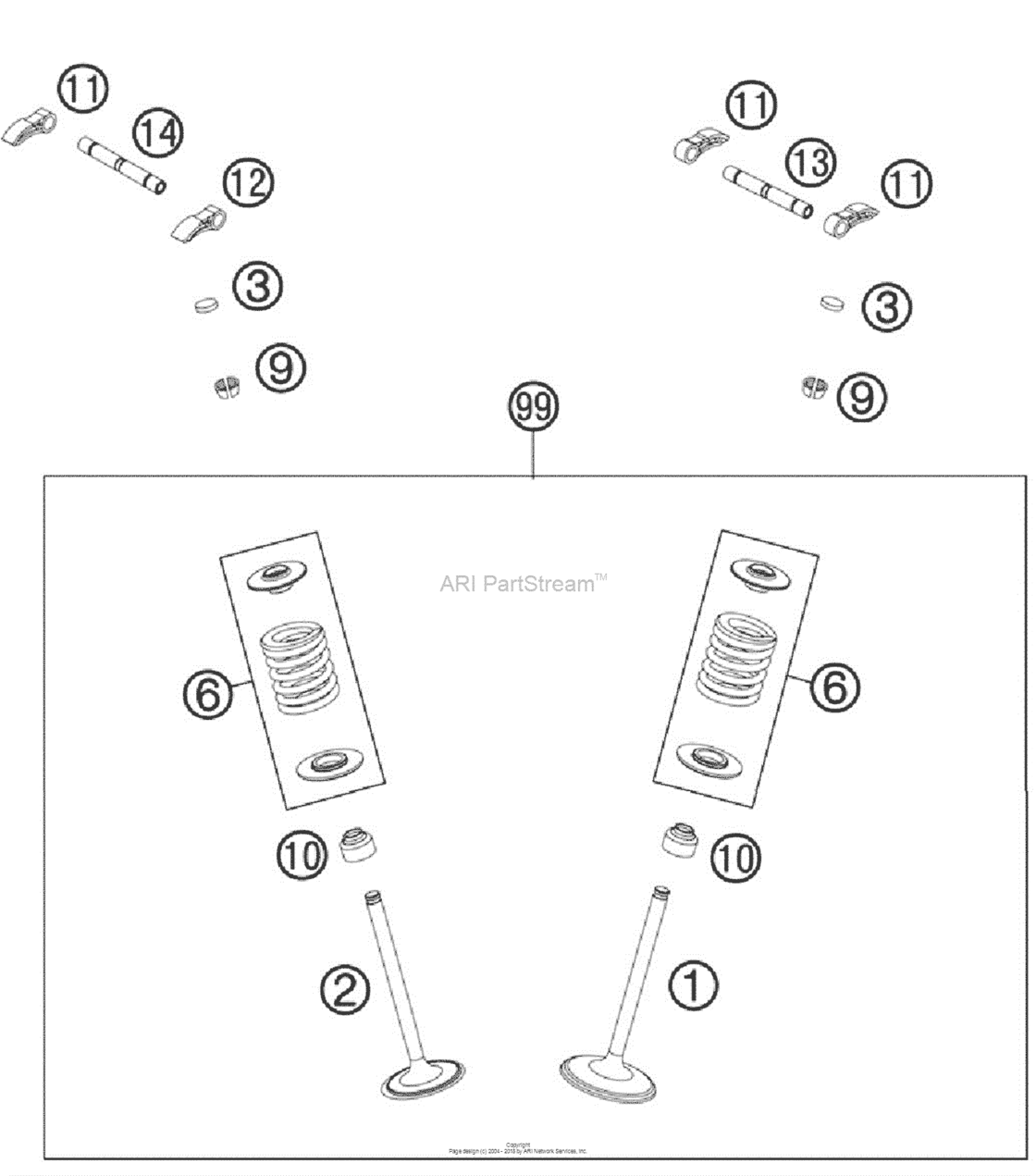

Valve Drive Diagram KTM 450 450 SX-F
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 SX-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77336030300 Intake Valve(As required) |
77336030300 |
US $151.90 |
||
|
2
|
2
77336031300 Exhaust Valve(As required) |
77336031300 |
US $138.38 |
||
|
3
|
3
77036035172 Shim d=8,9/1,72(As required) |
77036035172 |
US $5.71 |
||
|
3
|
3
77036035176 Shim d=8,9/1,76(As required) |
77036035176 |
US $5.71 |
||
|
3
|
3
77036035180 Shim d=8,9/1,80(As required) |
77036035180 |
US $5.71 |
||
|
3
|
3
77036035184 Shim d=8,9/1,84(As required) |
77036035184 |
US $5.71 |
||
|
3
|
3
77036035188 Shim d=8,9/1,88(As required) |
77036035188 |
US $5.71 |
||
|
3
|
3
77036035192 Shim d=8,9/1,92(As required) |
77036035192 |
US $5.71 |
||
|
3
|
3
77036035196 Shim d=8,9/1,96(As required) |
77036035196 |
US $5.71 |
||
|
3
|
3
77036035200 Shim d=8,9/2,00(As required) |
77036035200 |
US $5.71 |
||
|
3
|
3
77036035204 Shim d=8,9/2,04(As required) |
77036035204 |
US $5.71 |
||
|
3
|
3
77036035208 Shim d=8,9/2,08(As required) |
77036035208 |
US $5.71 |
||
|
3
|
3
77036035212 Shim d=8,9/2,12(As required) |
77036035212 |
US $5.71 |
||
|
3
|
3
77036035216 Shim d=8,9/2,16(As required) |
77036035216 |
US $5.71 |
||
|
3
|
3
77036035220 Shim d=8,9/2,20(As required) |
77036035220 |
US $5.71 |
||
|
3
|
3
77036035224 Shim d=8,9/2,24(As required) |
77036035224 |
US $5.71 |
||
|
3
|
3
77036035228 Shim d=8,9/2,28(As required) |
77036035228 |
US $5.71 |
||
|
3
|
3
77036035232 Shim d=8,9/2,32(As required) |
77036035232 |
US $5.71 |
||
|
3
|
3
77036035236 Shim d=8,9/2,36(As required) |
77036035236 |
US $5.71 |
||
|
3
|
3
77036035240 Shim d=8,9/2,40(As required) |
77036035240 |
US $5.71 |
||
|
3
|
3
77036035244 Shim d=8,9/2,44(As required) |
77036035244 |
US $5.71 |
||
|
3
|
3
77036035248 Shim d=8,9/2,48(As required) |
77036035248 |
US $5.71 |
||
|
3
|
3
77036035252 Shim d=8,9/2,52(As required) |
77036035252 |
US $5.71 |
||
|
3
|
3
77036035256 Shim d=8,9/2,56(As required) |
77036035256 |
US $5.71 |
||
|
3
|
3
77036035260 Shim d=8,9/2,60(As required) |
77036035260 |
US $5.71 |
||
|
6
|
6
77336128044 Valve spring kit 0909 |
77336128044 |
US $45.27 |
||
|
9
|
9
77336033100 Valve collet 0707 |
77336033100 |
US $2.09 |
||
|
10
|
10
59036027000 Valve-stem sealing racing07 |
59036027000 |
US $7.70 |
||
|
11
|
11
77336060100 Valve lever07 |
77336060100 |
US $130.22 |
||
|
12
|
12
77336160000 Valve lever07 |
77336160000 |
US $111.01 |
||
|
13
|
13
77336056000 Intake valve lever shaft07 |
77336056000 |
US $21.59 |
||
|
14
|
14
77336057000 Exhaust valve lever shaft07 |
77336057000 |
US $17.65 |
||
|
99
|
99
77336030210 Valve kit07 |
77336030210 |
US $624.22 |
