Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 77336009100 Camshaft Intakt 07	77336009100	—
	replacement
1	1 77336009300 Camshaft intake 07	77336009300	US $210.77
2	2 77336010344 Camshaft Exhaust Cpl 08	77336010344	—
	replacement
2	2 77336010444 Camshaft exhaust cpl. 08	77336010444	US $366.91
9	9 0402174012 Cyl.roll bearing rnu203etvp2 08	0402174012	US $52.46
10	10 77336011000 Camshaft gear 07 07	77336011000	US $76.70
11	11 77336076000 Collar screw m10x1x39 07	77336076000	US $19.65
12	12 0405182213 Needle bear k 18x22x13 07	0405182213	US $8.35
13	13 0405182210 Needle Bearing K 18X22X10 02 02	0405182210	US $8.36
14	14 77336070177 Double gear w.cpl. z18/z30 07 07	77336070177	US $97.19
15	15 77336075000 Axle For Timing Valve 06	77336075000	—
	replacement
15	15 77336075100 Axle for timing valve 06 06	77336075100	US $25.06
16	16 0770015018 O-ring 15,00x1,80 06	0770015018	US $2.60
17	17 77336008010 Holding bolt 06	77336008010	US $9.01
18	18 0770010010 O-ring 10,00x1,00 nbr 70 sh 06	0770010010	US $2.24
19	19 77336008000 Holding bolt m24x1,5 06	77336008000	US $17.48
20	20 0603242920 Cu seal-ring din7603 a24x29x2 06	0603242920	US $2.13
21	21 77036003000 Chain adjuster hyd. 05 05	77036003000	US $95.13
22	22 77336002177 Tensioner rail cpl. 07 07	77336002177	US $19.43
23	23 77336013100 Timing chain 07 07	77336013100	US $80.80
24	24 77336001100 Guide rail 07 07	77336001100	US $6.39
25	25 0770012015 O-ring 12,00x1,50 nbr 07	0770012015	US $0.36
26	26 77336091000 Bushing screw 07	77336091000	US $15.57
27	27 77336091100 Bushing screw 07	77336091100	US $16.88
28	28 77330057200 Balancer gear 07	77330057200	US $112.47
29	29 77330058000 Stop disc 18/32/1,4/2,7 07	77330058000	US $4.78
30	30 0770180020 O-ring 18,00x2,00 nbr 70 07	0770180020	US $2.64

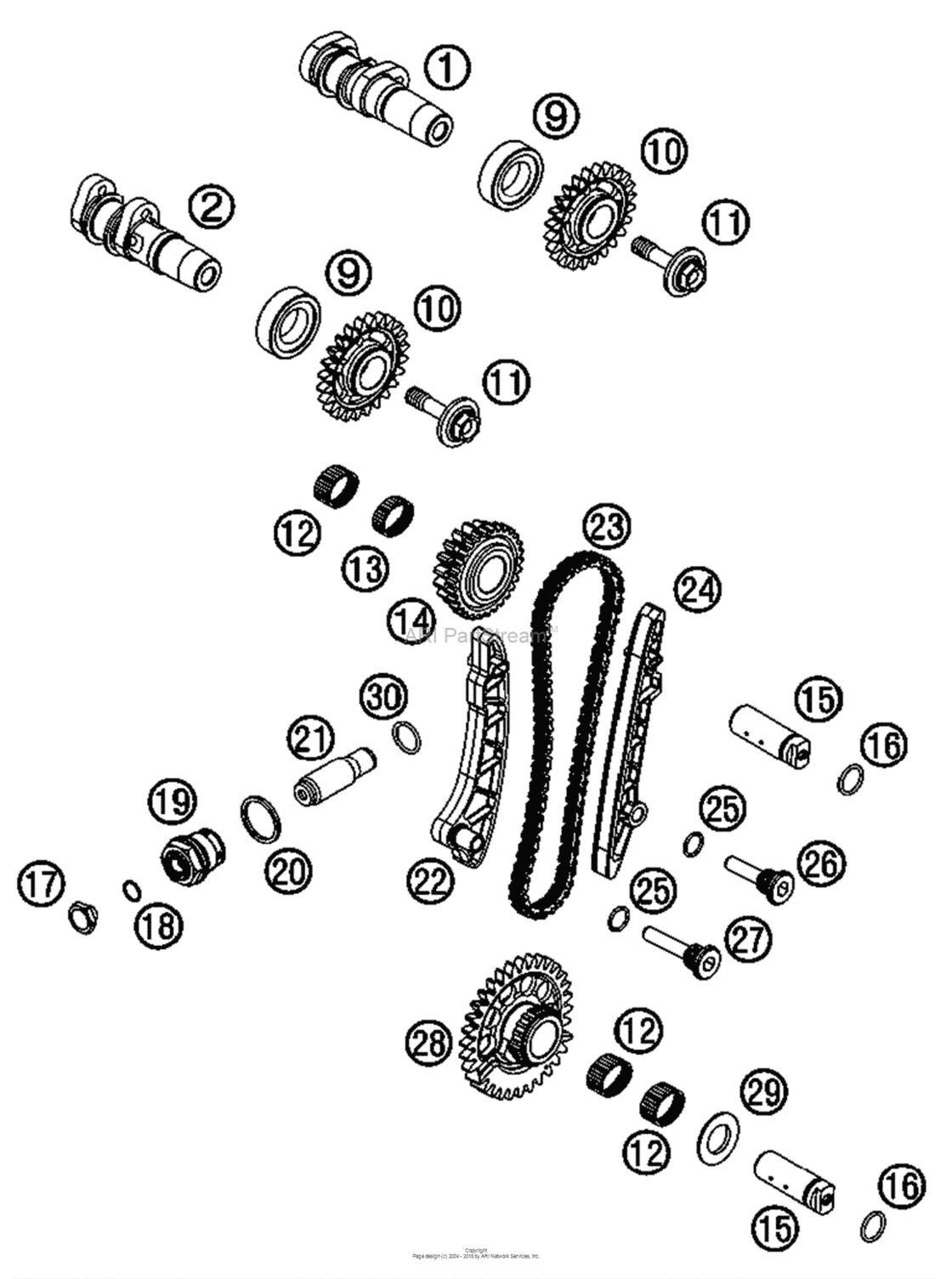

Timing Valve Diagram KTM 450 450 SMR US/EU 18094267-940080

Timing Valve Diagram KTM 450 450 SMR US/EU 18094267-940080
