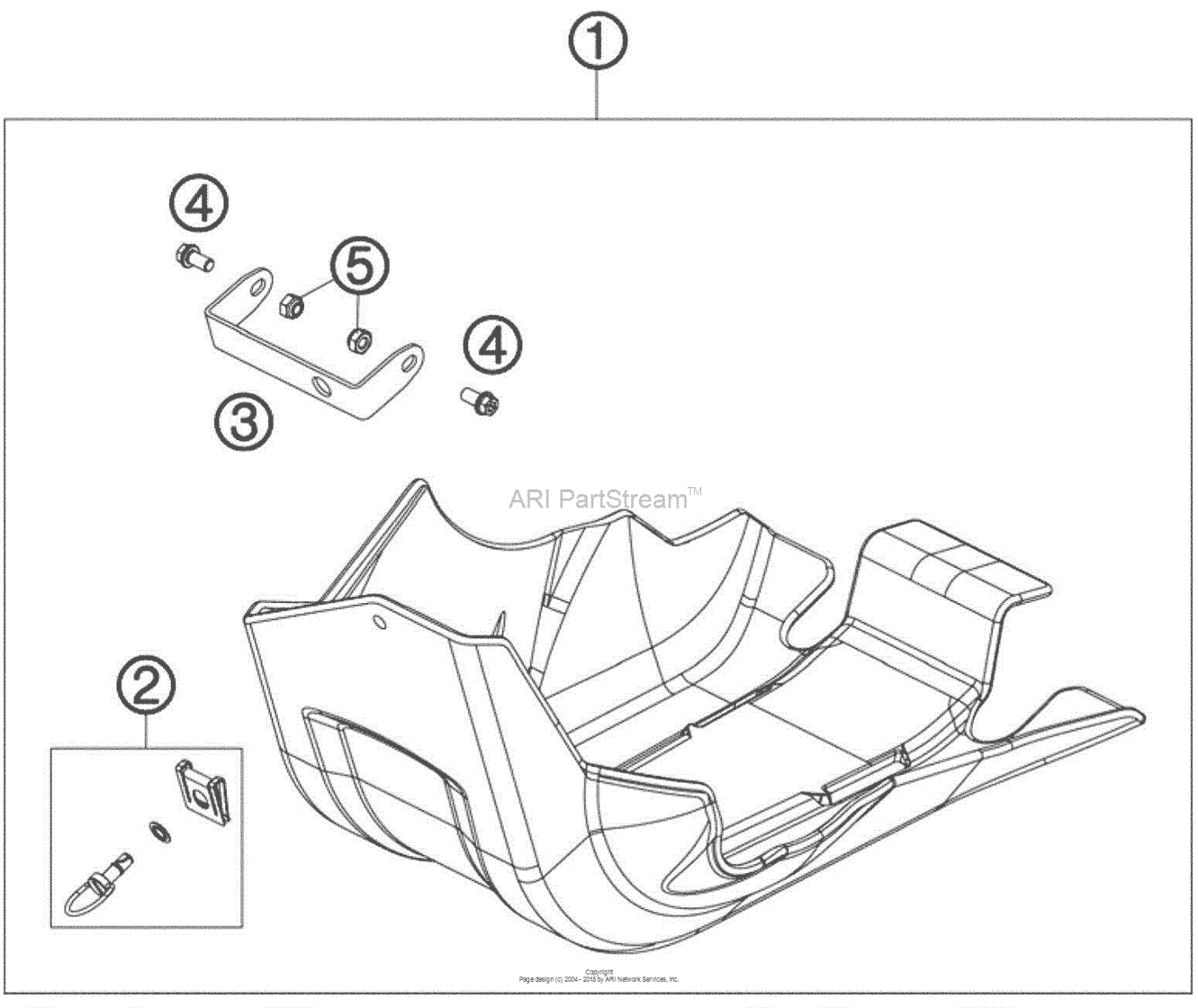

Engine Guard Diagram KTM 450 450 XC-W SD
- Year
- 2010
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 XC-W SD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78003190000 Skid plate plastic10 |
78003190000 |
US $133.26 |
||
|
2
|
2
59003090350 Quick release 0303 |
59003090350 |
US $11.27 |
||
|
3
|
3
78003190010
Bracket
03 |
78003190010 |
— | ||
| replacement | |||||
|
3
|
3
78003190180 MOUNTING KIT CPL.03 |
78003190180 |
US $39.54 |
||
|
4
|
4
0025060126 Hh collar screw m6x12 tx30TX30 |
0025060126 |
US $3.96 |
||
|
5
|
5
0985060003 Self Lock. Nut Din0985-M 6TX30 |
0985060003 |
US $2.60 |
||
