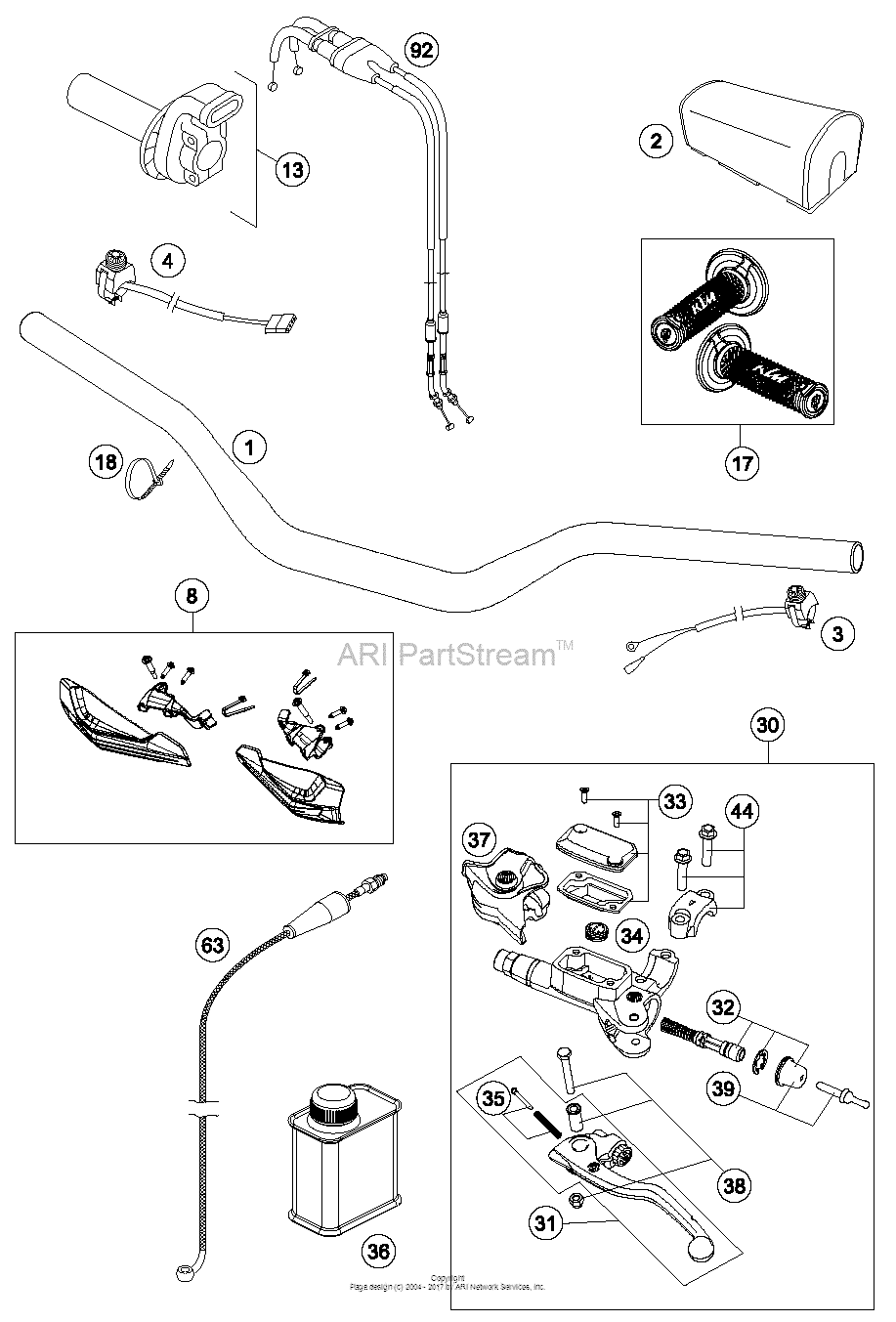

Handlebar, Controls Diagram KTM 450 450 XC-F

Year
2015
Sales region
US/EU
Engine Capacity
450
Model
450 XC-F

Difficulties in parts search?

Parts list
Handlebar, Controls

Difficulties in parts search?

Handlebar, Controls
Description OEM Part # Price
1
1

7770200110030

Handlebar Black

2000

7770200110030

US $160.77

2
2

SXS07250800

Fatbar pad phds

2000

SXS07250800

US $37.23

3
3

50311089200

Short Circuit Button 02

02

50311089200

US $50.97

4
4

78111074000

Starter Button Grey 13

13

78111074000

US $58.31

8
8
7770207900004
Handguards Cpl. L+R Orange

13

7770207900004

replacement
8
8

7770217900004

Handguards Cpl. L+R Orange

13

7770217900004

US $56.34

13
13

78102010000

Throttle Grip Cpl

13

78102010000

US $71.72

17
17

78102021000

Grip Set

13

78102021000

US $25.62

18
18

44011076200

Cable tie 200/3,6mm black

As Required

44011076200

US $0.39

18
18

44011076140

Cable tie 140/2,5mm black

As Required

44011076140

US $0.29

30
30

54802030144

Master Cylinder Cpl

As Required

54802030144

US $214.10

31
31

54802031000

Clutch lever cpl. brembo 06

06

54802031000

US $45.82

32
32

54802032000

Rep. kit piston 06

06

54802032000

US $43.21

33
33

5480200310030

Cover Hyd. Clutch Cpl. 2014

2014

5480200310030

US $40.39

34
34

54802051000

Valve

2014

54802051000

US $16.88

35
35

54802052000

Bolt kpl.

2014

54802052000

US $26.49

36
36

00062030000

Brake fluid dot5.1 0,25l

2014

00062030000

US $14.35

37
37

54802037000

Protection cap 06

06

54802037000

US $18.77

38
38

54802038100

Lever screw cpl. 06

06

54802038100

US $36.02

39
39

54802046000

Push rod cpl.

06

54802046000

US $20.01

44
44

54802005100

Clamp cpl. 06

06

54802005100

US $23.49

63
63

54832063000

Clutch pipe 06

06

54832063000

US $87.04

92
92

78102091000

Throttle Cable 4T

13

78102091000

US $73.51

replacement
92
92

78102091100

Throttle Cable 4T

13

78102091100

US $60.42

Handlebar, Controls Diagram KTM 450 450 XC-F US/EU 18095840-940157
