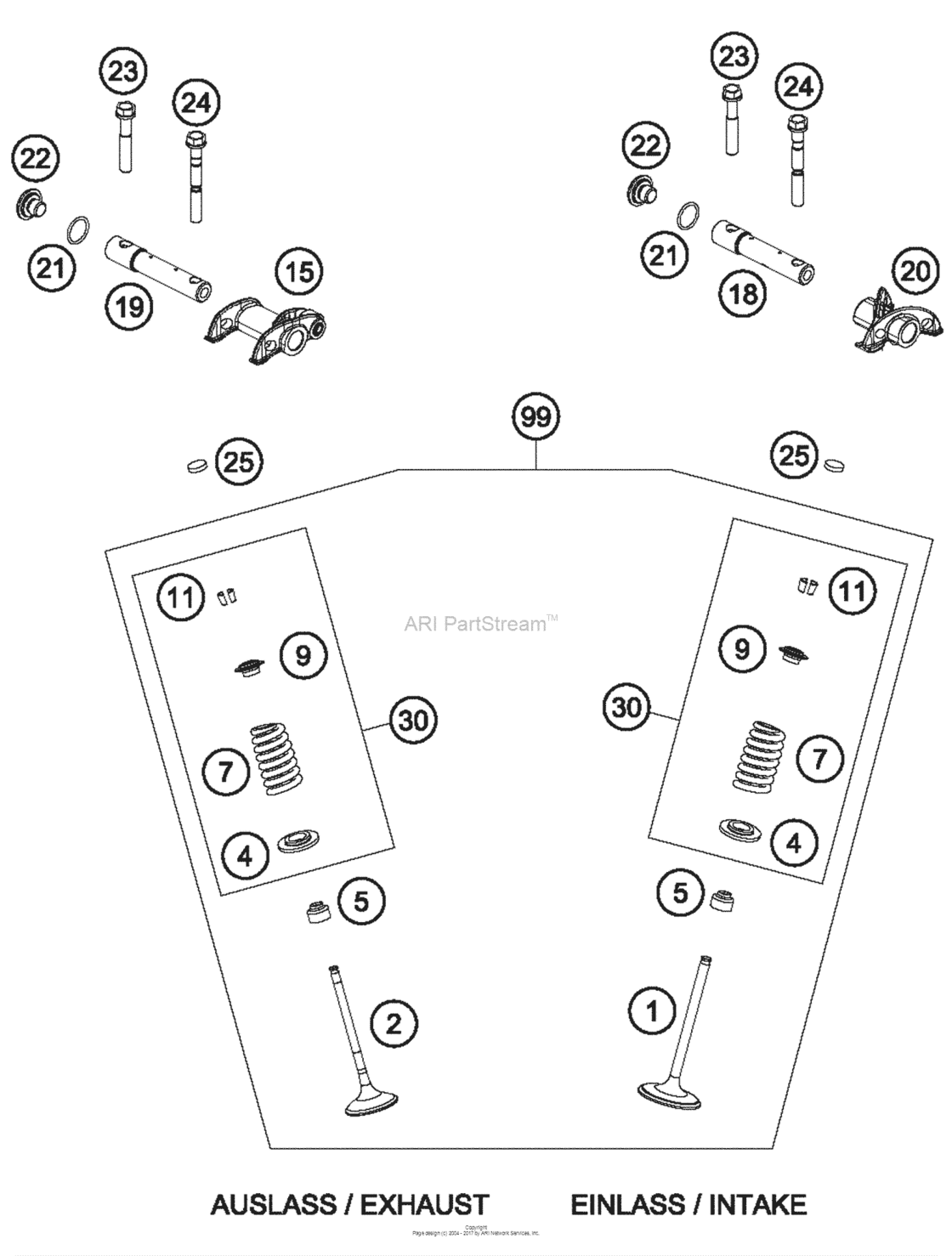

Valve Drive Diagram KTM 450 450 XC-F
- Year
- 2016
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 XC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78936030100 Intake ValveAs Required |
78936030100 |
US $190.32 |
||
|
2
|
2
78936031000 Exhaust ValveAs Required |
78936031000 |
US $206.94 |
||
|
4
|
4
78936036000 Valve Spring HolderAs Required |
78936036000 |
US $8.04 |
||
|
5
|
5
59036027000 Valve-stem sealing racingAs Required |
59036027000 |
US $7.70 |
||
|
7
|
7
78936028000 Valve SpringAs Required |
78936028000 |
US $21.76 |
||
|
9
|
9
78936032100 Valve Spring RetainerAs Required |
78936032100 |
US $26.32 |
||
|
11
|
11
77336033100 Valve collet 07As Required |
77336033100 |
US $2.09 |
||
|
15
|
15
78936061144 Rocker Arm Exhaust CplAs Required |
78936061144 |
US $239.96 |
||
|
18
|
18
79436056100 Rocker Arm Shaft IntakeAs Required |
79436056100 |
US $208.40 |
||
|
19
|
19
79436057000 Rocker Arm Shaft ExhaustAs Required |
79436057000 |
US $76.87 |
||
|
20
|
20
78936060000 Rocker Arm IntakeAs Required |
78936060000 |
US $360.76 |
||
| replacement | |||||
|
20
|
20
78936060200 ROCKER ARM INTAKEAs Required |
78936060200 |
US $360.76 |
||
|
21
|
21
0770150151 O-ring 15,00x1,50 vitonAs Required |
0770150151 |
US $2.60 |
||
|
22
|
22
79436081000 Plug M10X1,25As Required |
79436081000 |
US $5 |
||
|
23
|
23
77036080000 Special screw m7x40 ws10As Required |
77036080000 |
US $4.39 |
||
|
24
|
24
78036080000 Fit bolt m7x1x55As Required |
78036080000 |
US $5.49 |
||
|
25
|
25
77036035172 Shim d=8,9/1,72As Required |
77036035172 |
US $5.71 |
||
|
25
|
25
77036035176 Shim d=8,9/1,76As Required |
77036035176 |
US $5.71 |
||
|
25
|
25
77036035180 Shim d=8,9/1,80As Required |
77036035180 |
US $5.71 |
||
|
25
|
25
77036035184 Shim d=8,9/1,84As Required |
77036035184 |
US $5.71 |
||
|
25
|
25
77036035188 Shim d=8,9/1,88As Required |
77036035188 |
US $5.71 |
||
|
25
|
25
77036035192 Shim d=8,9/1,92As Required |
77036035192 |
US $5.71 |
||
|
25
|
25
77036035196 Shim d=8,9/1,96As Required |
77036035196 |
US $5.71 |
||
|
25
|
25
77036035200 Shim d=8,9/2,00As Required |
77036035200 |
US $5.71 |
||
|
25
|
25
77036035204 Shim d=8,9/2,04As Required |
77036035204 |
US $5.71 |
||
|
25
|
25
77036035208 Shim d=8,9/2,08As Required |
77036035208 |
US $5.71 |
||
|
25
|
25
77036035212 Shim d=8,9/2,12As Required |
77036035212 |
US $5.71 |
||
|
25
|
25
77036035216 Shim d=8,9/2,16As Required |
77036035216 |
US $5.71 |
||
|
25
|
25
77036035220 Shim d=8,9/2,20As Required |
77036035220 |
US $5.71 |
||
|
25
|
25
77036035224 Shim d=8,9/2,24As Required |
77036035224 |
US $5.71 |
||
|
25
|
25
77036035228 Shim d=8,9/2,28As Required |
77036035228 |
US $5.71 |
||
|
25
|
25
77036035232 Shim d=8,9/2,32As Required |
77036035232 |
US $5.71 |
||
|
25
|
25
77036035236 Shim d=8,9/2,36As Required |
77036035236 |
US $5.71 |
||
|
25
|
25
77036035240 Shim d=8,9/2,40As Required |
77036035240 |
US $5.71 |
||
|
25
|
25
77036035244 Shim d=8,9/2,44As Required |
77036035244 |
US $5.71 |
||
|
25
|
25
77036035248 Shim d=8,9/2,48As Required |
77036035248 |
US $5.71 |
||
|
25
|
25
77036035252 Shim d=8,9/2,52As Required |
77036035252 |
US $5.71 |
||
|
25
|
25
77036035256 Shim d=8,9/2,56As Required |
77036035256 |
US $5.71 |
||
|
25
|
25
77036035260 Shim d=8,9/2,60As Required |
77036035260 |
US $5.71 |
||
|
30
|
30
78936029144 Valve Spring Kit 450 Sx-F 16As Required |
78936029144 |
US $52.67 |
||
|
99
|
99
78936030110 Valve Kit 450 Hqv 14As Required |
78936030110 |
US $879.27 |
||
