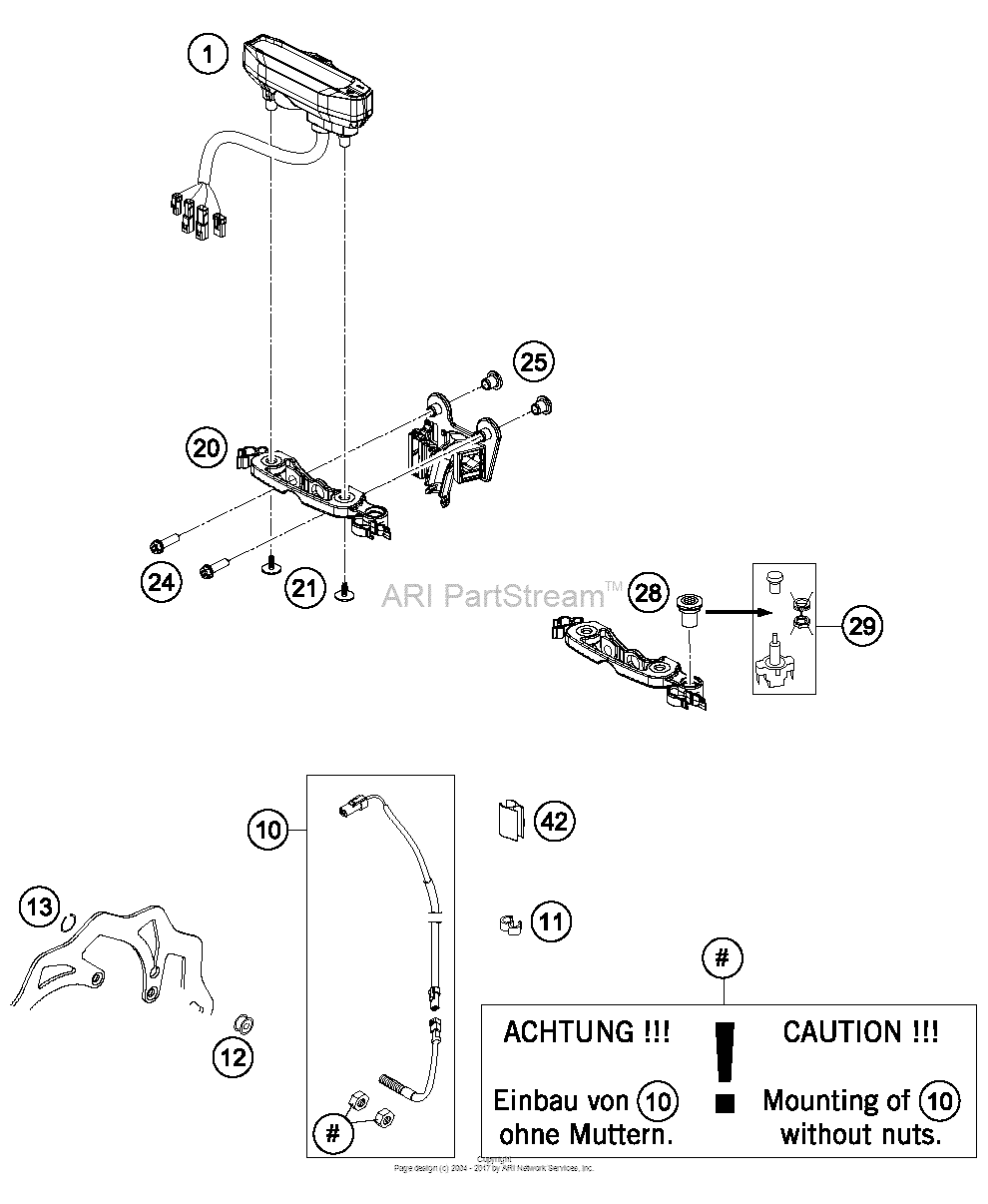

Instruments / Locksystem Diagram KTM 450 450 XC-W
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77714069200 Speedometer Digital Km/h F21In13 |
77714069200 |
US $329.14 |
||
| replacement | |||||
|
1
|
1
77714069600 SPEEDOMETER DIGITAL KM/H F21"13 |
77714069600 |
US $345.63 |
||
|
10
|
10
54814068100 Cable for digital speedom. 0606 |
54814068100 |
US $90.73 |
||
|
11
|
11
60111094000 Clamp 5/7 mm 0606 |
60111094000 |
US $3.54 |
||
|
12
|
12
54814069050 Magnet For Digital Speedom. 0303 |
54814069050 |
US $23.21 |
||
|
13
|
13
0471009104 Circlip Din0471- 9X1 Inox03 |
0471009104 |
US $2.35 |
||
|
20
|
20
77714060000 Speedometer Bracket Exc/xcw 1414 |
77714060000 |
US $15.79 |
||
|
21
|
21
0081645121 Ejot Delta Pt Screw 45X12-Z14 |
0081645121 |
US $1.17 |
||
|
24
|
24
0024060256 Hh collar screw m6x25 tx30TX30 |
0024060256 |
US $1.79 |
||
|
25
|
25
59030060050 Bushing F. Sprocket Cover RacTX30 |
59030060050 |
US $2.09 |
||
|
28
|
28
54814060050 Spec. nut f. pull switch ws=17TX30 |
54814060050 |
US $4.81 |
||
|
29
|
29
55011599000 Pull switch looseTX30 |
55011599000 |
US $19.47 |
||
|
42
|
42
54813026000 Cable support 10/6mm 0606 |
54813026000 |
US $2.35 |
||
