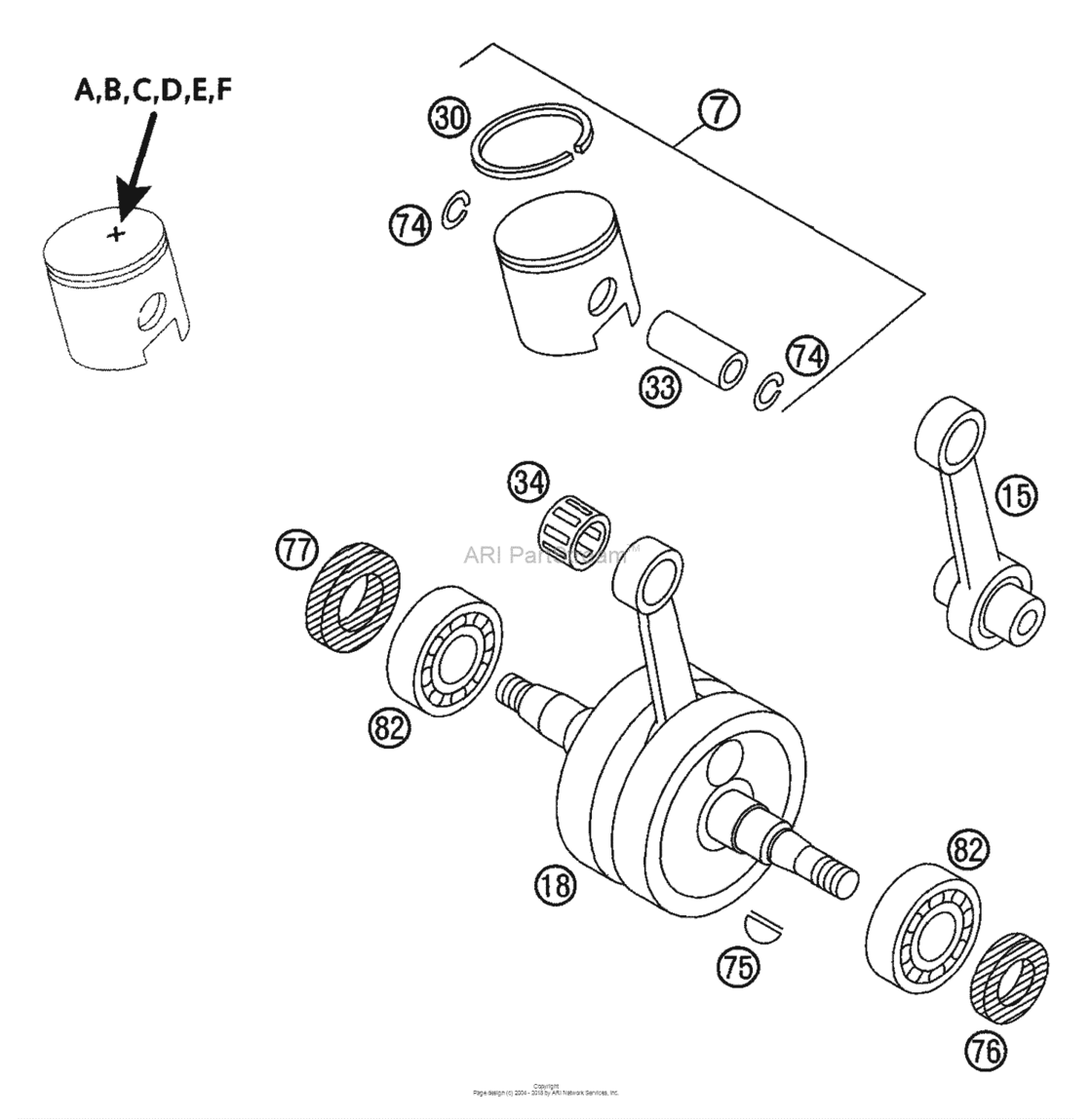

Crankshaft, Piston Diagram KTM 50 50 Junior Adventure
- Year
- 2002
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 Junior Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
7
|
7
45130007000A Piston cpl.39,5 "ab" 50 lc 01(As Required) |
45130007000A |
US $161.50 |
||
|
7
|
7
45130007000B
Piston Cpl.39,5 In.bin. 50 Lc 2001
(As Required) |
45130007000B |
— | ||
| replacement | |||||
|
7
|
7
45130007000A Piston cpl.39,5 "ab" 50 lc 01(As Required) |
45130007000A |
US $161.50 |
||
|
7
|
7
45130007000C
Piston cpl.39,5 "cd" 50 lc 01
(As Required) |
45130007000C |
— | ||
|
7
|
7
45130007000D
Piston cpl.39,5 "d" 50 lc 2001
(As Required) |
45130007000D |
— | ||
|
7
|
7
45130007000E
Piston cpl.39,5 "ef" 50 lc 01
(As Required) |
45130007000E |
— | ||
|
7
|
7
45130007000F
Piston cpl.39,5 "f" 50 lc 2001
(As Required) |
45130007000F |
— | ||
| replacement | |||||
|
7
|
7
45130007000E
Piston cpl.39,5 "ef" 50 lc 01
(As Required) |
45130007000E |
— | ||
|
15
|
15
45130515000
Con.rod repair set 50 ac 2002
(As Required) |
45130515000 |
— | ||
| replacement | |||||
|
15
|
15
45130015000 Con.rod repairs. 50ccm lc 2001(As Required) |
45130015000 |
US $131.50 |
||
|
18
|
18
45130518000
Crankshaft 50 ac 2002
(As Required) |
45130518000 |
— | ||
| replacement | |||||
|
18
|
18
45130018100 Crankshaft 50 lc 2004(As Required) |
45130018100 |
US $365.62 |
||
|
30
|
30
45130030000
Piston ring 50ccm lc 2001
(As Required) |
45130030000 |
— | ||
| replacement | |||||
|
30
|
30
45230030000 Pistonring 09(As Required) |
45230030000 |
US $60.64 |
||
|
33
|
33
45130033000
Piston pin 50ccm lc 2001
(As Required) |
45130033000 |
— | ||
| replacement | |||||
|
33
|
33
45230033000 Piston bolt 09(As Required) |
45230033000 |
US $7.79 |
||
|
34
|
34
45130034000 Needle bear.pistonpin 12x15x15(As Required) |
45130034000 |
US $13.75 |
||
|
74
|
74
46030074000
Circlip 09
(As Required) |
46030074000 |
— | ||
| replacement | |||||
|
74
|
74
45230074000 Circlip 09(As Required) |
45230074000 |
US $2.60 |
||
|
75
|
75
45130075000 Woodruff key 2,5x3,7(As Required) |
45130075000 |
US $1.96 |
||
|
76
|
76
45130076000 Oil seal ring 15x24x7(As Required) |
45130076000 |
US $21.78 |
||
|
77
|
77
45130077000 Oil seal ring 17x35x7(As Required) |
45130077000 |
US $25.91 |
||
|
82
|
82
45130082100 Ball bearing 17x40x12 2002(As Required) |
45130082100 |
US $20.47 |
||
