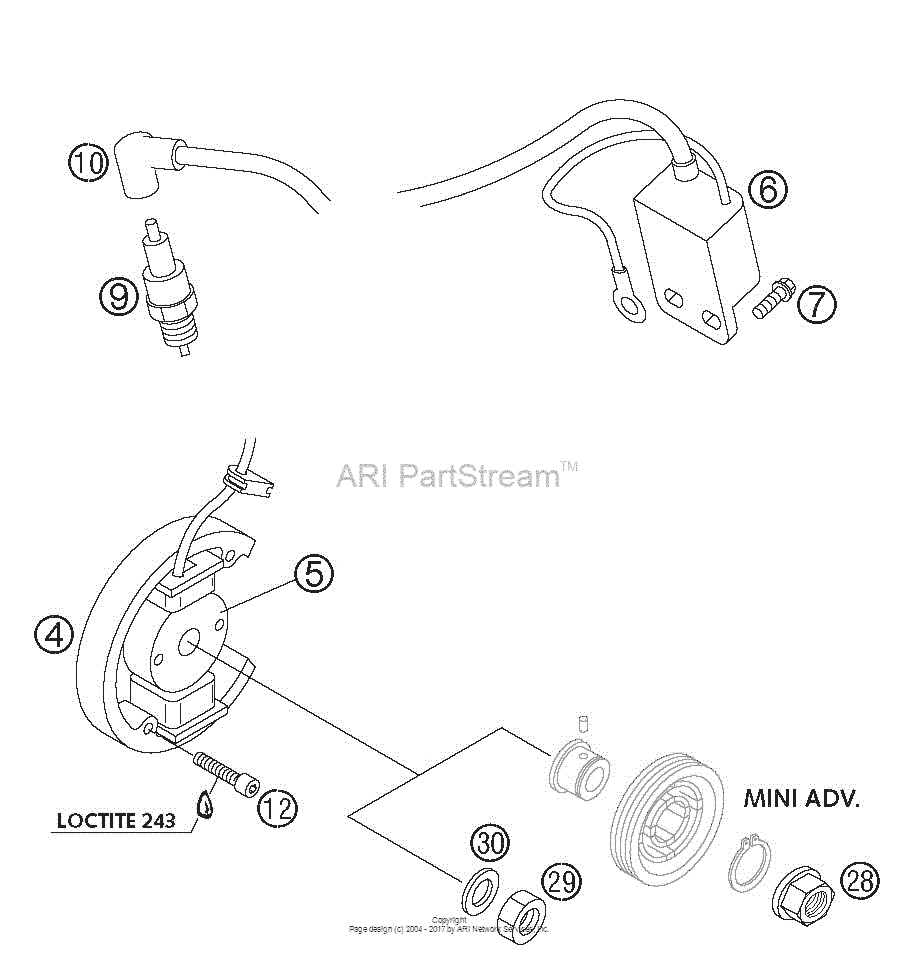

Ignition System Diagram KTM 50 50 Junior Adventure
- Year
- 2003
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 Junior Adventure
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
4
|
4
45139004000 Flywheel stator 50ccm lc 20012001 |
45139004000 |
US $121.50 |
||
|
5
|
5
45139005000 Flywheel rotor 50ccm lc 20012001 |
45139005000 |
US $94.95 |
||
|
6
|
6
45139006000 Ignition coil 50ccm lc 20012001 |
45139006000 |
US $138.43 |
||
|
7
|
7
0015060123
Hh Collar Screw M 6X12 Ws=8
WS=8 |
0015060123 |
— | ||
| replacement | |||||
|
7
|
7
0025060126 Hh collar screw m6x12 tx30WS=8 |
0025060126 |
US $3.96 |
||
|
9
|
9
54331093410 Spark plug ngk br8ecmWS=8 |
54331093410 |
US $16.85 |
||
|
10
|
10
54531010000 Spark Plug ProtectNGK |
54531010000 |
US $34.54 |
||
| replacement | |||||
|
10
|
10
47039090000 Spark plug cap ngk reinforc.04NGK |
47039090000 |
US $24.26 |
||
|
12
|
12
0912050253 Ah screw din0912-m 5x25NGK |
0912050253 |
US $0.61 |
||
|
28
|
28
58414030000 Hh collar nut m10x1,25 ws=13WS=13 |
58414030000 |
US $2.60 |
||
|
29
|
29
45130028000 Special nut m10x1,25x6WS=13 |
45130028000 |
US $0.77 |
||
|
30
|
30
45132020000 Washer 10,4x16,8x0,4WS=13 |
45132020000 |
US $3.83 |
||
