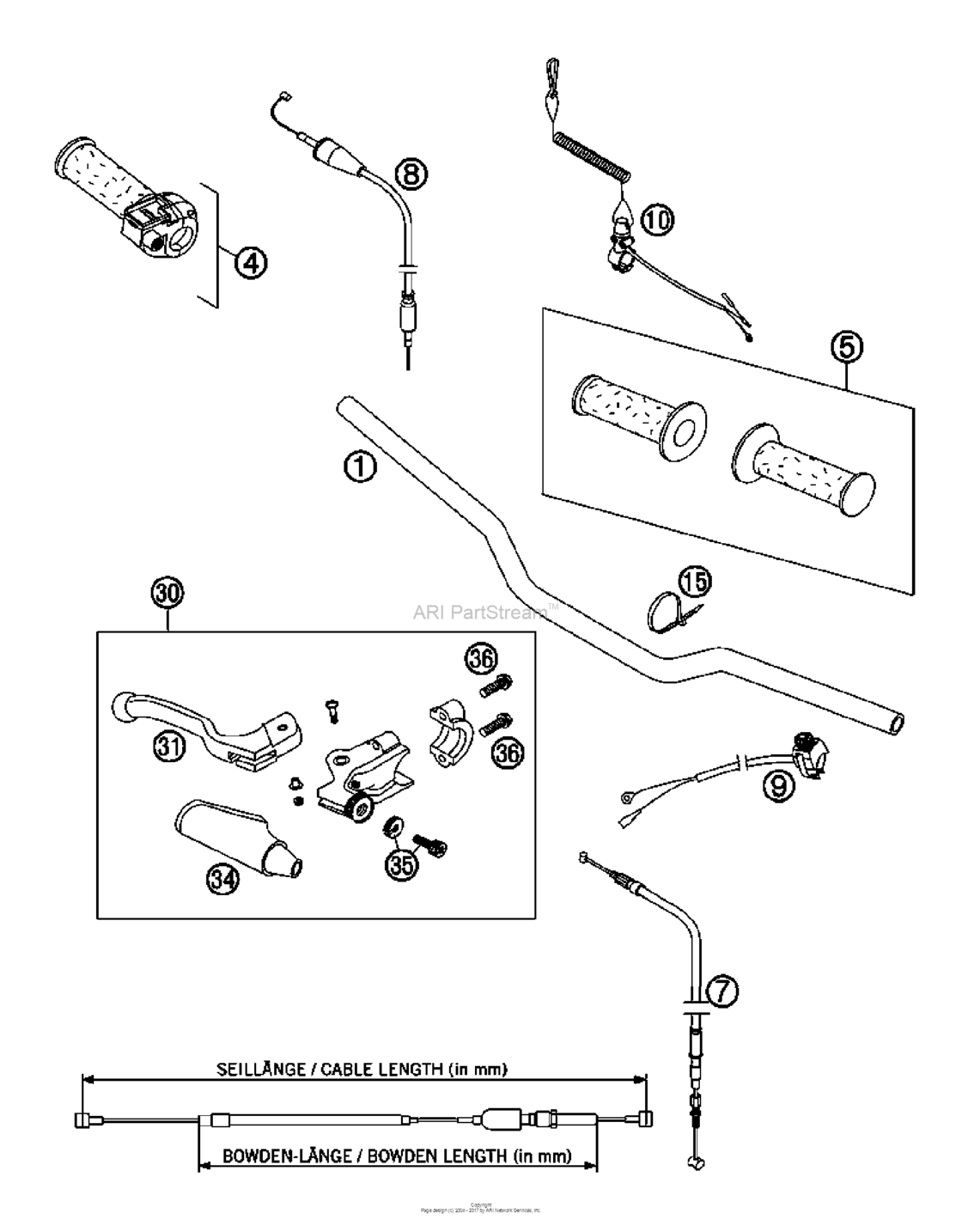

Handlebar, Controls Diagram KTM 50 50 Mini Adventure
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 Mini Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45102001000 Handlebar 50 ac+lc 20052005 |
45102001000 |
US $42.01 |
||
|
4
|
4
45002010000 Twist grip cpl. 50 sxr2005 |
45002010000 |
US $55.40 |
||
|
5
|
5
45002021000 Gripp set2005 |
45002021000 |
US $23.31 |
||
|
7
|
7
45113010000 Brake cable front 898/772 0101 |
45113010000 |
US $37.86 |
||
|
7
|
7
45113070000 Brake cable rear 1187/1052 0101 |
45113070000 |
US $37.60 |
||
|
8
|
8
45102091100 Throttle cable jun.762/644 0202 |
45102091100 |
US $18.68 |
||
|
9
|
9
50311089200 Short Circuit Button 0202 |
50311089200 |
US $50.97 |
||
|
10
|
10
45011089044
S.circuit button w. rip cord
02 |
45011089044 |
— | ||
|
15
|
15
44011076100 Cable tie 100/2,5mm black02 |
44011076100 |
US $0.39 |
||
| replacement | |||||
|
15
|
15
44011076140 Cable tie 140/2,5mm black02 |
44011076140 |
US $0.29 |
||
|
15
|
15
44011076200 Cable tie 200/3,6mm black02 |
44011076200 |
US $0.39 |
||
|
30
|
30
45113001044 Hand brake lever cpl. r/s 20012001 |
45113001044 |
US $34.36 |
||
|
30
|
30
46002040100 Clutch lever cpl. 60/65 sx '99'99 |
46002040100 |
US $45.82 |
||
|
31
|
31
45113042000 Hand brake lever loose 20012001 |
45113042000 |
US $28.63 |
||
|
31
|
31
46002042100 Clutch lever loose 60/65sx '99'99 |
46002042100 |
US $28.63 |
||
|
34
|
34
54802051000 Valve'99 |
54802051000 |
US $16.88 |
||
|
35
|
35
46002043100 Adjust screw clutch lever 20002000 |
46002043100 |
US $4.42 |
||
|
36
|
36
0015060203
Hh Collar Screw M 6X20 Ws=8
WS=8 |
0015060203 |
— | ||
| replacement | |||||
|
36
|
36
0025060206 Hh collar screw m6x20 tx30WS=8 |
0025060206 |
US $1.97 |
||
