	Description	OEM Part #	Price
1	1 45105008000 Exhaust pipe 50 adventure 2002 2002	45105008000	US $198.27
2	2 45105079100 Main Silencer 50 Sx Junior 06 2002	45105079100	—
	replacement
2	2 45105079300 Main silencer 50 sx junior 06 2002	45105079300	US $110.87
2	2 45105079000 Silencer 2001	45105079000	—
	replacement
2	2 45105079400 Silencer 2001	45105079400	US $176.38
4	4 50305016000 Ten.spring L=62Mm Ey.moveable 2001	50305016000	—
	replacement
4	4 A46005016000 TEN.SPRING L=62MM EY.MOVEABLE 2001	A46005016000	US $5.88
5	5 0770320030 O-ring 32,00x3,00 viton 2001	0770320030	US $5.27
8	8 45105079056 Rockwool prefomed 50 2002 2002	45105079056	US $35.75
9	9 45105057000 Exhaust rubber mini 2002 2002	45105057000	US $27.80
12	12 45105083000 Exhaust throttle cpl. mini 02 02	45105083000	US $10
20	20 54603048100 Range Change Metal Nut M6 02	54603048100	US $5.27
21	21 50305012000 Swingelement For Exhaust Pipe 02	50305012000	US $25.65
23	23 0015060123 Hh Collar Screw M 6X12 Ws=8 WS=8	0015060123	—
	replacement
23	23 0025060126 Hh collar screw m6x12 tx30 WS=8	0025060126	US $3.96
24	24 0014060153 Hh Collar Screw M6X15 Tx30 WS=8	0014060153	—
	replacement
24	24 0024060156 Hh collar screw m6x15 tx30 WS=8	0024060156	US $3.96
25	25 0015060303 Hh Collar Screw M6X30 Tx30 WS=8	0015060303	—
	replacement
25	25 0025060306 Hh collar screw m6x30 tx30 WS=8	0025060306	US $3.96
26	26 54605069000 Bushing 7,5x12x28x7,8 '96 96	54605069000	—
	replacement
26	26 77205169000 Bushing 7.5X12X28X8.3 11 96	77205169000	US $7.82
27	27 54605068000 Exhaust bracket rubber black 96	54605068000	—
	replacement
27	27 77205068000 Damp. Compon. Black 96	77205068000	US $8.43

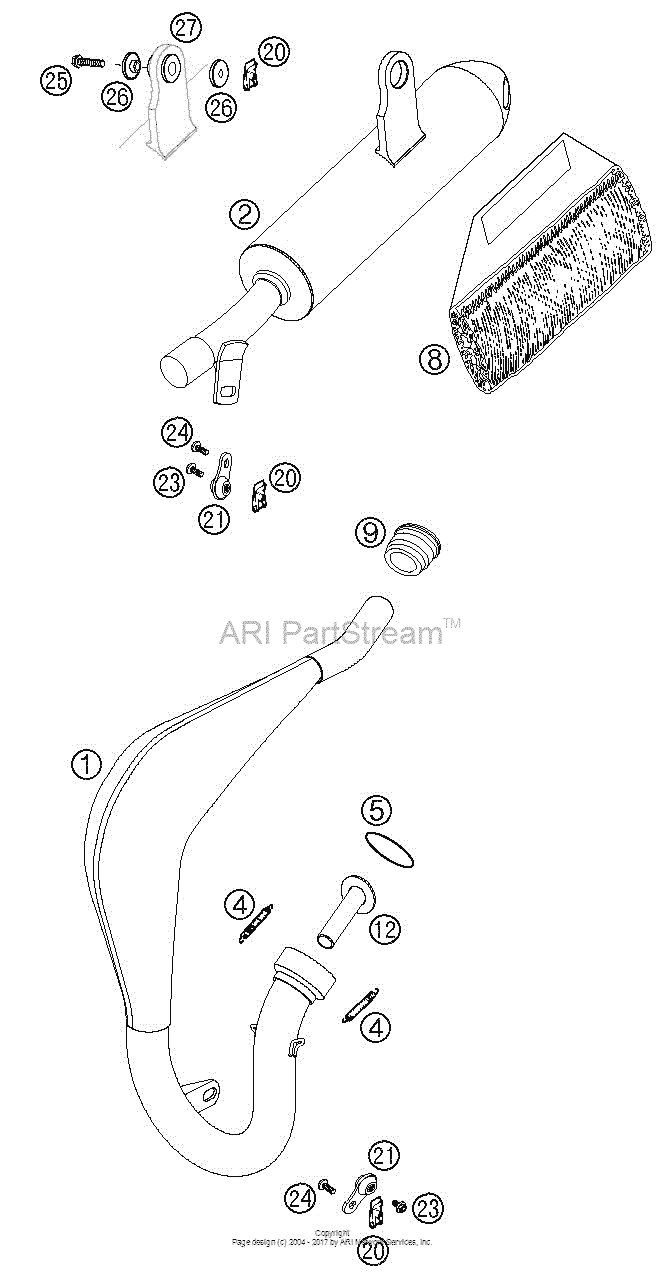

Exhaust System Diagram KTM 50 50 Mini Adventure US/EU 18096263-940180

Exhaust System Diagram KTM 50 50 Mini Adventure US/EU 18096263-940180
