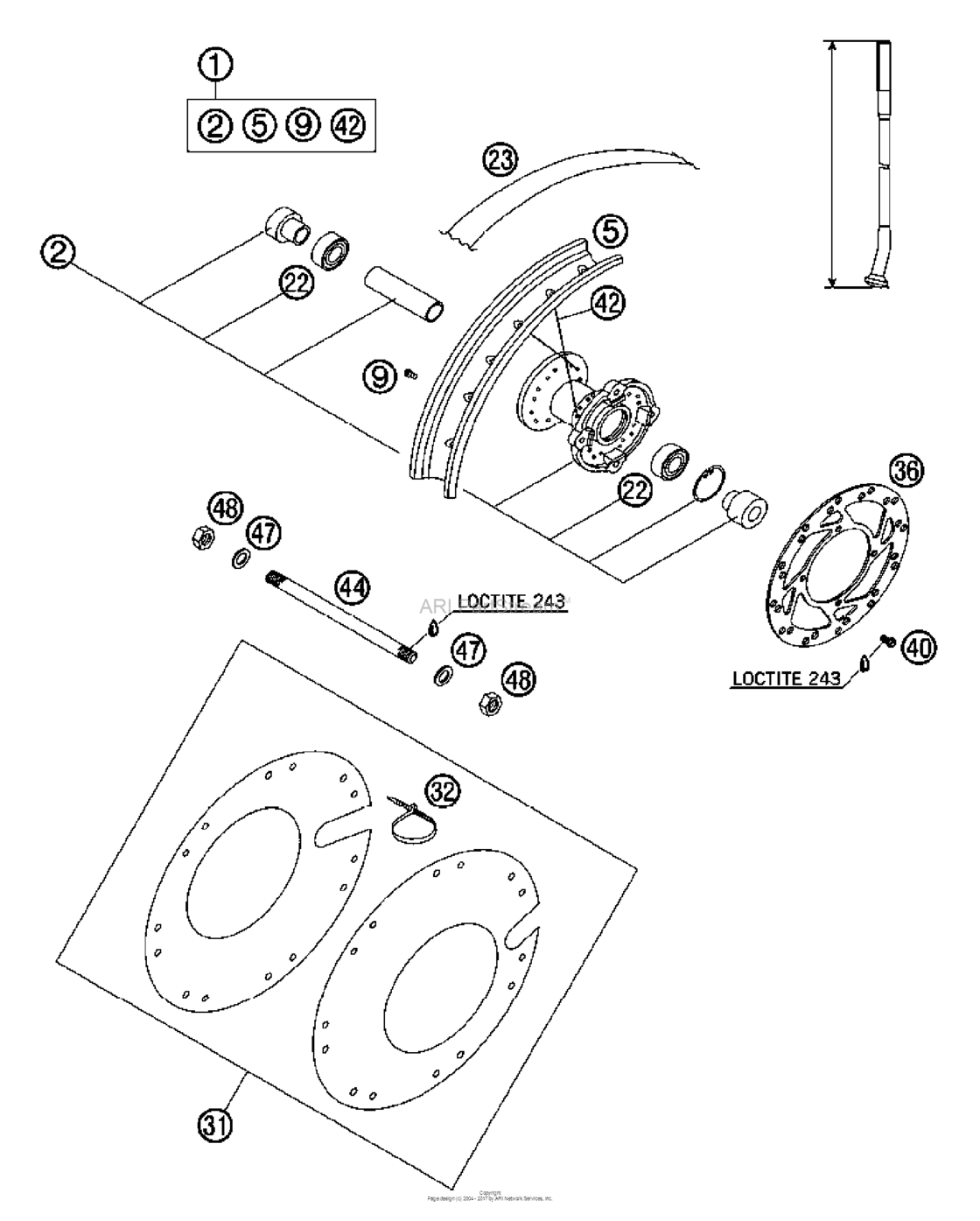

Front Wheel Diagram KTM 50 50 SX
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45109001244 Front wheel-sp cpl.1,5x12" alu98 |
45109001244 |
US $379.20 |
||
|
2
|
2
45109010044 Front wheel hub cpl. 200298 |
45109010044 |
US $195.13 |
||
|
5
|
5
45109070000 Rim Front 1,5X12 Aluminium 0798 |
45109070000 |
US $161.33 |
||
| replacement | |||||
|
5
|
5
45109070100
Rim front 1,5x12" aluminium 07
98 |
45109070100 |
— | ||
|
9
|
9
45109072000 Spoke nipple 3mm98 |
45109072000 |
US $1.45 |
||
|
22
|
22
0625062027 Ball Bearing 6202-2Rsh/c398 |
0625062027 |
US $28.61 |
||
| replacement | |||||
|
22
|
22
0625062028 Ball bearing 6202-2rsh/c398 |
0625062028 |
US $12.10 |
||
|
23
|
23
45109073100 Rim band 12"98 |
45109073100 |
US $10.40 |
||
|
31
|
31
45110092000
Wheel cover cpl. 50sx lc 03
98 |
45110092000 |
— | ||
|
32
|
32
44011076305 Cable tie 300/4,8mm black98 |
44011076305 |
US $0.36 |
||
|
36
|
36
45109060000 Brake disc front jun/sen 0298 |
45109060000 |
US $65.33 |
||
|
40
|
40
59009062013 Special Screw M6X13 Ws=8 10.998 |
59009062013 |
US $2.24 |
||
|
42
|
42
45109071129 Spoke 3x124x5mm-110░ 0298 |
45109071129 |
US $0.99 |
||
|
44
|
44
46010085000 Axle 207mm m12x198 |
46010085000 |
US $25.21 |
||
|
47
|
47
0125120003 Flat washer din0125-a1398 |
0125120003 |
US $0.63 |
||
|
48
|
48
0934120103 Hexagon nut din0934-m12x198 |
0934120103 |
US $1.17 |
||
