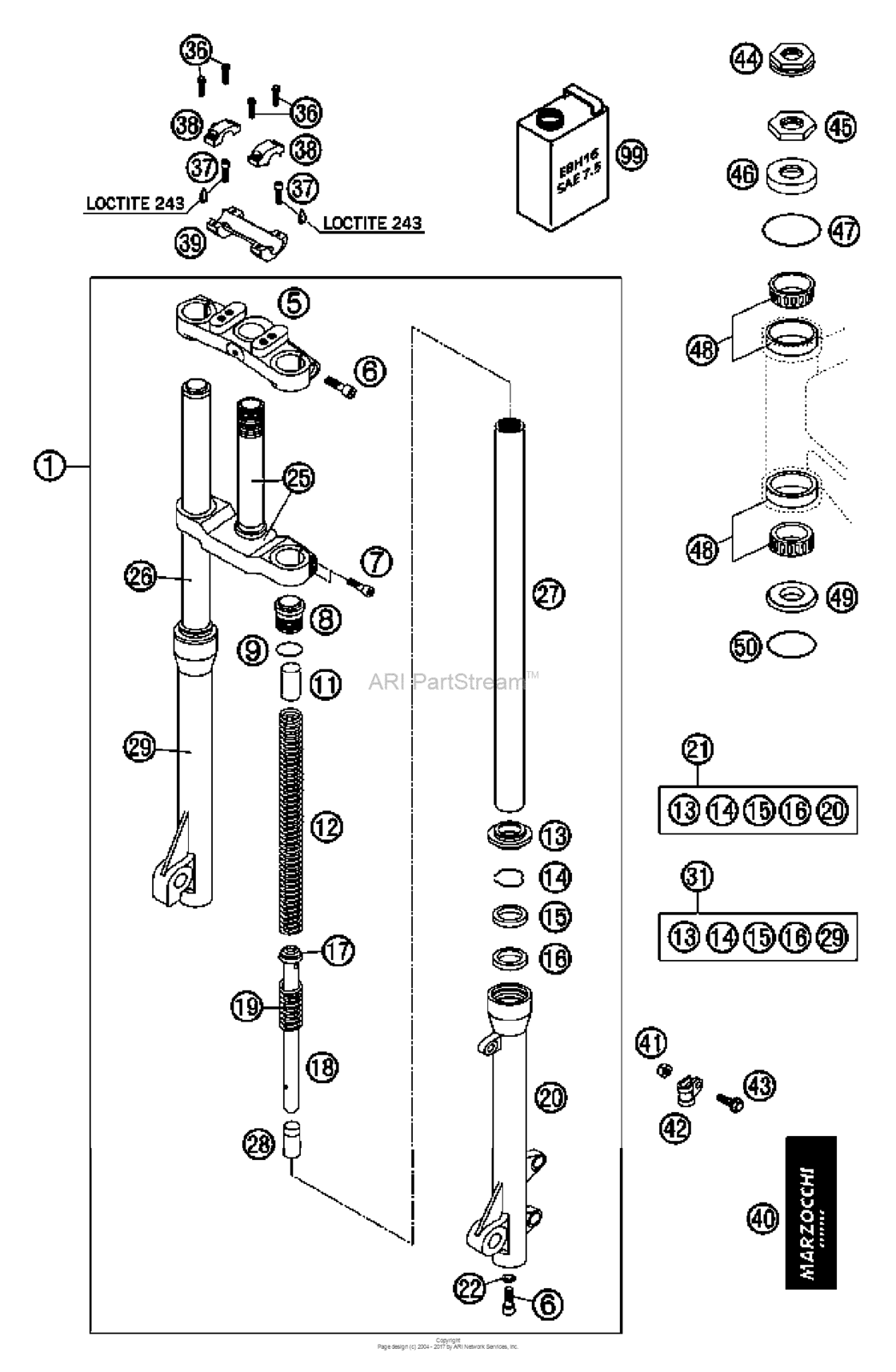

Front Fork Diagram KTM 50 50 SX
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45101000644
Fork cpl. sx sen. marz. 2003
98 |
45101000644 |
— | ||
|
5
|
5
7501498A Top fork plate 50 lc sen. 0398 |
7501498A |
US $152.13 |
||
|
6
|
6
0912080303 Ah Screw Din0912-M 8X3098 |
0912080303 |
US $1.50 |
||
|
7
|
7
0912060253 Ah Screw Din0912-M 6X2598 |
0912060253 |
US $1.79 |
||
|
8
|
8
7504212AC Plug cap98 |
7504212AC |
US $42.40 |
||
|
9
|
9
7528010 O-ring98 |
7528010 |
US $1.09 |
||
|
11
|
11
7518076 Pre load bush 25x2,5x10098 |
7518076 |
US $17 |
||
|
12
|
12
75141169
Spring 2n/mm
98 |
75141169 |
— | ||
|
12
|
12
75141214 Spring 2,5n/mm98 |
75141214 |
US $14.59 |
||
|
13
|
13
7533297 Dust seal98 |
7533297 |
US $32.23 |
||
|
14
|
14
7523264 Stop ring98 |
7523264 |
US $5.08 |
||
|
15
|
15
7528230 Oil seal 32/42/6,5-9,598 |
7528230 |
US $17.80 |
||
|
16
|
16
7522166AA
Washer d42x32,5x1,5
98 |
7522166AA |
— | ||
|
17
|
17
7524157 Piston ring d3298 |
7524157 |
US $2.98 |
||
|
18
|
18
78031045 Piston rod compression sen. 0198 |
78031045 |
US $37.84 |
||
|
18
|
18
78031047 Piston rod rebound sen. 0198 |
78031047 |
US $40.66 |
||
|
19
|
19
75141015
Rebound spring
98 |
75141015 |
— | ||
|
20
|
20
75031570A
Slider l/s 50 lc 2002
98 |
75031570A |
— | ||
|
21
|
21
75031570AR
Slider cpl. l/s 50lc 2002
98 |
75031570AR |
— | ||
|
22
|
22
7522225 Washer 14x8x1,598 |
7522225 |
US $0.71 |
||
|
25
|
25
77051140
Bot.fork plate cpl. sen. 03
98 |
77051140 |
— | ||
|
26
|
26
7708249R
Fork tube r/s senior 02
98 |
7708249R |
— | ||
|
27
|
27
7708250R
Fork tube l/s senior 02
98 |
7708250R |
— | ||
|
28
|
28
7512068
Foot buffer
98 |
7512068 |
— | ||
|
29
|
29
75031571A Slider r/s 50 lc 200298 |
75031571A |
US $224.28 |
||
|
31
|
31
75031571AR
Slider cpl. r/s 50lc 2002
98 |
75031571AR |
— | ||
|
36
|
36
0015080303
Hh Collar Screw M8X30 Tx40
98 |
0015080303 |
— | ||
| replacement | |||||
|
36
|
36
0025080306 Hh collar screw m8x30 tx4098 |
0025080306 |
US $3.89 |
||
|
37
|
37
0912100250
Ah-Collar Screw M10X25 Isa45
98 |
0912100250 |
— | ||
| replacement | |||||
|
37
|
37
0032100256S Ah-collar screw m10x25 isa4598 |
0032100256S |
US $5.12 |
||
|
38
|
38
50301038000 Handlebar clamp d=22mm 200198 |
50301038000 |
US $21.54 |
||
|
39
|
39
45101039000 Handlebar support d=22mm 200198 |
45101039000 |
US $55.93 |
||
|
40
|
40
7547325
Sticker left side marzocchi
98 |
7547325 |
— | ||
|
40
|
40
7547331 Sticker right side marzocchi98 |
7547331 |
US $15.42 |
||
|
41
|
41
0985050003 Self Locking Nut Din0985-M 598 |
0985050003 |
US $3.26 |
||
|
42
|
42
45001070000 Brake cable clamp rsgu 9/1298 |
45001070000 |
US $4.10 |
||
|
43
|
43
0015050203
Hh Collar Screw M5X20 Tx30
98 |
0015050203 |
— | ||
| replacement | |||||
|
43
|
43
0025050206 Hh collar screw m5x20 tx3098 |
0025050206 |
US $1.33 |
||
|
44
|
44
59030029000 Hh nut m20x1,5 ws=27 right98 |
59030029000 |
US $7.62 |
||
|
45
|
45
46001043000 Steering head nut m20x1,598 |
46001043000 |
US $7.11 |
||
|
46
|
46
49001086000 Covering cap98 |
49001086000 |
US $6.10 |
||
|
47
|
47
0770021300 O-ring 40,94x2,62 nbr7098 |
0770021300 |
US $2.31 |
||
|
48
|
48
49001081000 Tapered roller bearing 32004x98 |
49001081000 |
US $38.74 |
||
|
49
|
49
46001086000 Protection ring 20,1x39x598 |
46001086000 |
US $8.52 |
||
|
50
|
50
0770360030 O-ring 36,00x3,00 nbr98 |
0770360030 |
US $1.60 |
||
|
99
|
99
7550013
Forkoil Ebh16 Sae 7.5
98 |
7550013 |
— | ||
