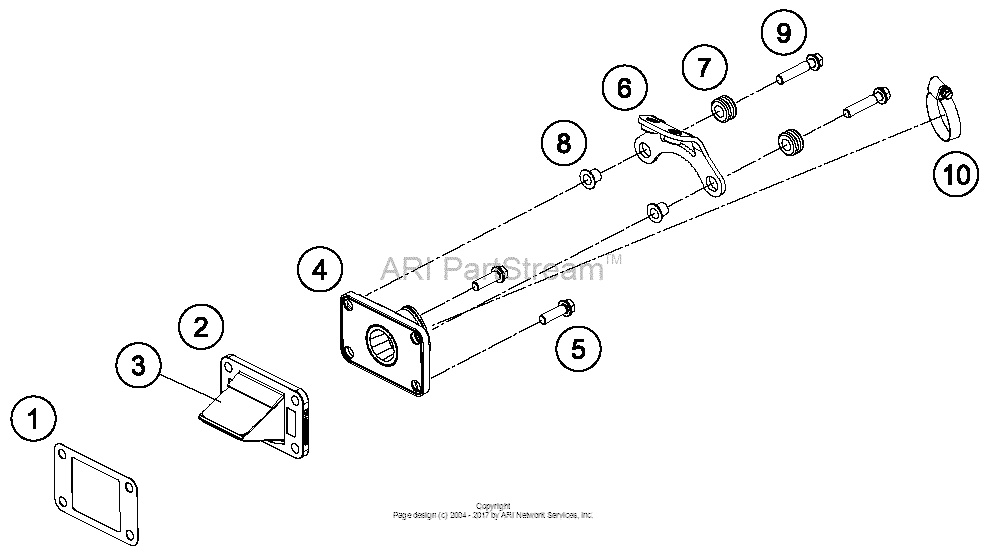

Reed Valve Case Diagram KTM 50 50 SX
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46230049000 Gasket membran case03 |
46230049000 |
US $2.67 |
||
|
2
|
2
46230151044 Reed Valve Assy Cpl03 |
46230151044 |
US $94.33 |
||
|
3
|
3
46230152028 Membran03 |
46230152028 |
US $64.35 |
||
|
4
|
4
45230150000 Intake Flange03 |
45230150000 |
US $37.86 |
||
|
5
|
5
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
6
|
6
45239010000 Ignit. coil retain. plate cpl.TX30 |
45239010000 |
US $21.05 |
||
|
7
|
7
31008060000 Rubber Sleeve D=8Mm OpenTX30 |
31008060000 |
US $1.09 |
||
|
8
|
8
45239060050 Collar bushing 6,3x8x13x9,5TX30 |
45239060050 |
US $5.12 |
||
|
9
|
9
0025060306 Hh collar screw m6x30 tx30TX30 |
0025060306 |
US $3.96 |
||
|
10
|
10
10001120000 Clamp 25-40 sgt 4TX30 |
10001120000 |
US $5.10 |
