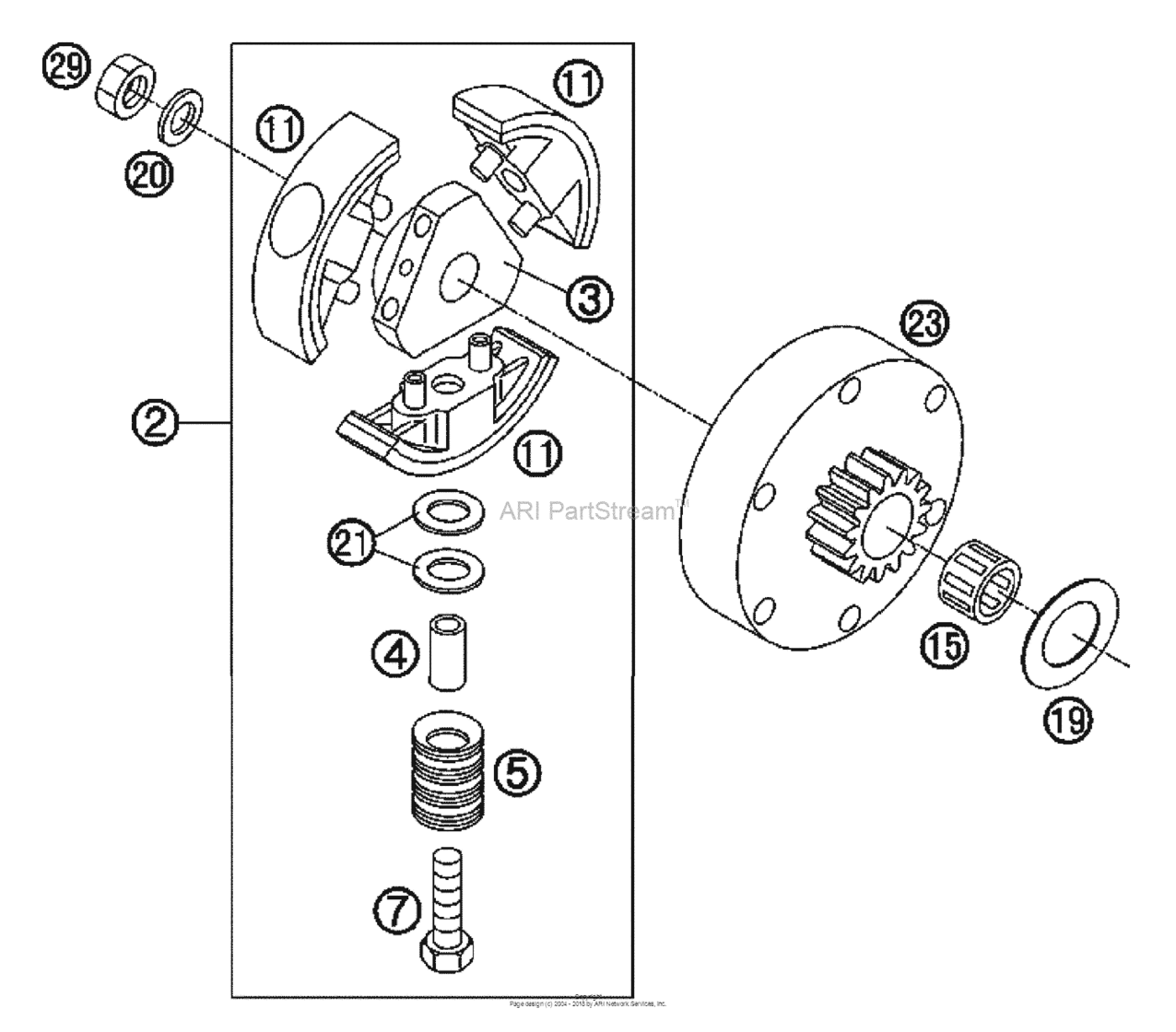

Clutch Diagram KTM 50 50 SX Junior
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX Junior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
45132002144
Clutch Cpl.50Gs 2007
(As Required) |
45132002144 |
— | ||
| replacement | |||||
|
2
|
2
45132002244 Clutch cpl.50gs 2007(As Required) |
45132002244 |
US $290.87 |
||
|
3
|
3
45132002000 Clutch hub 50 lc 2002(As Required) |
45132002000 |
US $123.22 |
||
|
4
|
4
45132004000 Spacer 6x8x19(As Required) |
45132004000 |
US $12.53 |
||
|
5
|
5
45132005000 Clutch spring 2001(As Required) |
45132005000 |
US $2.24 |
||
|
7
|
7
0933060253 Hh screw din0933-m 6x25(As Required) |
0933060253 |
US $1.67 |
||
|
11
|
11
45132011200 Clutch block 06(As Required) |
45132011200 |
US $30.36 |
||
|
15
|
15
45132015000 Needle bearing 15x18x17(As Required) |
45132015000 |
US $17.10 |
||
|
19
|
19
45132020030 Spacer washer 15x25x0,3(As Required) |
45132020030 |
US $1.12 |
||
|
19
|
19
45132020040 Spacer washer 15x25x0,4(As Required) |
45132020040 |
US $0.92 |
||
|
19
|
19
47033040000 Stop disc 15x25x1(As Required) |
47033040000 |
US $0.83 |
||
|
19
|
19
47033043000 Stop disc 15x25x0,5(As Required) |
47033043000 |
US $0.39 |
||
|
20
|
20
45132020000 Washer 10,4x16,8x0,4(As Required) |
45132020000 |
US $3.83 |
||
|
21
|
21
45132120000 Washer 8x15,3x0,5(As Required) |
45132120000 |
US $0.66 |
||
|
21
|
21
45132120100 Washer 8x15,3x1(As Required) |
45132120100 |
US $3.38 |
||
|
21
|
21
45132120200 Washer 8x15,3x0,25(As Required) |
45132120200 |
US $0.82 |
||
|
23
|
23
45132023016 Clutch drum 16-t(As Required) |
45132023016 |
US $146.44 |
||
|
29
|
29
45130029000 Special nut 10x1,25x8(As Required) |
45130029000 |
US $4.18 |
||
