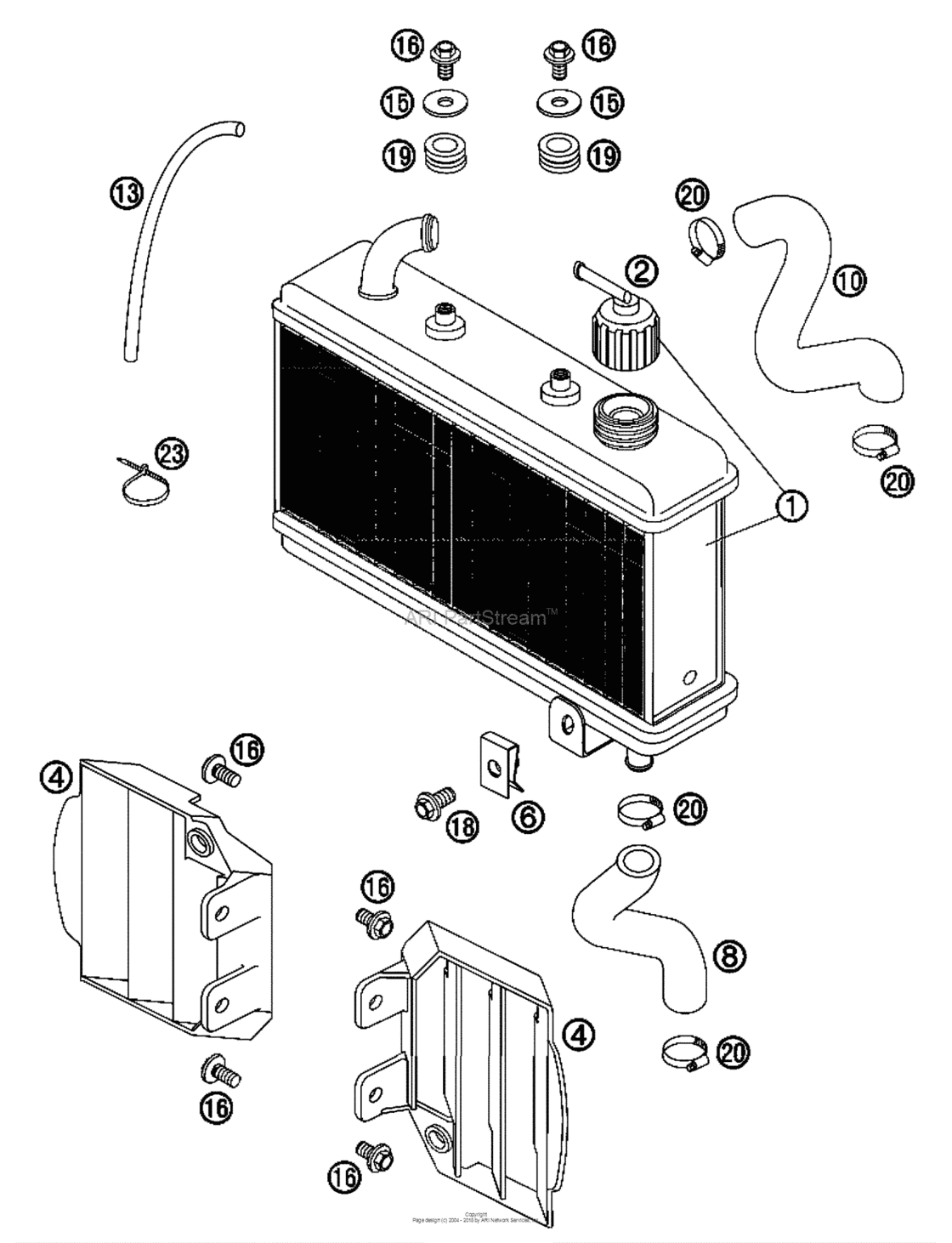

Cooling System Diagram KTM 50 50 SX Junior
- Year
- 2008
- Sales region
- US
- Engine Capacity
- 50
- Model
- 50 SX Junior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45135007000 Radiator mini sx jun/sen 20012001 |
45135007000 |
US $170.10 |
||
|
2
|
2
45135009000 Radiator cap 50 lc 1,0 bar2001 |
45135009000 |
US $11.10 |
||
|
4
|
4
4513500700130 Radiator prot. sx black 20072007 |
4513500700130 |
US $4.01 |
||
|
6
|
6
54603048100 Range Change Metal Nut M62007 |
54603048100 |
US $5.27 |
||
|
8
|
8
45135025000 Radiator hose sx jun."lc" 20012001 |
45135025000 |
US $5.49 |
||
|
10
|
10
45135026000 Radiator hose sx jun."lc" 20012001 |
45135026000 |
US $7.60 |
||
|
13
|
13
55007016001 Pvc-hose 7x10 per meter(As required) |
55007016001 |
US $5.98 |
||
|
15
|
15
0021060003 Washer Din9021-A 6,4(As required) |
0021060003 |
US $3.26 |
||
|
16
|
16
0014060103
Hh Collar Screw M6X10 Tx30
WS=8 |
0014060103 |
— | ||
| replacement | |||||
|
16
|
16
0024060106 Hh collar screw m6x10 tx30WS=8 |
0024060106 |
US $4.35 |
||
|
18
|
18
59001092050 Special Screw M6X12,5 Ws=8WS=8 |
59001092050 |
US $2.35 |
||
|
19
|
19
58414019000 Rubber grommet 11 x 19 x 9 '96'96 |
58414019000 |
US $8.11 |
||
|
20
|
20
42013037200
Hose clamp gemi 12/22
'96 |
42013037200 |
— | ||
| replacement | |||||
|
20
|
20
42013037400 Hose Clamp Norma 14/24'96 |
42013037400 |
US $4.17 |
||
|
23
|
23
44011076200 Cable tie 200/3,6mm black(As required) |
44011076200 |
US $0.39 |
||
|
23
|
23
44011076305 Cable tie 300/4,8mm black(As required) |
44011076305 |
US $0.36 |
||
