Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 45130001100 Clutch cover 50 2004 2004	45130001100	—
2	2 45130002000 Ignition cover 50ccm lc 2001 2001	45130002000	US $59.40
3	3 45130000044 Enginge case 50ccm lc 2001 2001	45130000044	US $252.50
9	9 0603061001 Cu-Seal Ring Din7603-6X10X1 2001	0603061001	US $2.64
10	10 0015060103 Hh collar screw m 6x10 ws=8 WS=8	0015060103	—
	replacement
10	10 0025060106 Hh collar screw m6x10 tx30 WS=8	0025060106	US $1.58
11	11 0015060253 Hh Collar Screw M6X25 Tx30 WS=8	0015060253	—
	replacement
11	11 0025060256 Hh collar screw m6x25 tx30 WS=8	0025060256	US $2.45
12	12 0015060303 Hh Collar Screw M6X30 Tx30 SW=8	0015060303	—
	replacement
12	12 0025060306 Hh collar screw m6x30 tx30 SW=8	0025060306	US $3.96
13	13 0015080603 Hh collar screw m 8x60 ws=10 WS=10	0015080603	US $2.09
14	14 0912060353 Ah Screw Din0912-M 6X35 WS=10	0912060353	US $2.09
15	15 0912060404 Ah Screw Din0912-M 6X40 A2 WS=10	0912060404	US $1.38
19	19 45130019000 Gasket for oil plug WS=10	45130019000	US $0.92
20	20 45130020000 Oil plug 50 lc 2001 2001	45130020000	US $8.96
21	21 46030021100 Oil drain plug m10 ws=13 WS=13	46030021100	US $13.41
22	22 45130022000 Angle piece 50ccm lc 2001 2001	45130022000	US $5.80
23	23 45130023000 Dowel 7x9x10 2001	45130023000	US $4.61
24	24 0603100141 Copper Gasket Din7603-10X14X1 2001	0603100141	US $2.24
25	25 45130025000 Gasket for clutch cover 2001 2001	45130025000	US $8.43
26	26 46030043000 Stud m8x41 2001	46030043000	US $5.71
27	27 46030045000 Collar nut m8 ws=10 WS=10	46030045000	US $6.94
28	28 45135054100 Water pump shaft 50 lc 2007 2007	45135054100	US $31.25
29	29 46035058000 Wa.pu.bear. 10x19x5 doublelip 2007	46035058000	US $26.86
30	30 46035056100 Shaft seal ring 10x18x4 2007	46035056100	—
31	31 46035055100 Water pump wheel 60/65 '99 '99	46035055100	US $9.88
32	32 0471090010 Circlip din0471- 9x1 '99	0471090010	US $0.53
33	33 45135053000 Gasket water pump cover 02 02	45135053000	—
34	34 45135052000 Water pump cover 50 lc 2002 2002	45135052000	US $57.97
35	35 45135058000 Spring for water pump shaft 04 04	45135058000	US $1.11
37	37 0015060163 Hh Collar Screw M 6X16 Ws=8 WS=8	0015060163	US $2.23
38	38 52031137001 Pvc-hose 3x5mm (As required)	52031137001	US $6
39	39 45130039000 Engine case gasket 50 lc 2001 2001	45130039000	US $2.72
99	99 45130099000 Gasket set cpl. 50 lc 2001 2001	45130099000	US $88.47

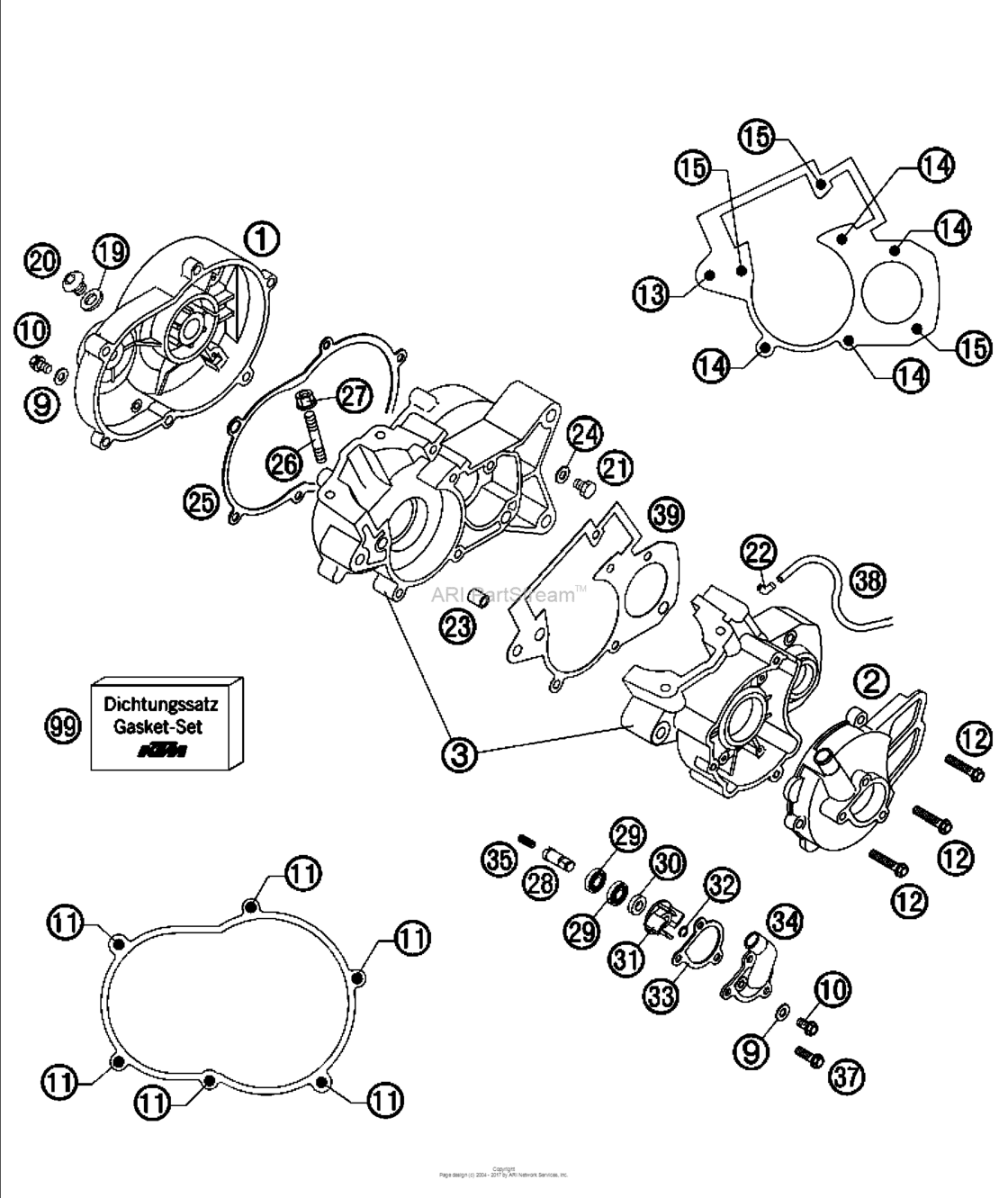

Engine Case Diagram KTM 50 50 SX Junior US 18096939-940233

Engine Case Diagram KTM 50 50 SX Junior US 18096939-940233
