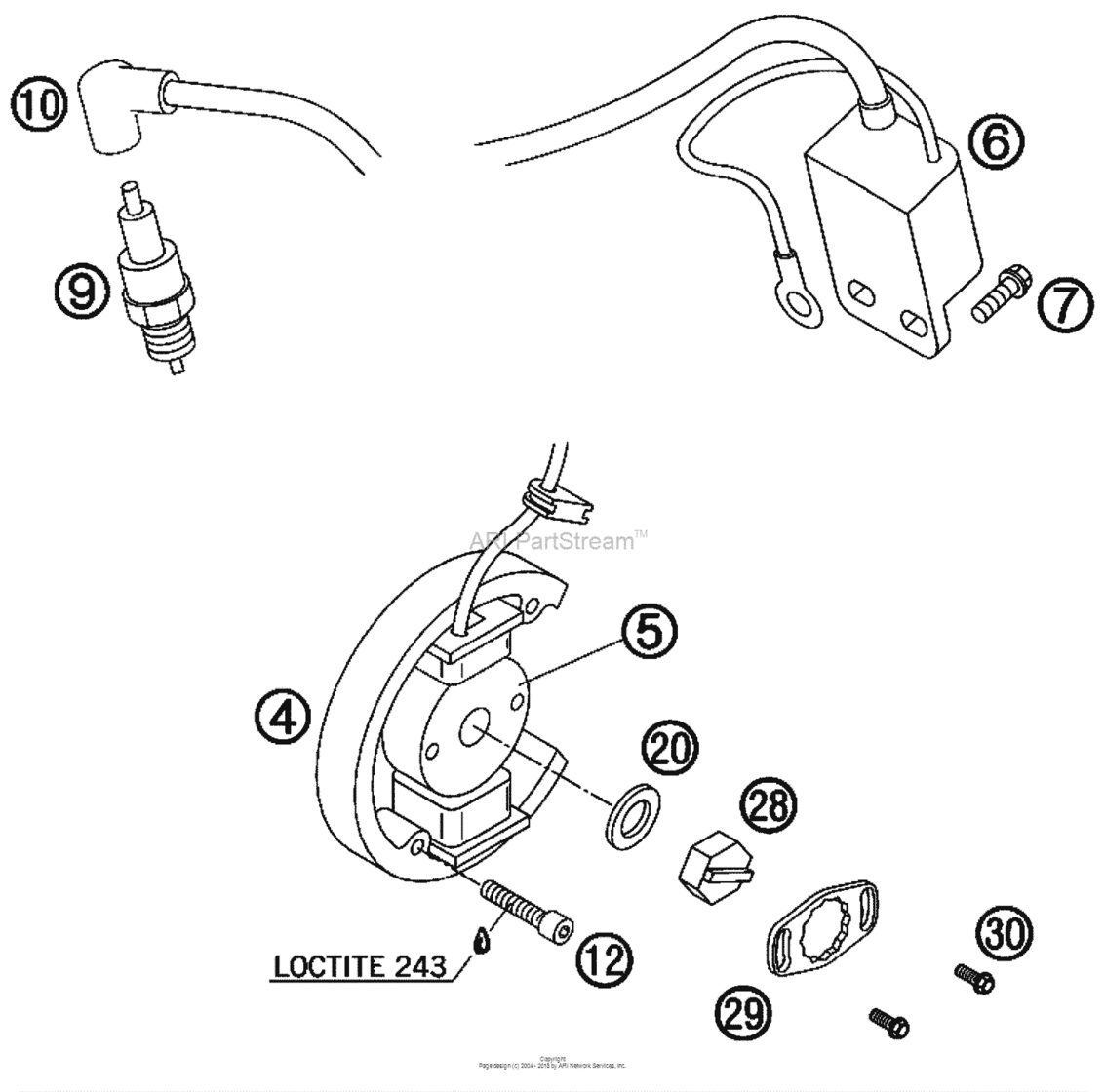

Ignition System Diagram KTM 50 50 SX Junior
- Year
- 2008
- Sales region
- US
- Engine Capacity
- 50
- Model
- 50 SX Junior
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
4
|
4
45139004000 Flywheel stator 50ccm lc 20012001 |
45139004000 |
US $121.50 |
||
|
5
|
5
45139005100 Flyweel rotor 50 20042004 |
45139005100 |
US $58.96 |
||
|
6
|
6
45139006000 Ignition coil 50ccm lc 20012001 |
45139006000 |
US $138.43 |
||
|
7
|
7
0015060123
Hh Collar Screw M 6X12 Ws=8
WS=8 |
0015060123 |
— | ||
| replacement | |||||
|
7
|
7
0025060126 Hh collar screw m6x12 tx30WS=8 |
0025060126 |
US $3.96 |
||
|
9
|
9
54331093410 Spark plug ngk br8ecmWS=8 |
54331093410 |
US $16.85 |
||
|
10
|
10
47039090000 Spark plug cap ngk reinforc.0404 |
47039090000 |
US $24.26 |
||
|
12
|
12
0912050253 Ah screw din0912-m 5x2504 |
0912050253 |
US $0.61 |
||
|
20
|
20
45132020000 Washer 10,4x16,8x0,404 |
45132020000 |
US $3.83 |
||
|
28
|
28
45130028100 Special nut04 |
45130028100 |
US $10.12 |
||
|
29
|
29
45130068000 Lock washer04 |
45130068000 |
US $6.87 |
||
|
30
|
30
0016040133 Hh collar screw m 4x13 ws=6WS=6 |
0016040133 |
US $0.53 |
||
