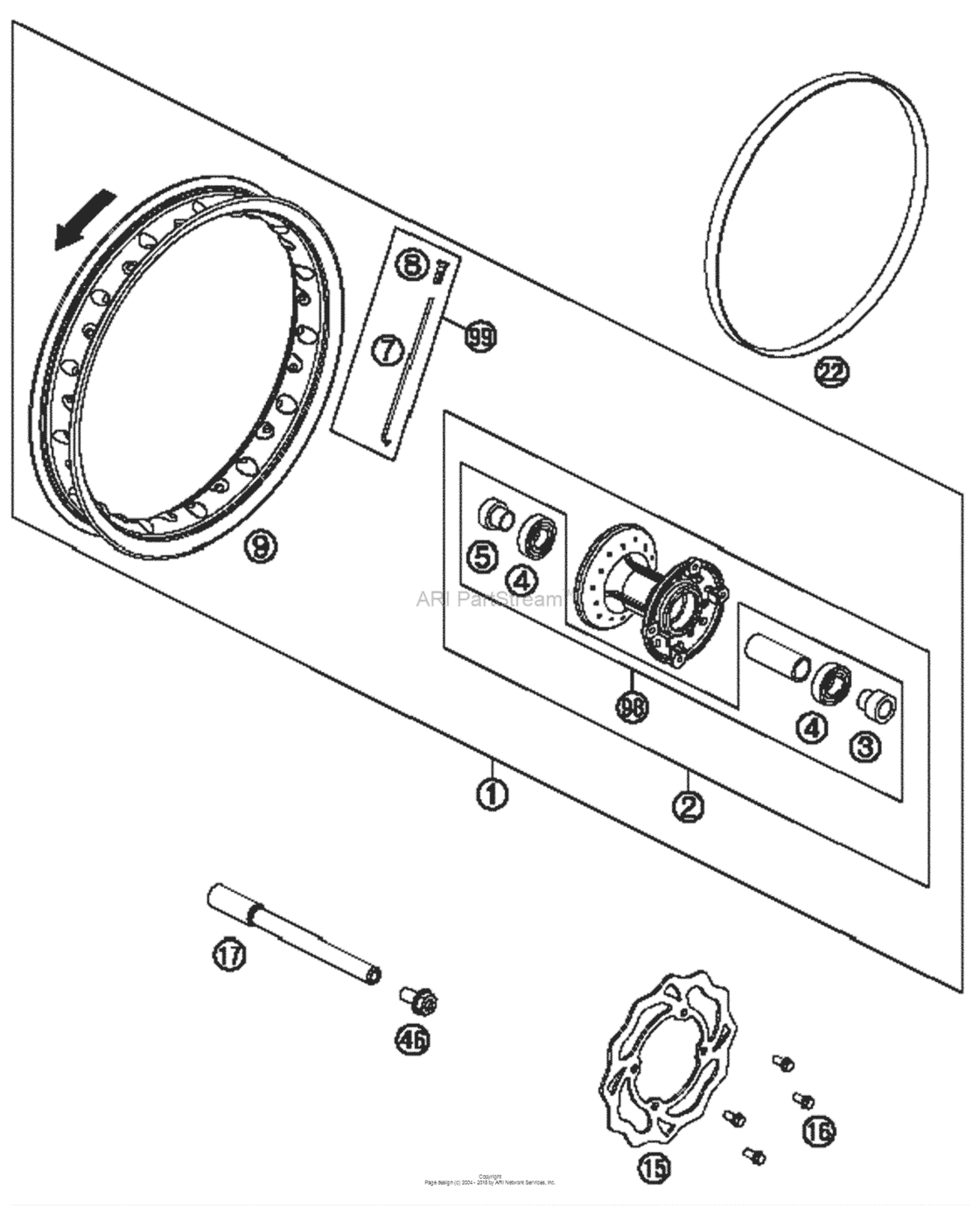

Front Wheel Diagram KTM 50 50 SX Mini
- Year
- 2016
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX Mini
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45209001344 Front Wheel 50Sx Mini 20122012 |
45209001344 |
US $454.90 |
||
|
2
|
2
45209010044 Front Wheel Hub Cpl2012 |
45209010044 |
US $202.32 |
||
|
3
|
3
45209012000 Spacer Bushing Left2012 |
45209012000 |
US $14.74 |
||
|
4
|
4
0625060037 Gr.ball bear. 6003-2rsh/c3hmtf2012 |
0625060037 |
US $27.20 |
||
|
5
|
5
45209013000 Spacer Bushing Right2012 |
45209013000 |
US $14.74 |
||
|
7
|
7
45109071102 Spoke 3x100x6mm-110░2012 |
45109071102 |
US $0.90 |
||
|
8
|
8
46210072000 Spoke Nipple Alu2012 |
46210072000 |
US $2.02 |
||
|
9
|
9
4520907030030 Front Rim 10In.x1.6 Blk2012 |
4520907030030 |
US $151.96 |
||
|
15
|
15
45209060000 Brake disc front jun/sen 092012 |
45209060000 |
US $76.23 |
||
|
16
|
16
59009062013 Special Screw M6X13 Ws=8 10.92012 |
59009062013 |
US $2.24 |
||
|
17
|
17
45209081000
Axle Front
2012 |
45209081000 |
— | ||
| replacement | |||||
|
17
|
17
45209081100 Axle Front2012 |
45209081100 |
US $70.64 |
||
|
22
|
22
45009073000 Rim band 10" 22mm2012 |
45009073000 |
US $4.17 |
||
|
46
|
46
49032011000 Hh collar screw m10x20 ws=172012 |
49032011000 |
US $5.73 |
||
|
98
|
98
45209015000 Front Wheel Rep. Kit 50 SxAs Required |
45209015000 |
US $91.72 |
||
|
99
|
99
00050000952 Spoke Kit Front 10 '12-'1412-'14, As Required |
00050000952 |
US $65.91 |
||
