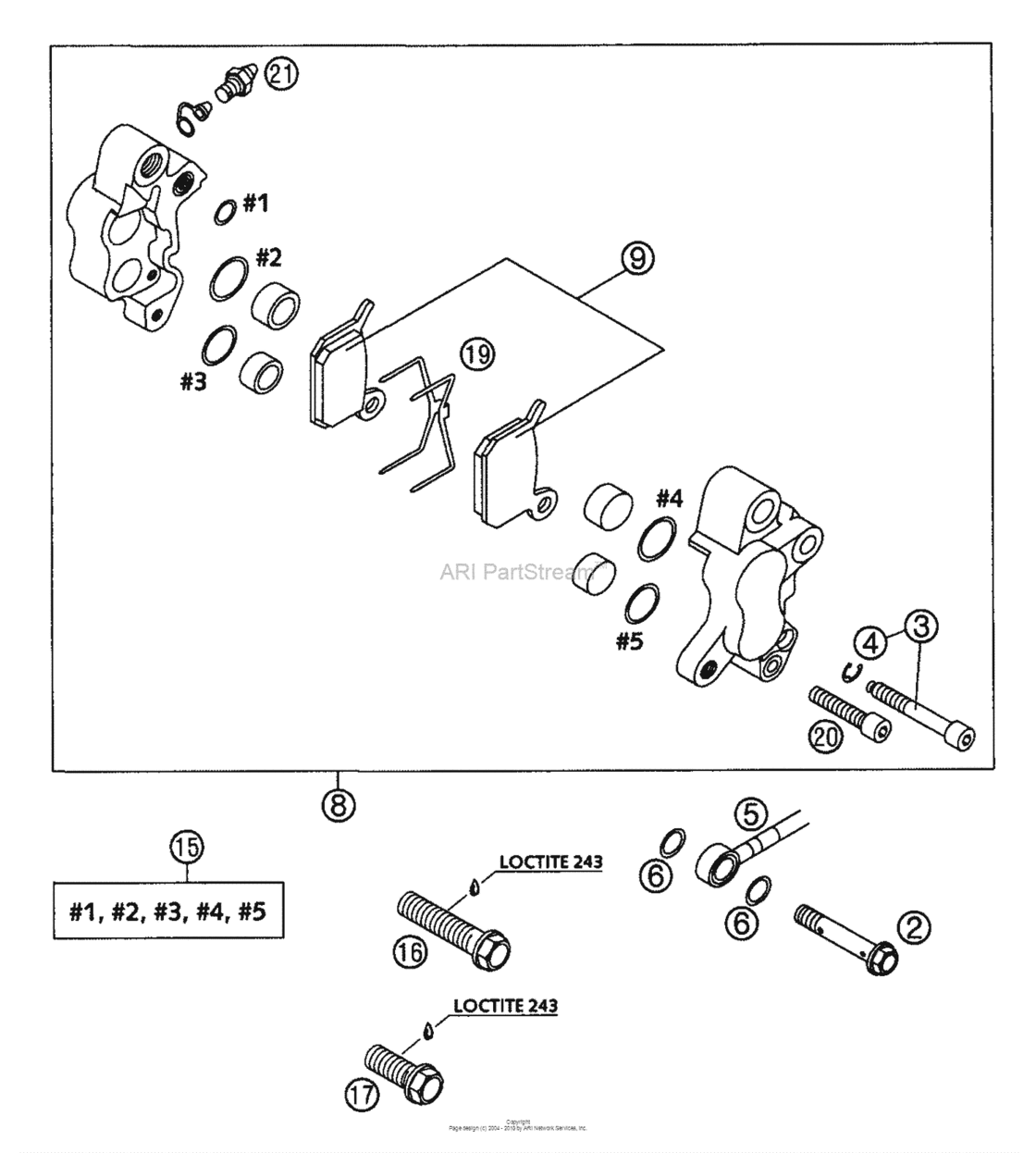

Brake Caliper Front Diagram KTM 50 50 SX Pro Junior LC
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX Pro Junior LC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
45113025000 Hollow screw m6x34 50 lc 2002D=14MM |
45113025000 |
US $14.81 |
||
|
3
|
3
45113125000 Ah screw+circlip lc 50 02D=14MM |
45113125000 |
US $13.33 |
||
|
4
|
4
0799025000 Tab washer din6799 rs2,5D=14MM |
0799025000 |
US $1.24 |
||
|
5
|
5
45113012000
Brake hose fr. sx jun. lc 2002
D=14MM |
45113012000 |
— | ||
| replacement | |||||
|
5
|
5
45213012000 Brake Hose Fr. 50Sx MiniD=14MM |
45213012000 |
US $85.49 |
||
|
5
|
5
45113012100
Brake hose fr. sx sen. lc 2002
D=14MM |
45113012100 |
— | ||
| replacement | |||||
|
5
|
5
45213012100 Brake Hose Fr. 50SxD=14MM |
45213012100 |
US $59.43 |
||
|
6
|
6
0770060019 O-ring 6,00x1,00 formulaD=14MM |
0770060019 |
US $1.31 |
||
|
8
|
8
45113015000 Brake caliper cpl.fr. 50 lc 02D=14MM |
45113015000 |
US $271.71 |
||
|
9
|
9
45113030000 Brake pad set 50 lc 2002D=14MM |
45113030000 |
US $39.22 |
||
|
15
|
15
45113019000 Rep.kit seal ring 50lc 2002D=14MM |
45113019000 |
US $13.53 |
||
|
16
|
16
0015080350
Hh Collar Screw M8X35 Tx40
D=14MM |
0015080350 |
— | ||
| replacement | |||||
|
16
|
16
0025080356S Hh Collar Screw M8X35 Tx40D=14MM |
0025080356S |
US $2.72 |
||
|
17
|
17
0015080203 Hh collar screw m 8x20 ws=10D=14MM |
0015080203 |
US $1.68 |
||
|
19
|
19
45113018000 Retaining spring 50 lcD=14MM |
45113018000 |
US $15.76 |
||
|
20
|
20
0912050203 Ah screw din0912-m 5x20D=14MM |
0912050203 |
US $0.80 |
||
|
21
|
21
45113020000 Breather screw 50 2002D=14MM |
45113020000 |
US $9.20 |
||
