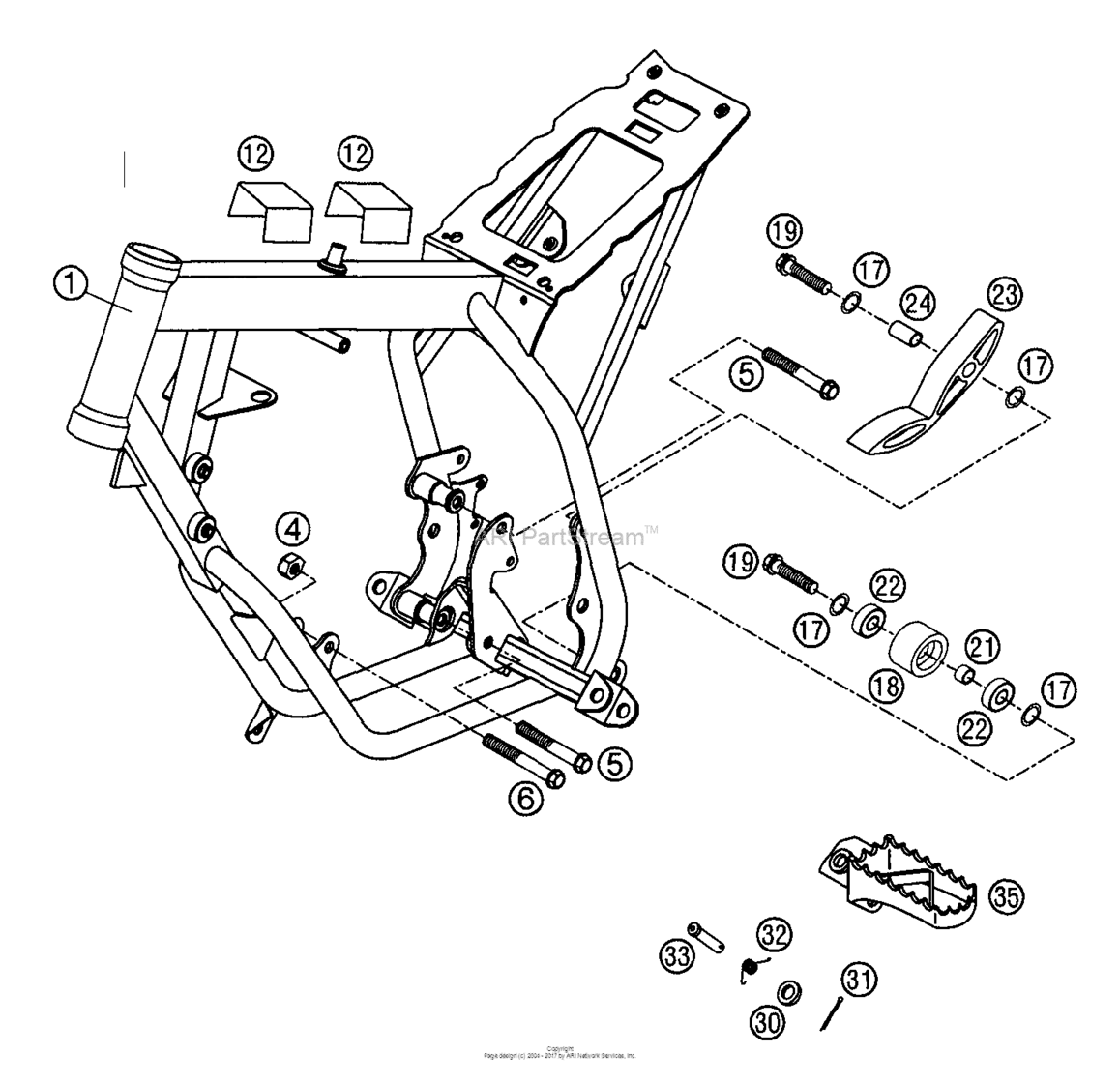

Frame Diagram KTM 50 50 SX Pro Junior LC
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX Pro Junior LC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45103001600
Frame pro senior "mc4r" 2004
(As Required) |
45103001600 |
— | ||
| replacement | |||||
|
1
|
1
4510300160030 Frame pro senior "mc4r" bl. 07(As Required) |
4510300160030 |
US $687.31 |
||
|
4
|
4
54310086200 Self Locking Nut M8 10.9(As Required) |
54310086200 |
US $1.56 |
||
|
5
|
5
0015080603 Hh collar screw m 8x60 ws=10(As Required) |
0015080603 |
US $2.09 |
||
|
6
|
6
0015080653 Hh collar screw m 8x65 ws=10(As Required) |
0015080653 |
US $2.09 |
||
|
12
|
12
58711054050 Metamoll for battery bracket(As Required) |
58711054050 |
US $1.22 |
||
|
17
|
17
36003014000 Lock washer 8mm(As Required) |
36003014000 |
US $0.46 |
||
|
18
|
18
50203053000 Chain roll d=30mm(As Required) |
50203053000 |
US $7.36 |
||
|
19
|
19
0015080303
Hh Collar Screw M8X30 Tx40
(As Required) |
0015080303 |
— | ||
| replacement | |||||
|
19
|
19
0025080306 Hh collar screw m8x30 tx40(As Required) |
0025080306 |
US $3.89 |
||
|
21
|
21
74003021000 Bushing 8.2 x 12 x 6(As Required) |
74003021000 |
US $2.14 |
||
|
22
|
22
0625006087 Grooved Ball Bear. 608 2Rs C3(As Required) |
0625006087 |
US $19.19 |
||
|
23
|
23
51103053000 Chain sliding piece below '97(As Required) |
51103053000 |
US $13.24 |
||
|
24
|
24
51103053051 Bushing 8,2x10x20(As Required) |
51103053051 |
US $3.06 |
||
|
30
|
30
0125100003 Washer Din0125-A10,5(As Required) |
0125100003 |
US $1.19 |
||
|
31
|
31
0094032253 Pin din0094-3,2x25 steel(As Required) |
0094032253 |
US $1.12 |
||
| replacement | |||||
|
31
|
31
0094032250 Pin din0094-3,2x25 steel(As Required) |
0094032250 |
US $1.12 |
||
|
32
|
32
54603041000 Footrest Spring L/s & R/s(As Required) |
54603041000 |
US $3.52 |
||
|
33
|
33
54803044000 Pin For Foot Ped 51.5X9.8 Mm(As Required) |
54803044000 |
US $10.98 |
||
|
35
|
35
5460304000090 Foot rest l/s silver(As Required) |
5460304000090 |
US $42.57 |
||
|
35
|
35
5460314000090 Foot rest r/s silver '98(As Required) |
5460314000090 |
US $43.61 |
||
