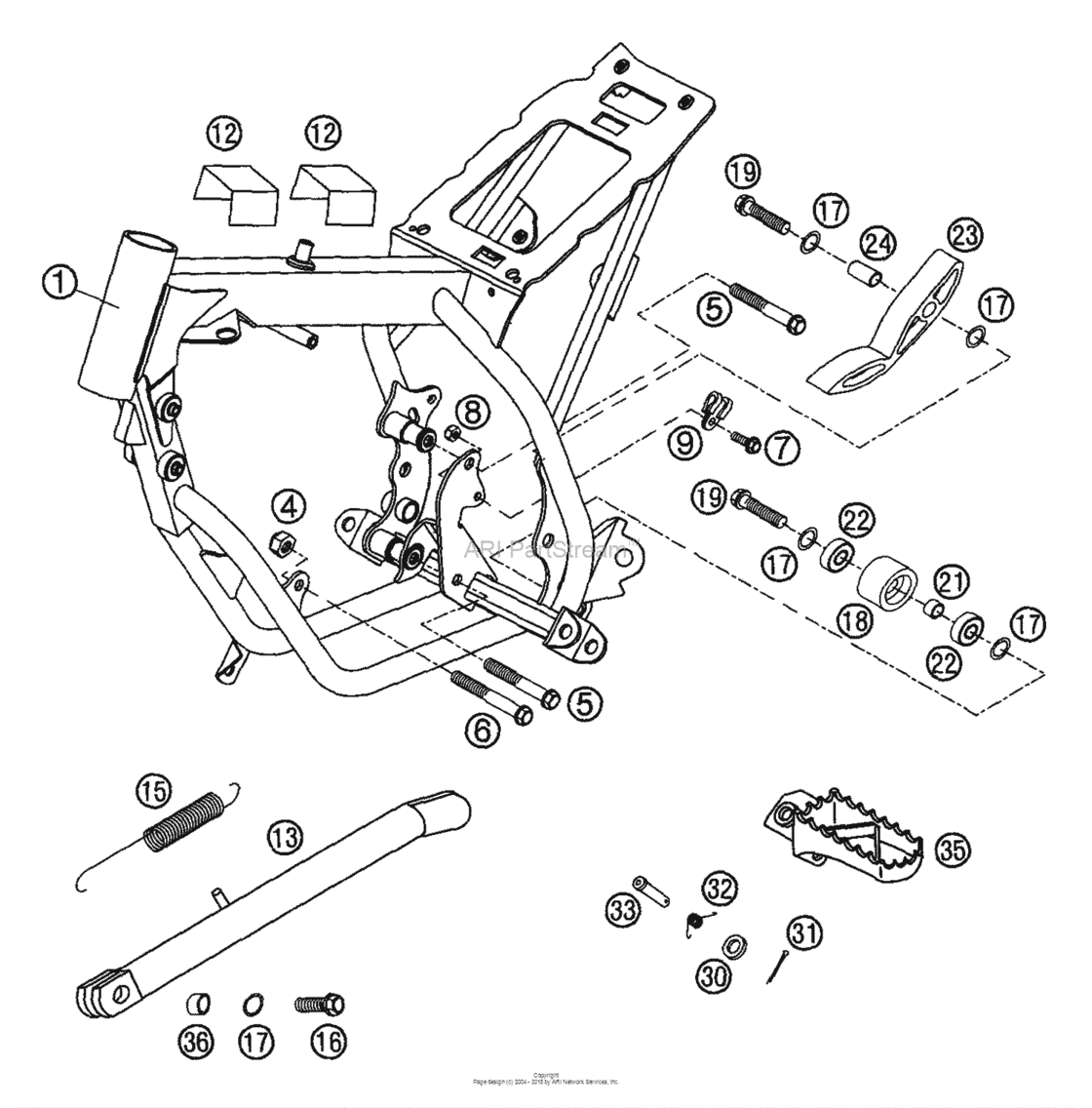

Frame, Side Stand Diagram KTM 50 50 SX Pro Junior LC
- Year
- 2003
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX Pro Junior LC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
5460314000090 Foot rest r/s silver '98(As Required) |
5460314000090 |
US $43.61 |
||
|
1
|
1
45103001000
Frame pro junior lc "me2r" 02
(As Required) |
45103001000 |
— | ||
|
4
|
4
54310086200 Self Locking Nut M8 10.9(As Required) |
54310086200 |
US $1.56 |
||
|
5
|
5
0015080603 Hh collar screw m 8x60 ws=10(As Required) |
0015080603 |
US $2.09 |
||
|
6
|
6
0015080653 Hh collar screw m 8x65 ws=10(As Required) |
0015080653 |
US $2.09 |
||
|
7
|
7
0015050123
Hh collar screw m 5x12 ws=8
(As Required) |
0015050123 |
— | ||
| replacement | |||||
|
7
|
7
0025050126 Hh collar screw m5x12 tx30(As Required) |
0025050126 |
US $3.38 |
||
|
8
|
8
0985050003 Self Locking Nut Din0985-M 5(As Required) |
0985050003 |
US $3.26 |
||
|
9
|
9
45001070000 Brake cable clamp rsgu 9/12(As Required) |
45001070000 |
US $4.10 |
||
|
12
|
12
58711054050 Metamoll for battery bracket(As Required) |
58711054050 |
US $1.22 |
||
|
13
|
13
4510302320090 Side stand l=285mm silver 02(As Required) |
4510302320090 |
US $50.32 |
||
|
15
|
15
51003021000 Sidestand spring long(As Required) |
51003021000 |
US $5.87 |
||
|
16
|
16
0015080203 Hh collar screw m 8x20 ws=10(As Required) |
0015080203 |
US $1.68 |
||
|
17
|
17
36003014000 Lock washer 8mm(As Required) |
36003014000 |
US $0.46 |
||
|
18
|
18
50203053000 Chain roll d=30mm(As Required) |
50203053000 |
US $7.36 |
||
|
19
|
19
0015080303
Hh Collar Screw M8X30 Tx40
(As Required) |
0015080303 |
— | ||
| replacement | |||||
|
19
|
19
0025080306 Hh collar screw m8x30 tx40(As Required) |
0025080306 |
US $3.89 |
||
|
21
|
21
74003021000 Bushing 8.2 x 12 x 6(As Required) |
74003021000 |
US $2.14 |
||
|
22
|
22
0625006087 Grooved Ball Bear. 608 2Rs C3(As Required) |
0625006087 |
US $19.19 |
||
|
23
|
23
51103053000 Chain sliding piece below '97(As Required) |
51103053000 |
US $13.24 |
||
|
24
|
24
51103053051 Bushing 8,2x10x20(As Required) |
51103053051 |
US $3.06 |
||
|
30
|
30
0125100003 Washer Din0125-A10,5(As Required) |
0125100003 |
US $1.19 |
||
|
31
|
31
0094032253 Pin din0094-3,2x25 steel(As Required) |
0094032253 |
US $1.12 |
||
| replacement | |||||
|
31
|
31
0094032250 Pin din0094-3,2x25 steel(As Required) |
0094032250 |
US $1.12 |
||
|
32
|
32
54603041000 Footrest Spring L/s & R/s(As Required) |
54603041000 |
US $3.52 |
||
|
33
|
33
54803044000 Pin For Foot Ped 51.5X9.8 Mm(As Required) |
54803044000 |
US $10.98 |
||
|
35
|
35
5460304000090 Foot rest l/s silver(As Required) |
5460304000090 |
US $42.57 |
||
|
36
|
36
45103023250 Bushing for side stand 02(As Required) |
45103023250 |
US $1.82 |
||
