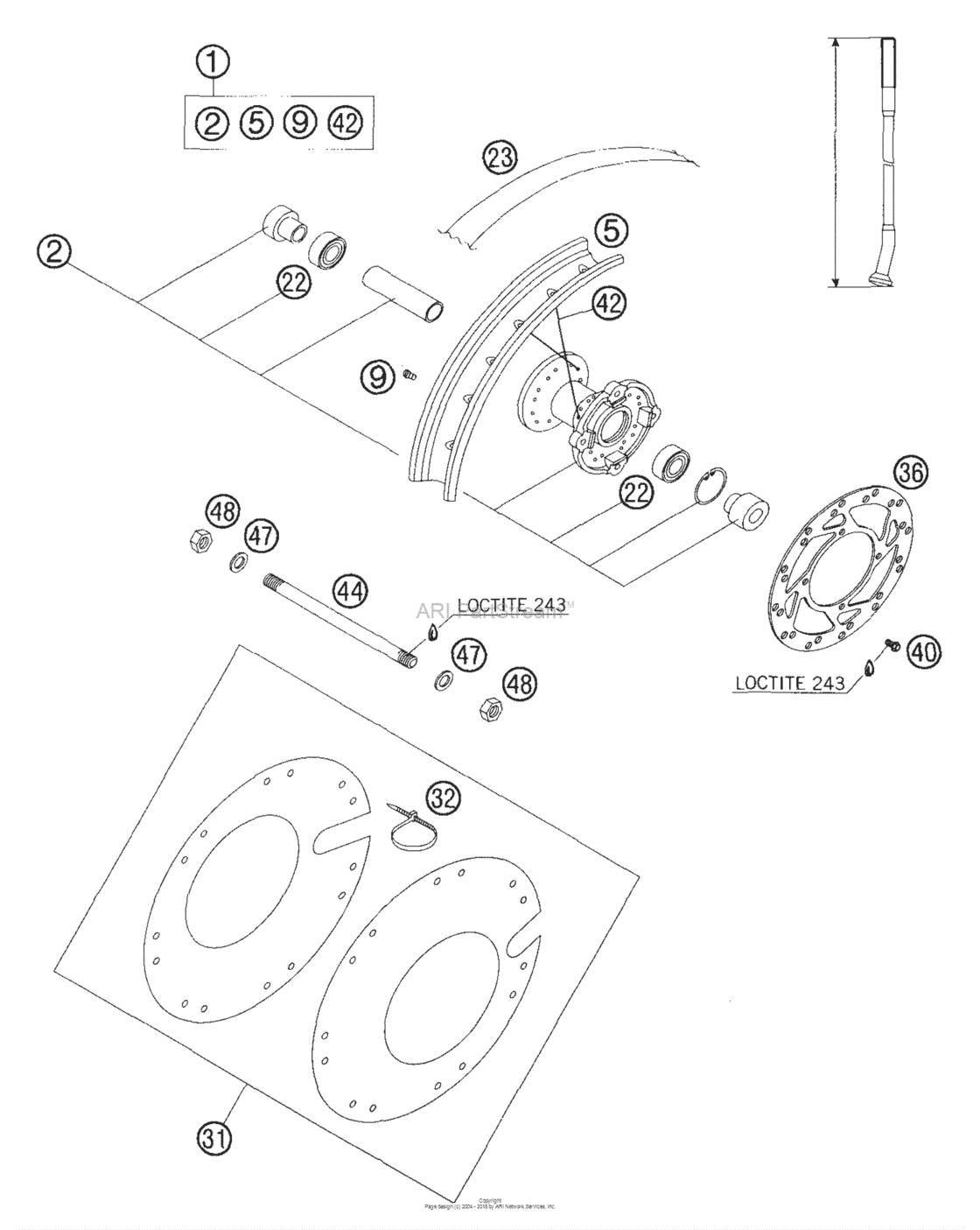

Front Wheel Diagram KTM 50 50 SX Pro Junior LC
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX Pro Junior LC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45109001144 Front wheel-sp cpl.1,6x10" alu(As Required) |
45109001144 |
US $375.22 |
||
|
2
|
2
45109010044 Front wheel hub cpl. 2002(As Required) |
45109010044 |
US $195.13 |
||
|
5
|
5
45109001001
Rim 1,6X10 Aluminium 2007
(As Required) |
45109001001 |
— | ||
| replacement | |||||
|
5
|
5
45109001101 Rim 1,6x10" aluminium 2007(As Required) |
45109001101 |
US $133.94 |
||
|
9
|
9
45109072000 Spoke nipple 3mm(As Required) |
45109072000 |
US $1.45 |
||
|
22
|
22
0625062027 Ball Bearing 6202-2Rsh/c3(As Required) |
0625062027 |
US $28.61 |
||
| replacement | |||||
|
22
|
22
0625062028 Ball bearing 6202-2rsh/c3(As Required) |
0625062028 |
US $12.10 |
||
|
23
|
23
45009073000 Rim band 10" 22mm(As Required) |
45009073000 |
US $4.17 |
||
|
31
|
31
45110092000
Wheel cover cpl. 50sx lc 03
(As Required) |
45110092000 |
— | ||
|
32
|
32
44011076305 Cable tie 300/4,8mm black(As Required) |
44011076305 |
US $0.36 |
||
|
36
|
36
45109060000 Brake disc front jun/sen 02(As Required) |
45109060000 |
US $65.33 |
||
|
40
|
40
59009062013 Special Screw M6X13 Ws=8 10.9(As Required) |
59009062013 |
US $2.24 |
||
|
42
|
42
45109071102 Spoke 3x100x6mm-110░(As Required) |
45109071102 |
US $0.90 |
||
|
44
|
44
46010085000 Axle 207mm m12x1(As Required) |
46010085000 |
US $25.21 |
||
|
47
|
47
0125120003 Flat washer din0125-a13(As Required) |
0125120003 |
US $0.63 |
||
|
48
|
48
0934120103 Hexagon nut din0934-m12x1(As Required) |
0934120103 |
US $1.17 |
||
