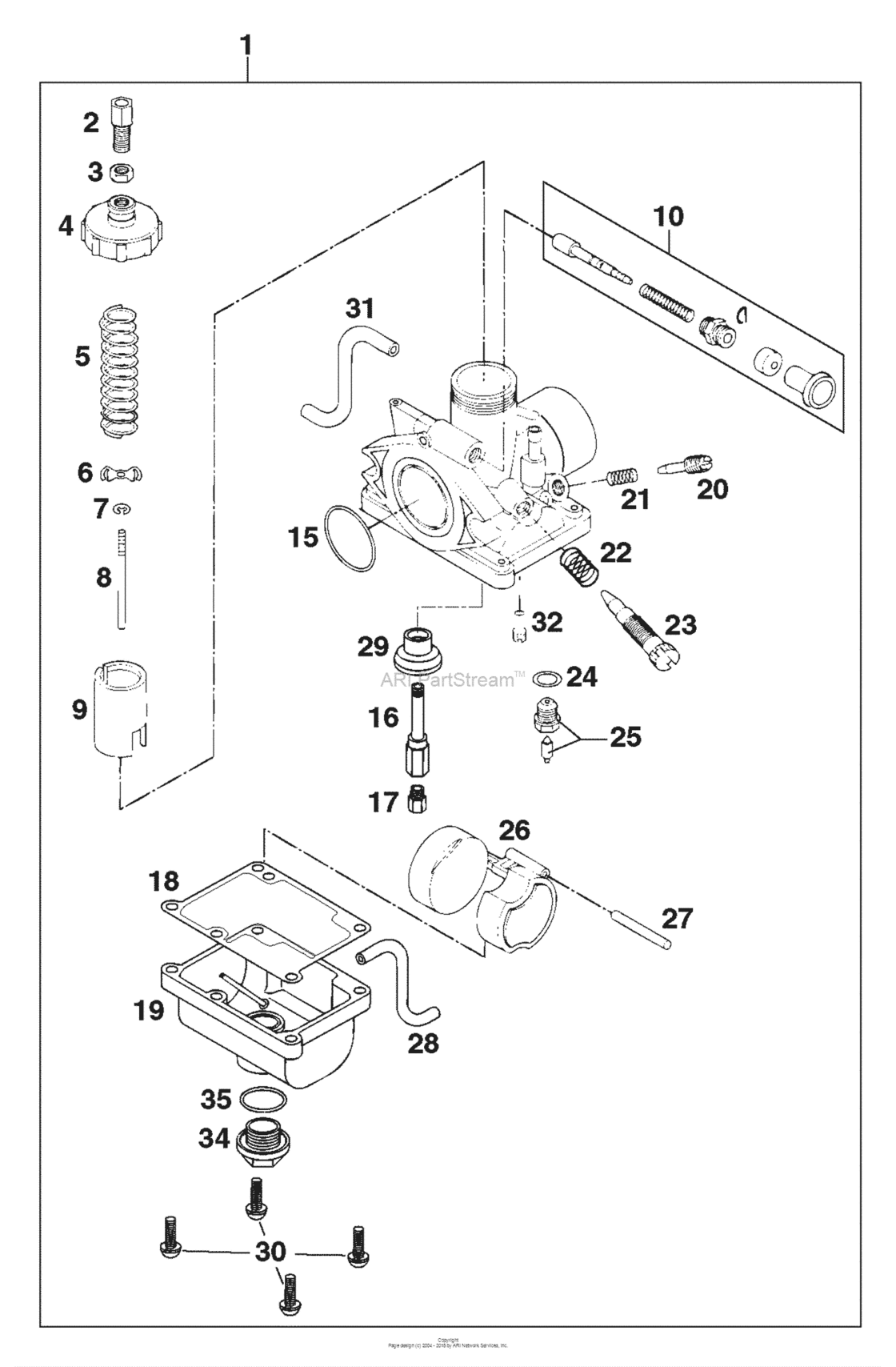

Carburetor Diagram KTM 50 50 SXR Pro Senior
- Year
- 1999
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SXR Pro Senior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45031001344
Carburetor mikuni vm20-364 '99
FOR FOOT BRAKE |
45031001344 |
— | ||
|
2
|
2
45031025000 Adjusting screw m6x0,75FOR FOOT BRAKE |
45031025000 |
US $5.92 |
||
|
3
|
3
45031026000
Hh-nut m6x0,75
FOR FOOT BRAKE |
45031026000 |
— | ||
|
4
|
4
45031027100 Carburetor cover vm20-352FOR FOOT BRAKE |
45031027100 |
US $11.78 |
||
|
5
|
5
45031030100 Throttle valve spring vm20-352FOR FOOT BRAKE |
45031030100 |
US $4.32 |
||
|
6
|
6
45031009100 Retaining spring vm20-352 mik.FOR FOOT BRAKE |
45031009100 |
US $3.64 |
||
|
7
|
7
45031045000 SpringFOR FOOT BRAKE |
45031045000 |
US $2.28 |
||
|
8
|
8
45031034100 Jet needle 4j13 mikuniFOR FOOT BRAKE |
45031034100 |
US $6.10 |
||
|
9
|
9
45031035100
Throttle valve 23mm mik. no.2
FOR FOOT BRAKE |
45031035100 |
— | ||
|
10
|
10
45031048144 Starter knob cpl. vm20FOR FOOT BRAKE |
45031048144 |
US $16.46 |
||
|
15
|
15
45031039100 O-ring 24x2 mikuniFOR FOOT BRAKE |
45031039100 |
US $4.20 |
||
|
16
|
16
45031021200 Needle jet n-6FOR FOOT BRAKE |
45031021200 |
US $44.81 |
||
|
17
|
17
45031023100 Main jet 100 mikuniFOR FOOT BRAKE |
45031023100 |
US $4.90 |
||
|
17
|
17
45031023105 Main jet 105 mikuniFOR FOOT BRAKE |
45031023105 |
US $4.90 |
||
|
17
|
17
45031023110 Main jet 110 mikuniFOR FOOT BRAKE |
45031023110 |
US $4.90 |
||
|
17
|
17
45031023115 Main jet 115 mikuniFOR FOOT BRAKE |
45031023115 |
US $5.39 |
||
|
17
|
17
45031023120 Main jet 120 mikuniFOR FOOT BRAKE |
45031023120 |
US $5.25 |
||
|
18
|
18
45031010100
Gasket float bowl
FOR FOOT BRAKE |
45031010100 |
— | ||
|
19
|
19
45031011200 Float chamber vm20-364 '99FOR FOOT BRAKE |
45031011200 |
US $42.40 |
||
|
20
|
20
45031017000 Air reg. screwFOR FOOT BRAKE |
45031017000 |
US $5.58 |
||
|
21
|
21
45031015000
Spring
FOR FOOT BRAKE |
45031015000 |
— | ||
| replacement | |||||
|
21
|
21
55431017010 Compression Spring AdjusterFOR FOOT BRAKE |
55431017010 |
US $4.28 |
||
|
22
|
22
45031015100 Spring mikuniFOR FOOT BRAKE |
45031015100 |
US $2.19 |
||
|
23
|
23
45031019100 Idle adj. screw vm20FOR FOOT BRAKE |
45031019100 |
US $5.80 |
||
|
24
|
24
45031018000
Seal ring
FOR FOOT BRAKE |
45031018000 |
— | ||
|
25
|
25
45031020000
Needle valve
FOR FOOT BRAKE |
45031020000 |
— | ||
|
26
|
26
45031006100 Float vm20-352 mikuniFOR FOOT BRAKE |
45031006100 |
US $18.62 |
||
|
27
|
27
45031008000
Pin 2,5x27
FOR FOOT BRAKE |
45031008000 |
— | ||
|
28
|
28
52031137001 Pvc-hose 3x5mmFOR FOOT BRAKE |
52031137001 |
US $6 |
||
|
29
|
29
46031074000 BuffleFOR FOOT BRAKE |
46031074000 |
US $2.70 |
||
|
30
|
30
45031014016 Lintil head screw m4x16 (set)FOR FOOT BRAKE |
45031014016 |
US $2.70 |
||
| replacement | |||||
|
30
|
30
0016040133 Hh collar screw m 4x13 ws=6FOR FOOT BRAKE |
0016040133 |
US $0.53 |
||
|
31
|
31
52031137001 Pvc-hose 3x5mmFOR FOOT BRAKE |
52031137001 |
US $6 |
||
|
32
|
32
45031007100 Idling jet vm20-352 mikuniFOR FOOT BRAKE |
45031007100 |
US $8.48 |
||
|
34
|
34
46031014000 Plug screw m16 ws=17FOR FOOT BRAKE |
46031014000 |
US $19.26 |
||
|
35
|
35
46031043000 O-ring 17,5x1,4FOR FOOT BRAKE |
46031043000 |
US $4.17 |
||
