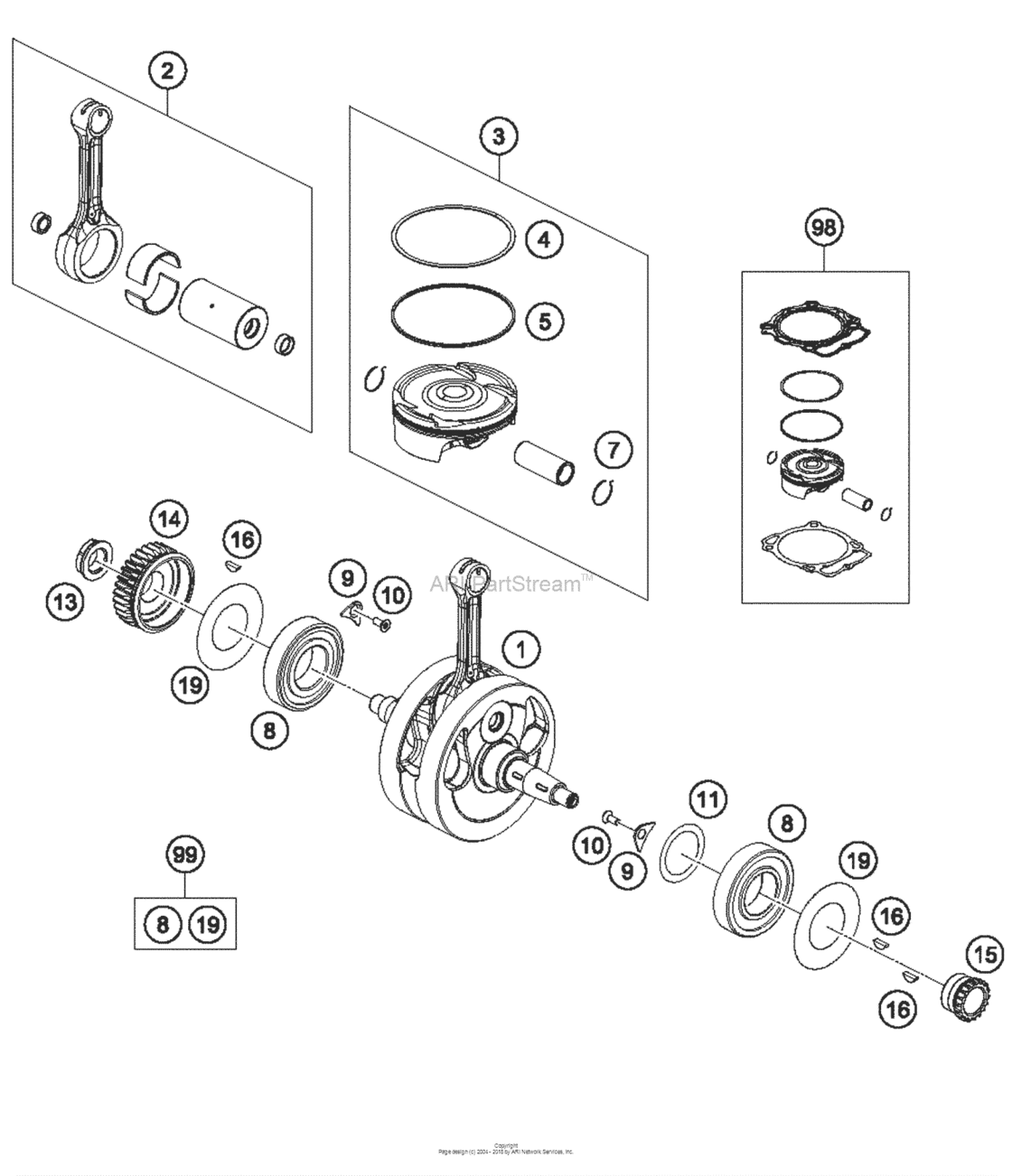

Crankshaft, Piston Diagram KTM 500 500 EXC-F
- Year
- 2018
- Sales region
- US/EU
- Engine Capacity
- 500
- Model
- 500 EXC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79630018000 Crankshaft Cpl2000 |
79630018000 |
US $1,007.35 |
||
|
2
|
2
79630015044 Conrod Repair Kit2000 |
79630015044 |
US $473.14 |
||
|
3
|
3
79630007000I
Piston I Cpl
2000 |
79630007000I |
— | ||
|
3
|
3
79630007000II
Piston Ii Cpl
2000 |
79630007000II |
— | ||
|
4
|
4
78930030000 Compression Ring2000 |
78930030000 |
US $36.69 |
||
|
5
|
5
78930032000 Oil Scraper Ring2000 |
78930032000 |
US $53.38 |
||
|
7
|
7
78930074000 Circlip2000 |
78930074000 |
US $19.36 |
||
|
8
|
8
79430082000 Cylinder Roller Bearing Nj2072000 |
79430082000 |
US $92.21 |
||
|
9
|
9
75030085000 Retaining plate f. cs bearing2000 |
75030085000 |
US $4.08 |
||
|
10
|
10
0019050121S Int. Torx Flat Head M5X12 T252000 |
0019050121S |
US $0.66 |
||
|
11
|
11
56530081000 Shim washer 36x48x0,10As Required |
56530081000 |
US $4.10 |
||
|
11
|
11
56530081100 Shim washer 36x48x0,15As Required |
56530081100 |
US $1.28 |
||
|
11
|
11
56530081200 Shim washer 36x48x0,20 steelAs Required |
56530081200 |
US $1.28 |
||
|
11
|
11
56530081300 Shim washer 36x48x0,30As Required |
56530081300 |
US $1.28 |
||
|
13
|
13
78030029200 Nut primary wheel m20x1,5As Required |
78030029200 |
US $6.83 |
||
|
14
|
14
79432023031 Primary Gear 31TAs Required |
79432023031 |
US $83.91 |
||
|
15
|
15
78036014200 Timing gear 18t.As Required |
78036014200 |
US $28.66 |
||
|
16
|
16
0888030037 Woodruff key din6888-3x3,7As Required |
0888030037 |
US $0.58 |
||
|
19
|
19
79430084000 Bearing SealAs Required |
79430084000 |
US $6.89 |
||
|
98
|
98
79630007010I
Piston Kit I 500 Exc-F
As Required |
79630007010I |
— | ||
|
98
|
98
79630007010II
Piston Kit Ii 500 Exc-F
As Required |
79630007010II |
— | ||
|
99
|
99
00050002315 Crankshaft Rep.kit 450 Sx-F 15As Required |
00050002315 |
US $175.29 |
