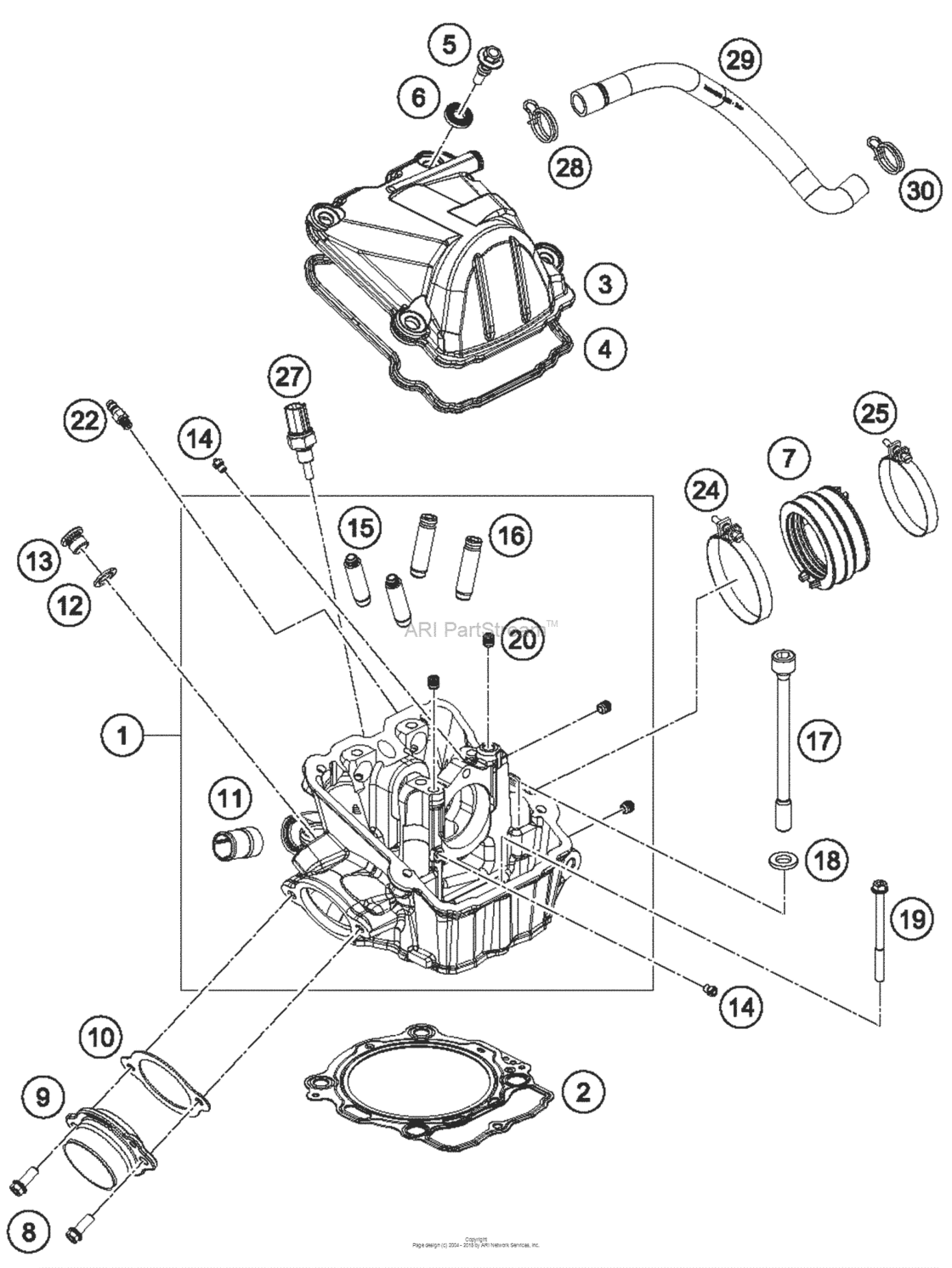

Cylinder Head Diagram KTM 500 500 EXC-F
- Year
- 2018
- Sales region
- US/EU
- Engine Capacity
- 500
- Model
- 500 EXC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79436520044 Cylinder Head CplAs Required |
79436520044 |
US $1,101.21 |
||
|
2
|
2
79430036010 Cylinder Head Gasket (Dn95)As Required |
79430036010 |
US $129.44 |
||
|
3
|
3
7943605200033 Valve CoverAs Required |
7943605200033 |
US $53.38 |
||
|
4
|
4
79436053000 Valve Cover GasketAs Required |
79436053000 |
US $7.92 |
||
|
5
|
5
78036054100 Valve cover screwAs Required |
78036054100 |
US $5.93 |
||
|
6
|
6
75036052010 Decoupling element 07As Required |
75036052010 |
US $5.20 |
||
|
7
|
7
79236044100 Rubber CupAs Required |
79236044100 |
US $39.05 |
||
|
8
|
8
0025060166S Hh collar screw m6x16 isa 30TX30 |
0025060166S |
US $1.16 |
||
|
9
|
9
78136139000 Exhaust FlangeTX30 |
78136139000 |
US $54.64 |
||
|
10
|
10
78036041000 Exhaust flange gasketTX30 |
78036041000 |
US $3.26 |
||
|
11
|
11
58030010200 Screw In Nozzle M20X1,5TX30 |
58030010200 |
US $8.82 |
||
|
12
|
12
58038022000 Cu-Seal Ring Din7603-12X18X1,5TX30 |
58038022000 |
US $1.97 |
||
|
13
|
13
78036024000 Plug screw sas m12x1,5TX30 |
78036024000 |
US $8.59 |
||
|
14
|
14
60030063070 Oil jet 70 m5TX30 |
60030063070 |
US $10.86 |
||
|
15
|
15
77136026000 Valve GuideTX30 |
77136026000 |
US $11.39 |
||
|
16
|
16
78136025001 Valve Guide IntakeTX30 |
78136025001 |
US $21.95 |
||
|
17
|
17
78630044000 Cyl. head screw m10x1,25 l=138TX30 |
78630044000 |
US $10.25 |
||
|
18
|
18
77336089010 Washer 19x10,5x2,5TX30 |
77336089010 |
US $3.13 |
||
|
19
|
19
0025060806 Hh Collar Screw M6X80 Tx30TX30 |
0025060806 |
US $1.41 |
||
|
20
|
20
59030296000 Screw plugTX30 |
59030296000 |
US $5.49 |
||
|
22
|
22
60036023100 Vacuum conection m6/0,5mmTX30 |
60036023100 |
US $28.76 |
||
|
24
|
24
61036047000 Hose clamp gemi 63mm 05TX30 |
61036047000 |
US $7.46 |
||
|
25
|
25
77236048000 Hose Clamp Gemi 58MmTX30 |
77236048000 |
US $12.09 |
||
|
27
|
27
79435047000 Temperatur Sensor WaterTX30 |
79435047000 |
US $21.81 |
||
|
28
|
28
60306082000 Clamp Ydnac 10173 (19Mm)TX30 |
60306082000 |
US $1.04 |
||
|
29
|
29
79430087000 Engine Breathing HoseTX30 |
79430087000 |
US $15.66 |
||
|
30
|
30
58431082100 Ydnac-clamp 10173 (16mm) '9898 |
58431082100 |
US $0.73 |
