Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 79434031100 Shift Lever Cpl TX30	79434031100	US $91.60
2	2 0024060156S Hh Collar Screw M6X15 Torx30 TX30	0024060156S	US $0.58
4	4 0760142460 Shaft seal ring 14x24x6 b TX30	0760142460	US $11.70
5	5 54632095000 Needle bear.hk 1412 14x20x12 TX30	54632095000	US $7.60
6	6 54634050000 Stop disk 14x30x1 TX30	54634050000	US $0.71
7	7 54634014100 Return spring 2,2mm '95 95	54634014100	US $6.60
8	8 54634020000 Spring guide 95	54634020000	US $5.66
9	9 56534013100 Tensioning Spring 0,8Mm 95	56534013100	US $2.94
10	10 79434005133 Shift Shaft Cpl 95	79434005133	US $76.19
11	11 54634108044 Sliding Plate 95	54634108044	US $38.49
13	13 79434020000 Gear Shift Rail 11,8X91,1Mm 95	79434020000	US $12.09
14	14 58038023200 Pressure spring 0,9mm 95	58038023200	US $2.84
15	15 50334018100 Shifting Roller 6X8X5,2 95	50334018100	US $3.04
16	16 79434015000 Selector Interlock Mechan. Cpl Not Available 95	79434015000	US $42.74
17	17 79434512200 Shift Drum 6 Gear 95	79434512200	US $60.81
18	18 0025060166 Hh collar screw m6x16 tx30 TX30	0025060166	US $2.23
20	20 78134024044 Locking Lever Cpl TX30	78134024044	US $12.50
21	21 0025050206 Hh collar screw m5x20 tx30 TX30	0025050206	US $1.33
22	22 54634052300 Sleeve for locking lever TX30	54634052300	US $2.67
23	23 60034023000 Arresting lever spring 03 TX30	60034023000	US $1.45
24	24 79434019000 Gear Shift Rail 11,8X74,5Mm TX30	79434019000	US $10.03
25	25 79434001100 Shifting Fork 5Th-6Th Gear TX30	79434001100	US $86.70
26	26 0021050003 Washer din9021-a 5,3 TX30	0021050003	US $1.29
27	27 79434002100 Shifting Fork 2Nd-4Th Gear TX30	79434002100	US $80.90
28	28 0625618050 Ball bearing 61805 c3 TX30	0625618050	US $39.98
29	29 50233041500 Pair Nordlock Washer M6 TX30	50233041500	US $5.20
30	30 79434003100 Shifting Fork 1St-3Rd Gear TX30	79434003100	US $80.46
31	31 0402061480 Needle roller din5402 6x14,8 TX30	0402061480	US $4.71
32	32 79234012010 Friction Bearing Controller TX30	79234012010	US $23.12
33	33 79234012020 Magnet Holder Cpl TX30	79234012020	US $59.48
34	34 79211023000 Gear Sensor TX30	79211023000	US $123.64
35	35 0984050123S Cylind. scr. din6912 m5x12 8.8 TX30	0984050123S	US $1.05

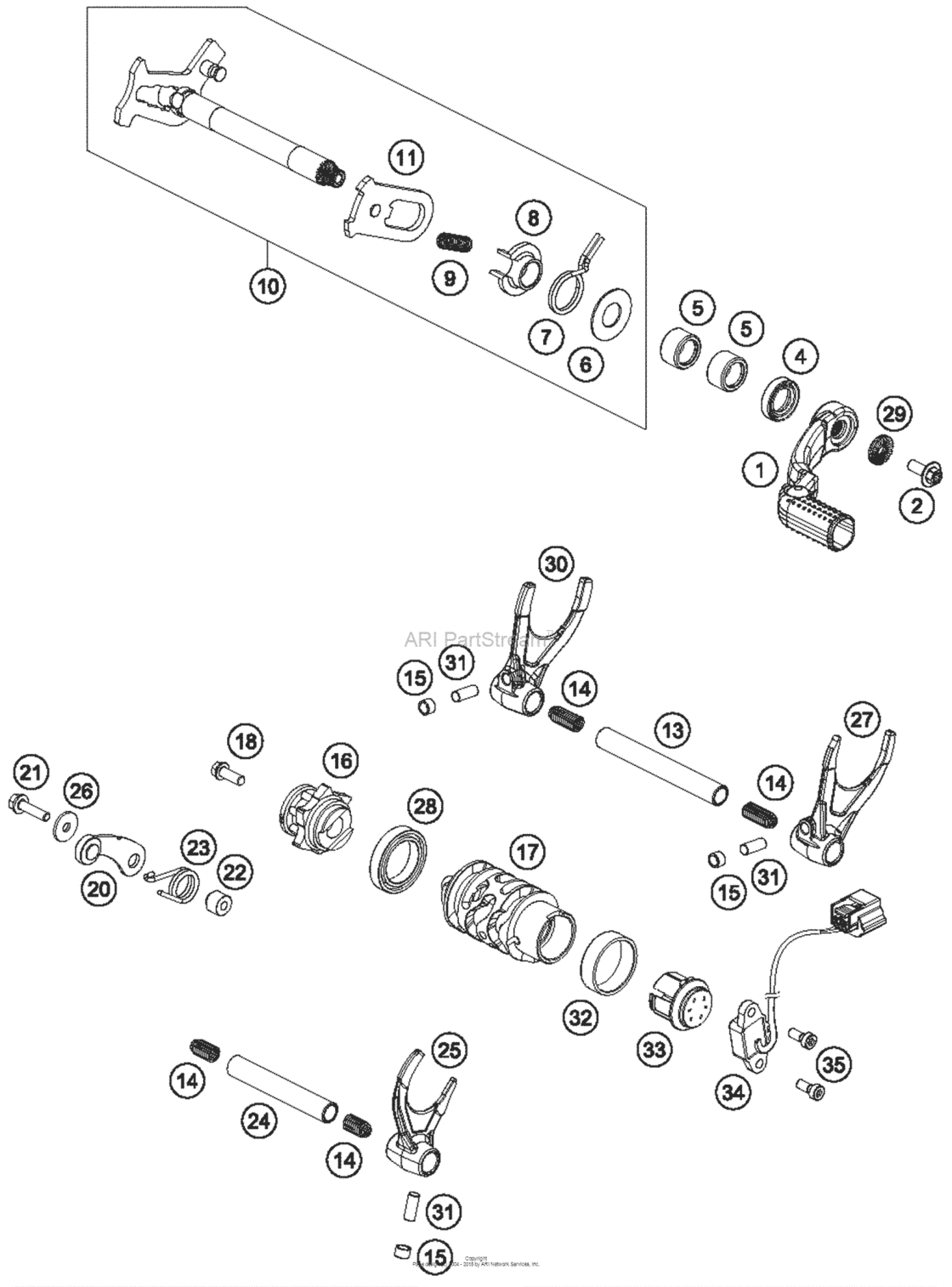

Shifting Mechanism Diagram KTM 500 500 EXC-F US/EU 18098143-940310

Shifting Mechanism Diagram KTM 500 500 EXC-F US/EU 18098143-940310
