	Description	OEM Part #	Price
1	1 79433610000 Abtriebswelle TX30	79433610000	—
2	2 79433611000 Losrad 1.g TX30	79433611000	—
3	3 79433615000 Schieberad 5.g TX30	79433615000	—
4	4 79433613000 Losrad 3.g TX30	79433613000	—
5	5 79433614000 Losrad 4.g TX30	79433614000	—
6	6 79433616000 Schieberad 6.g TX30	79433616000	—
7	7 79433612000 Losrad 2.g TX30	79433612000	—
8	8 0405222611 Needle bear.k 22x26x10 divided TX30	0405222611	US $12.41
9	9 0471250120 Circlip Din0471-25X1,2 TX30	0471250120	US $1.31
10	10 78033031000 Stop disk 26 x 32 x 1,5 TX30	78033031000	US $2.28
11	11 78033033000 Stop disk 23 x 32 x 1,5 TX30	78033033000	US $2.87
12	12 59033080000 Shim 20X32X1 TX30	59033080000	US $1.73
13	13 0405202612 Needle bearing k 20x26x12 TX30	0405202612	US $10.90
14	14 56033030000 Stop Disc 17,2X30X1 TX30	56033030000	US $3.83
15	15 0471170015 Circlip din 0471-17x1, 5 TX30	0471170015	US $0.66
20	20 0625062035 Ball bearing 6203 jr2 c3 TX30	0625062035	US $12.95
21	21 78033132000 Tab washer bearing count.shaft TX30	78033132000	US $4.15
22	22 0019050121S Int. Torx Flat Head M5X12 T25 TX30	0019050121S	US $0.66
23	23 49030023000 Cyl.roll Bearing Nj205 TX30	49030023000	US $67.86
24	24 0760324571 Shaft seal ring 32x45x7 bslnbr TX30	0760324571	US $6.61
25	25 0770020220 O-ring 25,12x1,78 nbr70 TX30	0770020220	US $3.89
26	26 78133014000 Spacer Sleeve Counter TX30	78133014000	US $31.20
27	27 79233029013 Sprocket 13T As Required	79233029013	US $33.08
27	27 79233129014 Engine Sprocket 14Z As Required	79233129014	US $39.78
28	28 59033034044 Screw 10.9+Spring Washer As Required	59033034044	US $9.01
99	99 00050000941 Counter Shaft Rep.kit 4 Stroke As Required	00050000941	US $36.26

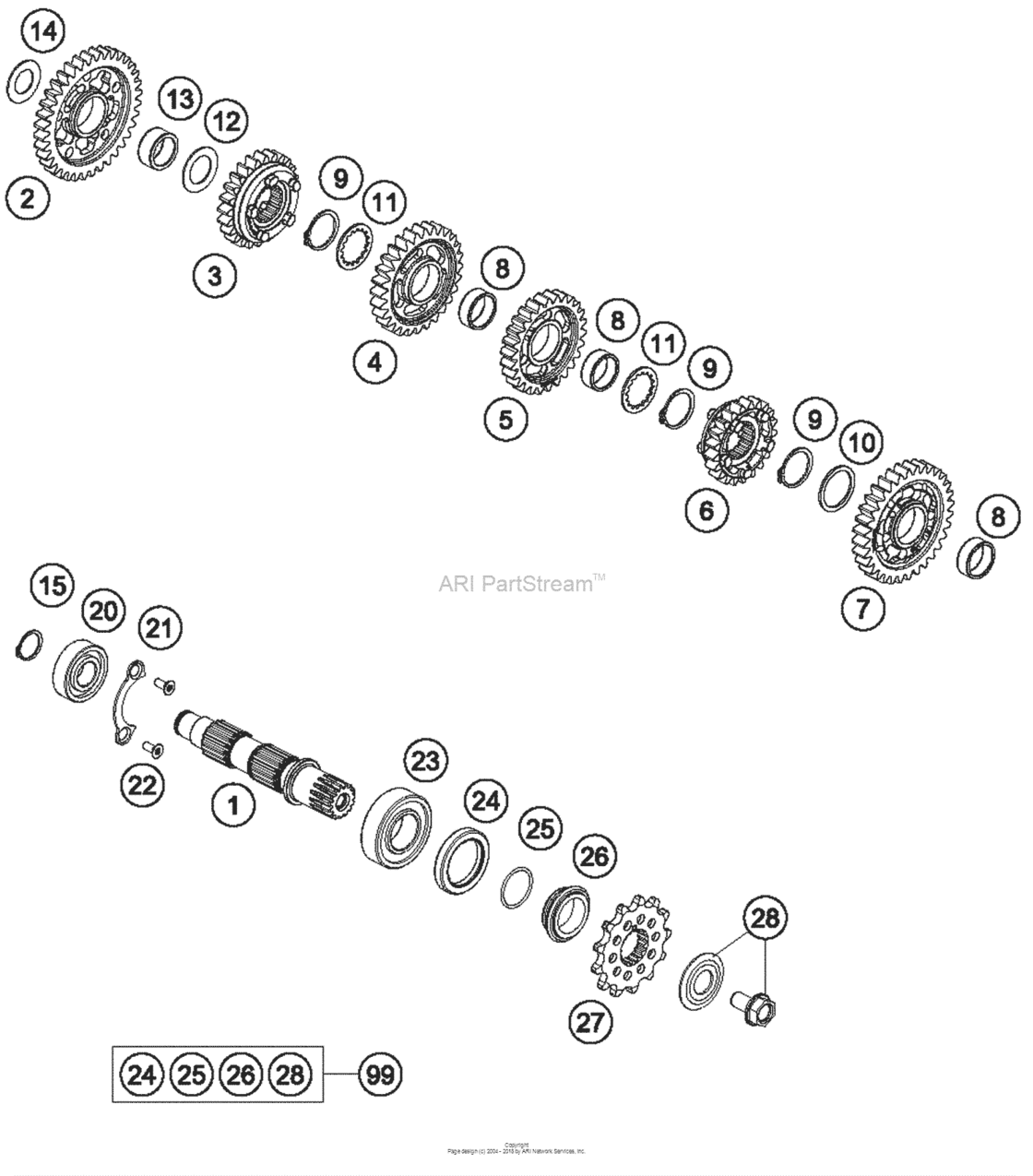

Transmission Ii - Countershaft Diagram KTM 500 500 EXC-F US/EU 18098147-940310

Transmission Ii - Countershaft Diagram KTM 500 500 EXC-F US/EU 18098147-940310
