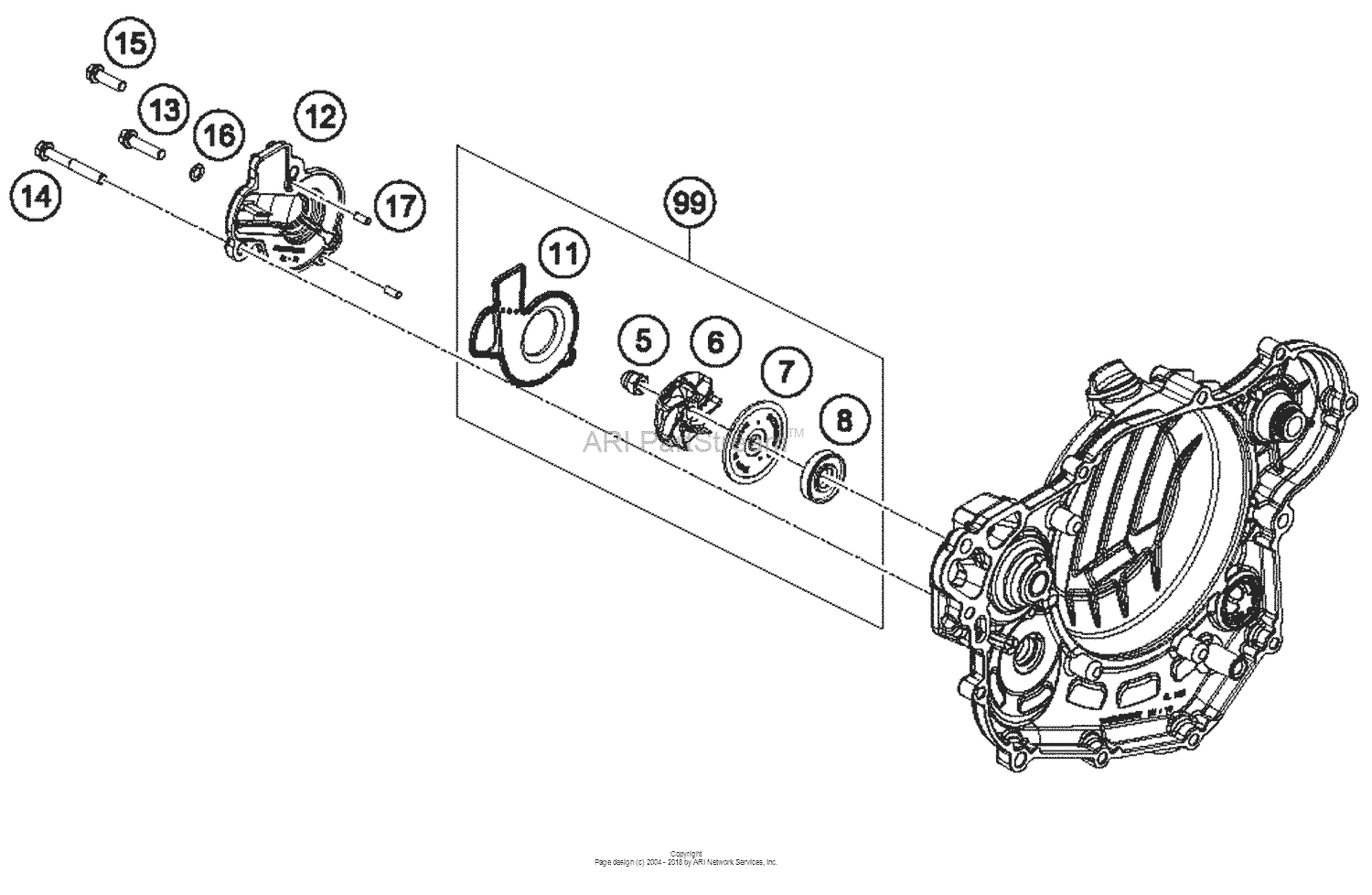

Water Pump Diagram KTM 500 500 EXC-F
- Year
- 2018
- Sales region
- US/EU
- Engine Capacity
- 500
- Model
- 500 EXC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
5
|
5
61230045000 Cap Nut M6 Stainless SteelAs Required, 14-15 |
61230045000 |
US $0.90 |
||
|
6
|
6
81235055020 Water pump rotorAs Required, 14-15 |
81235055020 |
US $8.99 |
||
|
7
|
7
81235055110 Disc water pumpAs Required, 14-15 |
81235055110 |
US $3.86 |
||
|
8
|
8
0760123073 Shaft seal ring 12x30x7 ptfeAs Required, 14-15 |
0760123073 |
US $16.13 |
||
|
11
|
11
79435053000 Seal With Carrier PlateAs Required, 14-15 |
79435053000 |
US $28.75 |
||
|
12
|
12
79435052000 Water Pump CoverAs Required, 14-15 |
79435052000 |
US $17.80 |
||
|
13
|
13
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
14
|
14
0025060456 Hh collar screw m6x45 tx30TX30 |
0025060456 |
US $1.89 |
||
|
15
|
15
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
16
|
16
0603061001 Cu-Seal Ring Din7603-6X10X1TX30 |
0603061001 |
US $2.64 |
||
|
17
|
17
0402040980 Needle Rol.din5402 Nrb 4X9,8TX30 |
0402040980 |
US $1.77 |
||
|
99
|
99
79435055015 Water Pump Rep. KitAs Required |
79435055015 |
US $55.73 |
