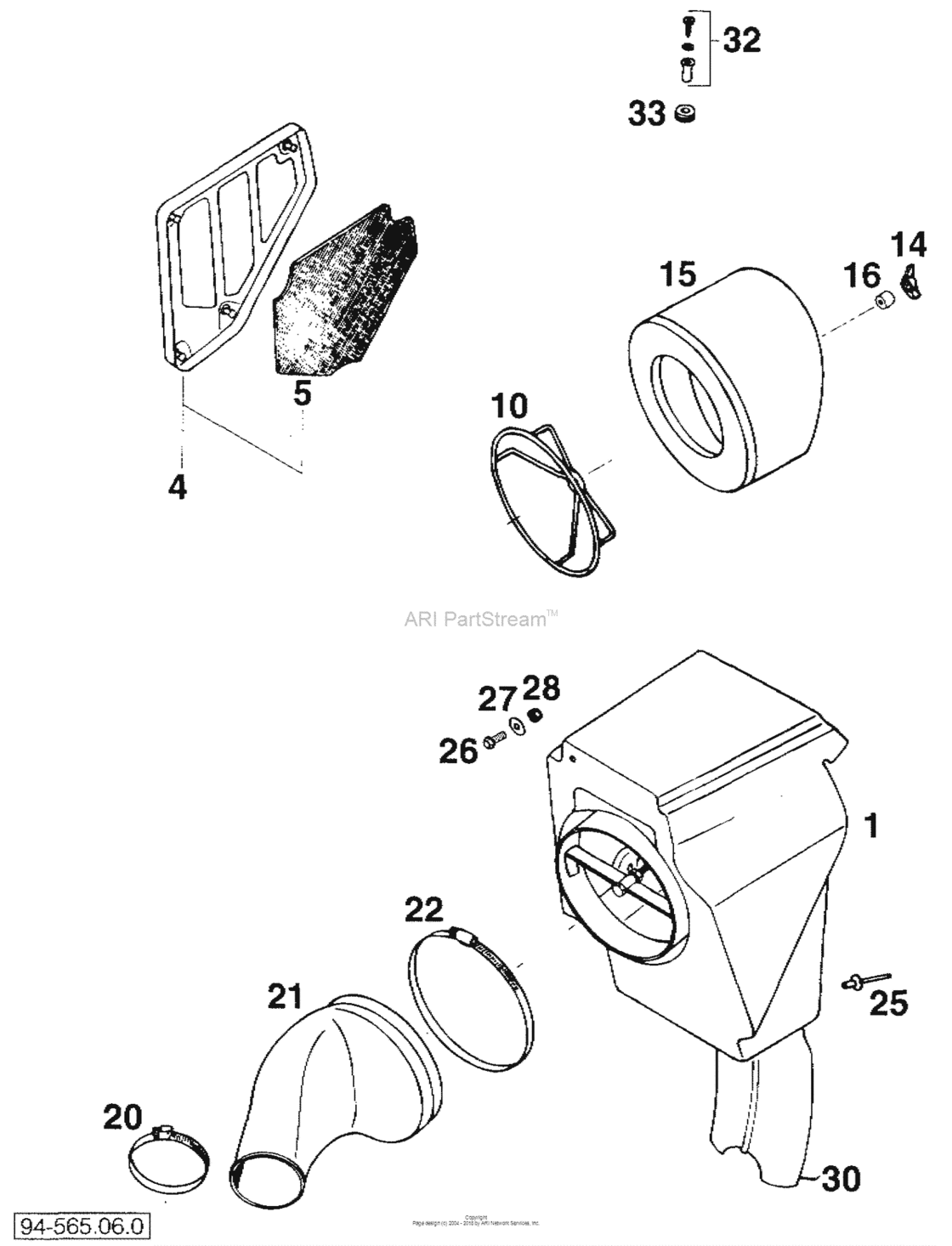

Airfilter Box Diagram KTM 500 500 SX
- Year
- 1995
- Sales region
- US/EU
- Engine Capacity
- 500
- Model
- 500 SX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54506001100
Airfilter box 440/500/550 '94
94 |
54506001100 |
— | ||
|
4
|
4
54506002000
Airfilterbox cover 440/500/5
94 |
54506002000 |
— | ||
|
5
|
5
54506002052
Foam rubber 440/550 '87
94 |
54506002052 |
— | ||
|
10
|
10
50106016000
Superseded By 50106016100
94 |
50106016000 |
— | ||
|
14
|
14
56003076000
Wing nut m6
94 |
56003076000 |
— | ||
|
15
|
15
56506015100 Airfilter94 |
56506015100 |
US $37.84 |
||
|
16
|
16
50206017050 Bushing 6,5x15x10 alu94 |
50206017050 |
US $2.75 |
||
|
20
|
20
55006028000 Hose clamp 60-80mm94 |
55006028000 |
US $5.46 |
||
|
21
|
21
56506026200
Carburetor boot 440/550 rubb.
94 |
56506026200 |
— | ||
|
22
|
22
54506028000
Hose clamp 120-140mm
94 |
54506028000 |
— | ||
|
25
|
25
43206043000 Blind rivet94 |
43206043000 |
US $1.79 |
||
|
26
|
26
0015060163 Hh Collar Screw M 6X16 Ws=8SW=8 |
0015060163 |
US $2.23 |
||
|
27
|
27
0021060003 Washer Din9021-A 6,4SW=8 |
0021060003 |
US $3.26 |
||
|
28
|
28
0985060003 Self Lock. Nut Din0985-M 6SW=8 |
0985060003 |
US $2.60 |
||
|
30
|
30
50206010000
Splash protect airf.box '87
87 |
50206010000 |
— | ||
|
32
|
32
57206004044
Fastening set for filter cap
87 |
57206004044 |
— | ||
|
33
|
33
54506006000 Rubber sleeve d=8mm87 |
54506006000 |
US $2.33 |
