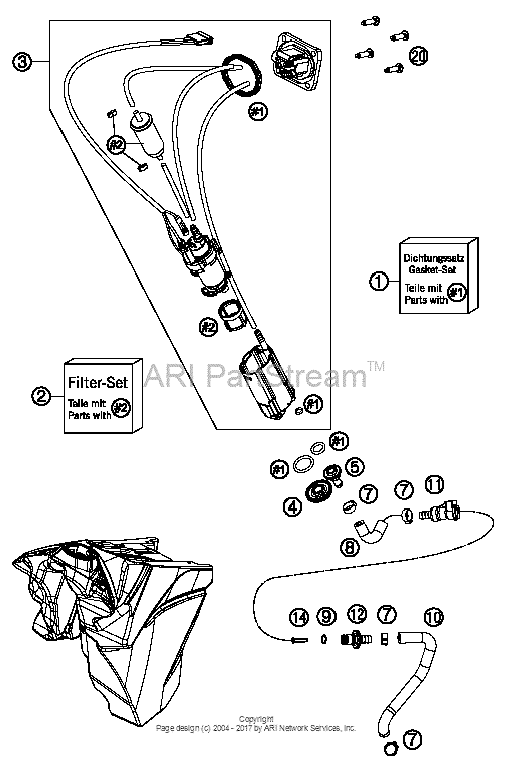

Fule Pump Diagram KTM 500 500 XC-W
- Year
- 2016
- Sales region
- US/EU
- Engine Capacity
- 500
- Model
- 500 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78107089000
Gasket Kit
As Required |
78107089000 |
— | ||
| replacement | |||||
|
1
|
1
78107089100 Gasket KitAs Required |
78107089100 |
US $66.37 |
||
|
2
|
2
81207090000
Filter kit
As Required |
81207090000 |
— | ||
| replacement | |||||
|
2
|
2
81207090100 Filter KitAs Required |
81207090100 |
US $152.58 |
||
|
3
|
3
78107088000
Fuel Pump
As Required |
78107088000 |
— | ||
| replacement | |||||
|
3
|
3
78107088100
Fuel Pump
As Required |
78107088100 |
— | ||
|
4
|
4
78107088114 Nut Fuel Pump M12As Required |
78107088114 |
US $7.48 |
||
|
5
|
5
78107088117 Connector Fuel Pump 20122012 |
78107088117 |
US $10.35 |
||
|
7
|
7
00050157706 Variable One-Ear Clamp 15,7Mm2012 |
00050157706 |
US $3.67 |
||
|
8
|
8
77407116000 Fuel Hose Tank2012 |
77407116000 |
US $12.84 |
||
|
9
|
9
58507012000 O-ring viton f. plug cpc 052012 |
58507012000 |
US $5.37 |
||
|
10
|
10
78107016100 Fuel Hose Preformed Dkk2012 |
78107016100 |
US $21.91 |
||
|
10
|
10
77407016100 Fuel Hose Preformed DkkAs Required |
77407016100 |
US $15.81 |
||
|
11
|
11
5850701050030 Clutch cpc black 05As Required |
5850701050030 |
US $50.93 |
||
|
12
|
12
77707010000 Connector Fuel PumpAs Required |
77707010000 |
US $13.69 |
||
|
14
|
14
78141013190 Fuel FilterAs Required |
78141013190 |
US $8.21 |
||
|
20
|
20
0014050163 Hh collar screw m 5x16 ws=6As Required |
0014050163 |
US $1.36 |
||
