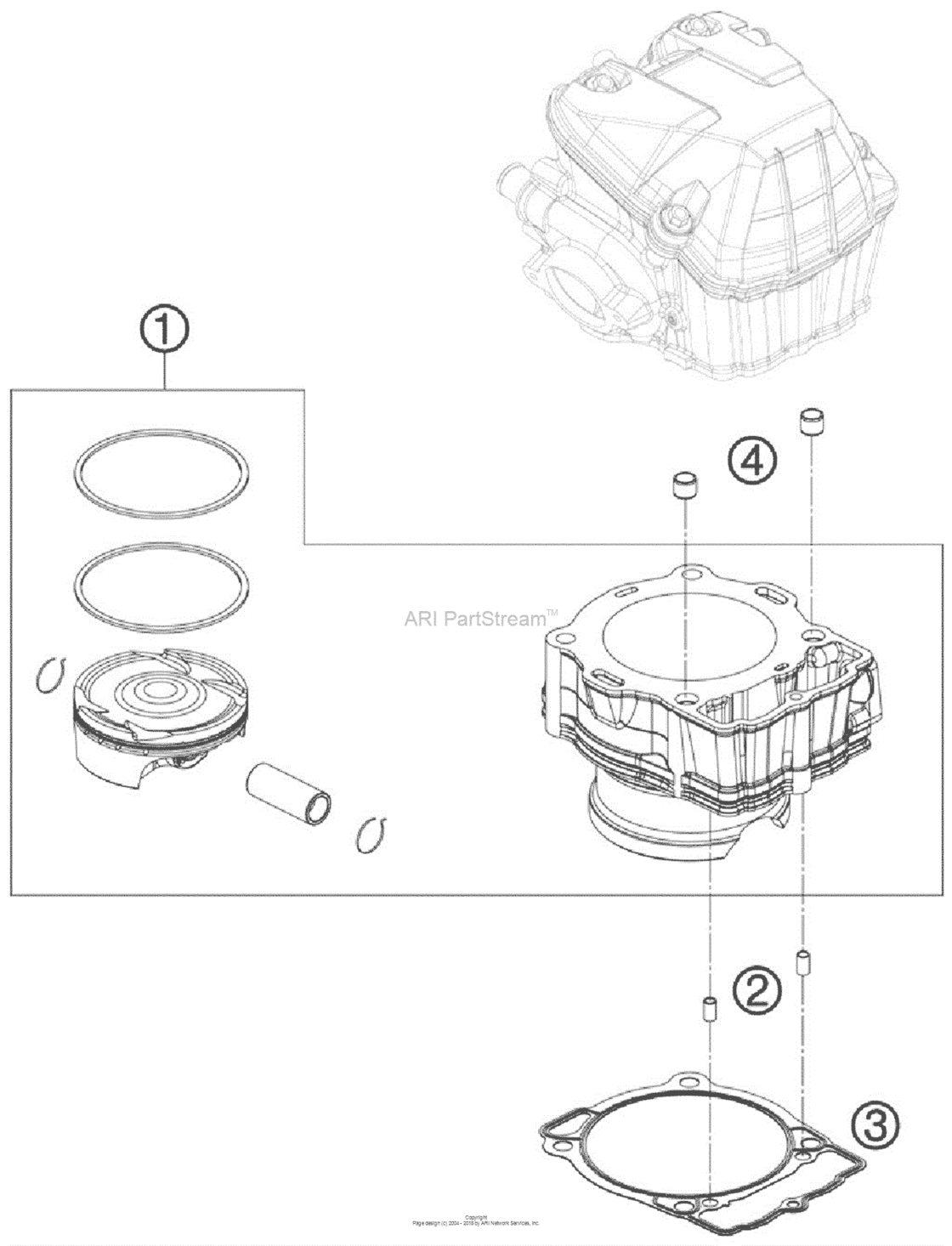

Cylinder Diagram KTM 500 500 XC-W
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 500
- Model
- 500 XC-W
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78730038000 Cylinder + Piston12 |
78730038000 |
US $1,003.22 |
||
| replacement | |||||
|
1
|
1
78730038200 Cylinder + Piston Cpl12 |
78730038200 |
US $937.50 |
||
|
2
|
2
59030023000 Dowel 6X8X11,512 |
59030023000 |
US $2.92 |
||
|
3
|
3
78030035000 Cylinder base gasket12 |
78030035000 |
US $8.11 |
||
|
4
|
4
58530014000 Dowel 10,2x12,5x10 20012001 |
58530014000 |
US $7.97 |
||
| replacement | |||||
|
4
|
4
58530014100 Dowel Bushing 10,2X12,5X102001 |
58530014100 |
US $2.57 |
||
