Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 78936030100 Intake Valve As Required, 2014	78936030100	US $190.32
2	2 78036031000 Exhaust valve As Required, 2014	78036031000	US $79
4	4 78936036000 Valve Spring Holder As Required, 2014	78936036000	US $8.04
5	5 59036027000 Valve-stem sealing racing As Required, 2014	59036027000	US $7.70
6	6 77036027000 Valve-stem sealing 05 05	77036027000	US $8.16
7	7 78936028000 Valve Spring 05	78936028000	US $21.76
8	8 78036029000 Valve spring exhaust 05	78036029000	US $11.85
9	9 78936032000 Valve Spring Retainer 05	78936032000	—
	replacement
9	9 78936032100 Valve Spring Retainer 05	78936032100	US $26.32
10	10 78136032000 Valve Spring Support 05	78136032000	US $20.76
11	11 77336033100 Valve collet 07 07	77336033100	US $2.09
12	12 77036033000 Valve collet 05 05	77036033000	US $7.89
15	15 78036061044 Rocker arm exhaust cpl. 05	78036061044	US $107.80
19	19 78036056200 Rocker Arm Shaft 05	78036056200	US $23.17
20	20 78036060044 Rocker arm intake cpl. 05	78036060044	US $107.80
21	21 0770110015 O-ring 1,5x11 silicon 05	0770110015	US $4.81
22	22 78036081000 Holding bolt m14x1,5 05	78036081000	US $8.25
23	23 77036080000 Special screw m7x40 ws10 05	77036080000	US $4.39
24	24 78036080000 Fit bolt m7x1x55 05	78036080000	US $5.49
25	25 60036035200 Shim d=10/2,00 03 03, Required	60036035200	US $4.91
25	25 60036035205 Shim d=10/2,05 03 03, Required	60036035205	US $4.91
25	25 60036035210 Shim d=10/2,10 03 03, Required	60036035210	US $4.91
25	25 60036035215 Shim d=10/2,15 03 03, Required	60036035215	US $4.91
25	25 60036035220 Shim d=10/2,20 03 03, Required	60036035220	US $4.91
25	25 60036035225 Shim d=10/2,25 03 03, Required	60036035225	US $4.91
25	25 60036035230 Shim d=10/2,30 03 03, Required	60036035230	US $5.47
25	25 60036035235 Shim d=10/2,35 03 03, Required	60036035235	US $5.46
25	25 60036035240 Shim d=10/2,40 03 03, Required	60036035240	US $5.47
25	25 60036035245 Shim d=10/2,45 03 03, Required	60036035245	US $4.91
25	25 60036035250 Shim d=10/2,50 03 03, Required	60036035250	US $7.09
25	25 60036035255 Shim d=10/2,55 03 03, Required	60036035255	US $8.43
25	25 60036035260 Shim d=10/2,60 03 03, Required	60036035260	US $4.91
25	25 60036035265 Shim d=10/2,65 03 03, Required	60036035265	US $4.91
25	25 60036035270 Shim d=10/2,70 03 03, Required	60036035270	US $4.91
25	25 60036035275 Shim d=10/2,75 03 03, Required	60036035275	US $4.91
25	25 60036035280 Shim d=10/2,80 03 03, Required	60036035280	US $4.91
25	25 60036035285 Shim d=10/2,85 03 03, Required	60036035285	US $4.91
25	25 60036035290 Shim d=10/2,90 03 03, Required	60036035290	US $4.91
25	25 60036035295 Shim d=10/2,95 03 03, Required	60036035295	US $4.91
25	25 60036035300 Shim d=10/3,00 03 03, Required	60036035300	US $7.09
25	25 60036035305 Shim d=10/3,05 03 03, Required	60036035305	US $4.91
25	25 60036035310 Shim d=10/3,10 03 03, Required	60036035310	US $4.91
25	25 60036035315 Shim d=10/3,15 03 03, Required	60036035315	US $4.91
25	25 60036035320 Shim d=10/3,20 03 03, Required	60036035320	US $4.91
25	25 60036035330 Shim d=10/3,3 As Required	60036035330	US $6.70
30	30 78136029044 Valve Spring Kit Exhaust As Required	78136029044	US $50.71
31	31 78136028044 Valve Spring Kit Intake As Required	78136028044	US $53.69
99	99 78136030010 Valve Kit 450/500 Exc 14-15 As Required, 2014	78136030010	US $871.18

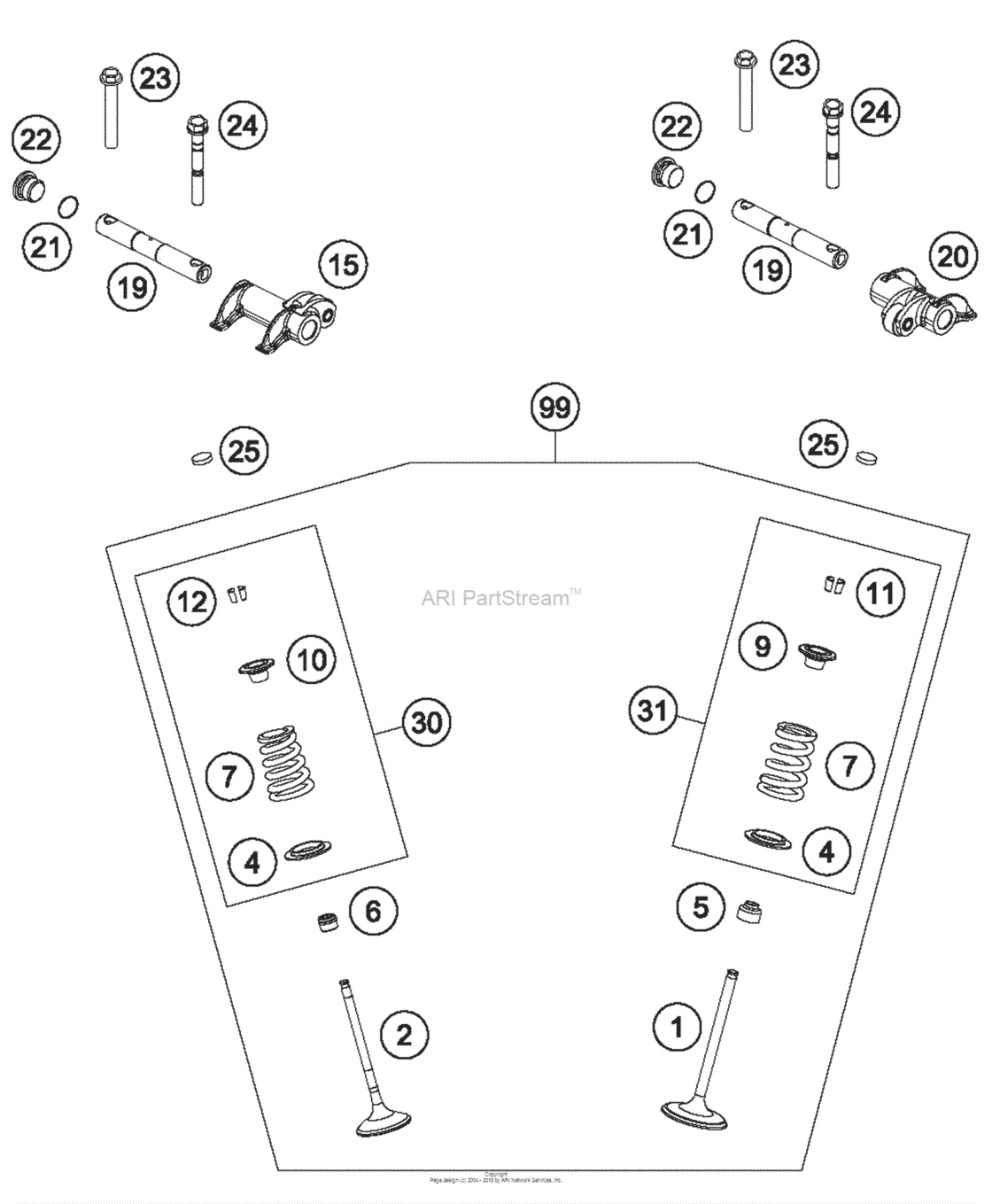

Valve Drive Diagram KTM 500 500 XC-W US/EU 18098379-940320

Valve Drive Diagram KTM 500 500 XC-W US/EU 18098379-940320
