Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 78132001076 Clutch Cage As required, 12-13	78132001076	US $316.71
2	2 0405252910 Needle bear k 25x29x10 As required, 12-13	0405252910	US $9.16
3	3 78132015100 Collarsleeve As required, 12-13	78132015100	US $27.90
4	4 78932009000 Washer 22 X 36,5 X 3 As required, 12-13	78932009000	US $7.57
5	5 78132002200 Inner Clutch Hub 450Sx-F 2014	78132002200	—
	replacement
5	5 78132002300 Clutch Hub 2014	78132002300	US $233.27
6	6 78132013000 Washer 112X118X1.5 2014	78132013000	US $9.08
7	7 78132003100 Clutch Pressure Cap 2014	78132003100	US $33.12
8	8 78132025100 Damping Rubber 2014	78132025100	US $31.20 ~~US $31.20~~
9	9 78132004000 Sleeve 7,5X33.4 2014	78132004000	US $2.87
10	10 0025050166 Hh collar screw m5x16 tx30 TX30	0025050166	US $2.60
11	11 59032011100 Lining disc 2mm 04 04	59032011100	US $24.02
	replacement
11	11 79532011000 Lining Disc 1,95Mm 04	79532011000	US $24.02
12	12 59032010200 Intermediate Disc 1,4Mm 2002 2002	59032010200	US $9.96
13	13 78132054100 Push Rod 2002	78132054100	US $9.96
14	14 78132018000 Tab Washer 2002	78132018000	—
	replacement
14	14 78132018100 Tab Washer 2002	78132018100	US $8.42
15	15 0936181505 Hexagon Nut Din0936-M18X1,5 R 2002	0936181505	US $7.60
21	21 59032065000 Gasket for slave cylinder 2002	59032065000	—
	replacement
21	21 59032065100 Gasket For Slave Cylinder 2002	59032065100	US $7.21
22	22 54832061044 Output cylinder cpl. 06 06	54832061044	US $109
23	23 54832066000 Piston cpl. 06	54832066000	US $63.02
24	24 54832067000 O-ring 06	54832067000	US $2.69
25	25 54832069000 Pressure spring 06	54832069000	US $12.09
26	26 0603100141 Copper Gasket Din7603-10X14X1 06	0603100141	US $2.24
27	27 78132063000 Clutch Pipe 06	78132063000	US $111.93
28	28 62513020000 Bleeder Screw Cpl. 05 05	62513020000	US $30.16
29	29 0025060206 Hh collar screw m6x20 tx30 TX30	0025060206	US $1.97
31	31 50329050000 Vent Injektion Hydr. Clutch TX30	50329050000	US $50.78
33	33 59032010100 Intermediate disc 1mm 2002 2002	59032010100	US $8.94
34	34 78932010000 Intermediate Disc 1Mm 2002	78932010000	US $11.39
35	35 78132057144 Pressure Piece Cpl 2002	78132057144	US $26.62
36	36 78132006100 Spring Ring 2002	78132006100	US $39.70
37	37 78132005000 Belleville Spring 71X115X1,5 I 2002	78132005000	US $32.13
38	38 78132002111 Hub 2002	78132002111	US $72.91
99	99 78932010033 Disc Package As Required	78932010033	—
	replacement
99	99 79532010033 Disc Package As Required	79532010033	US $203.39

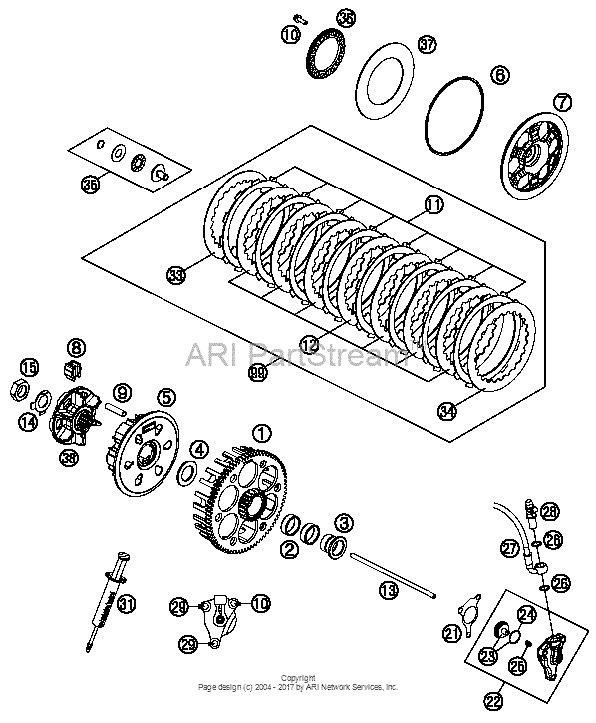

Clutch Diagram KTM 500 500 XC-W US/EU 18098383-940321

Clutch Diagram KTM 500 500 XC-W US/EU 18098383-940321
