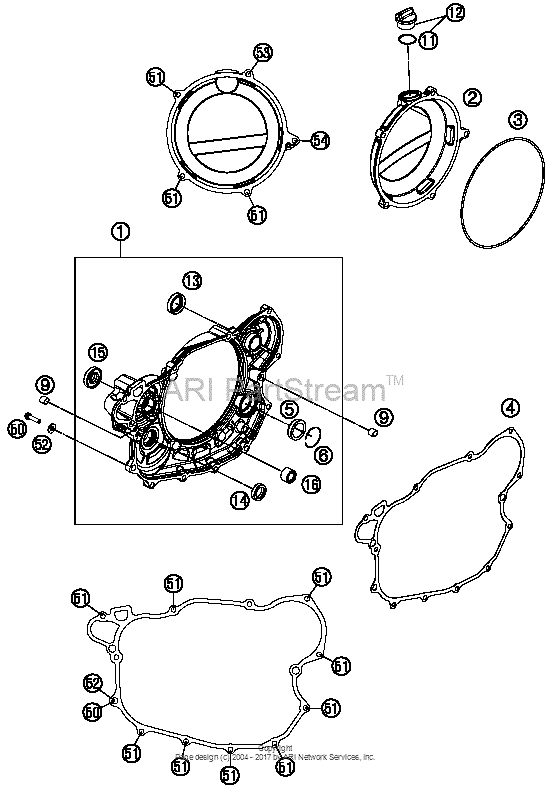

Clutch Cover Diagram KTM 500 500 XC-W
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 500
- Model
- 500 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78130001144 Clutch Cover CplAs Required |
78130001144 |
US $165.04 |
||
|
2
|
2
7813002600015 Clutch Cover OutsideAs Required |
7813002600015 |
US $79.99 |
||
|
3
|
3
78130027000 Gasket - Clutch Outer CoverAs Required |
78130027000 |
US $12.97 |
||
|
4
|
4
78130025000 Clutch Cover GasketAs Required |
78130025000 |
US $23.02 |
||
|
5
|
5
78030095100 Oil Level Glass VitonAs Required |
78030095100 |
US $12.04 |
||
|
6
|
6
61030019050 Circlip oil level glass 0303 |
61030019050 |
US $0.66 |
||
|
9
|
9
49030090000 Dowel 9,8 x 7 x 1010 |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
9
|
9
49030090100 Dowel 9,8 X7X1010 |
49030090100 |
US $2.60 |
||
|
11
|
11
0770191015 O-ring 19,00x3,00 nbr10 |
0770191015 |
US $1.16 |
||
|
12
|
12
58030120000
Oil filler cap m24x3 with o-r
10 |
58030120000 |
— | ||
| replacement | |||||
|
12
|
12
79430020033 Oil Filler Cap M24X3 With O-R10 |
79430020033 |
US $7.31 |
||
|
13
|
13
0760193070 Shaft seal ring 19x30x7 b10 |
0760193070 |
US $5.24 |
||
|
14
|
14
0760142460 Shaft seal ring 14x24x6 b10 |
0760142460 |
US $11.70 |
||
|
15
|
15
0760123073 Shaft seal ring 12x30x7 ptfe10 |
0760123073 |
US $16.13 |
||
|
16
|
16
0618121912 Needle bush nk121210 |
0618121912 |
US $20.20 |
||
|
50
|
50
78030080000 Locating screw10 |
78030080000 |
US $3.25 |
||
|
51
|
51
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
52
|
52
58030081000 Cu-seal ring 8 x 14 x 3TX30 |
58030081000 |
US $1.22 |
||
|
53
|
53
0025060556 Hh collar screw m6x55 tx30TX30 |
0025060556 |
US $2.52 |
||
|
54
|
54
0025060606 Hh collar screw m6x60 tx30TX30 |
0025060606 |
US $1.73 |
||
