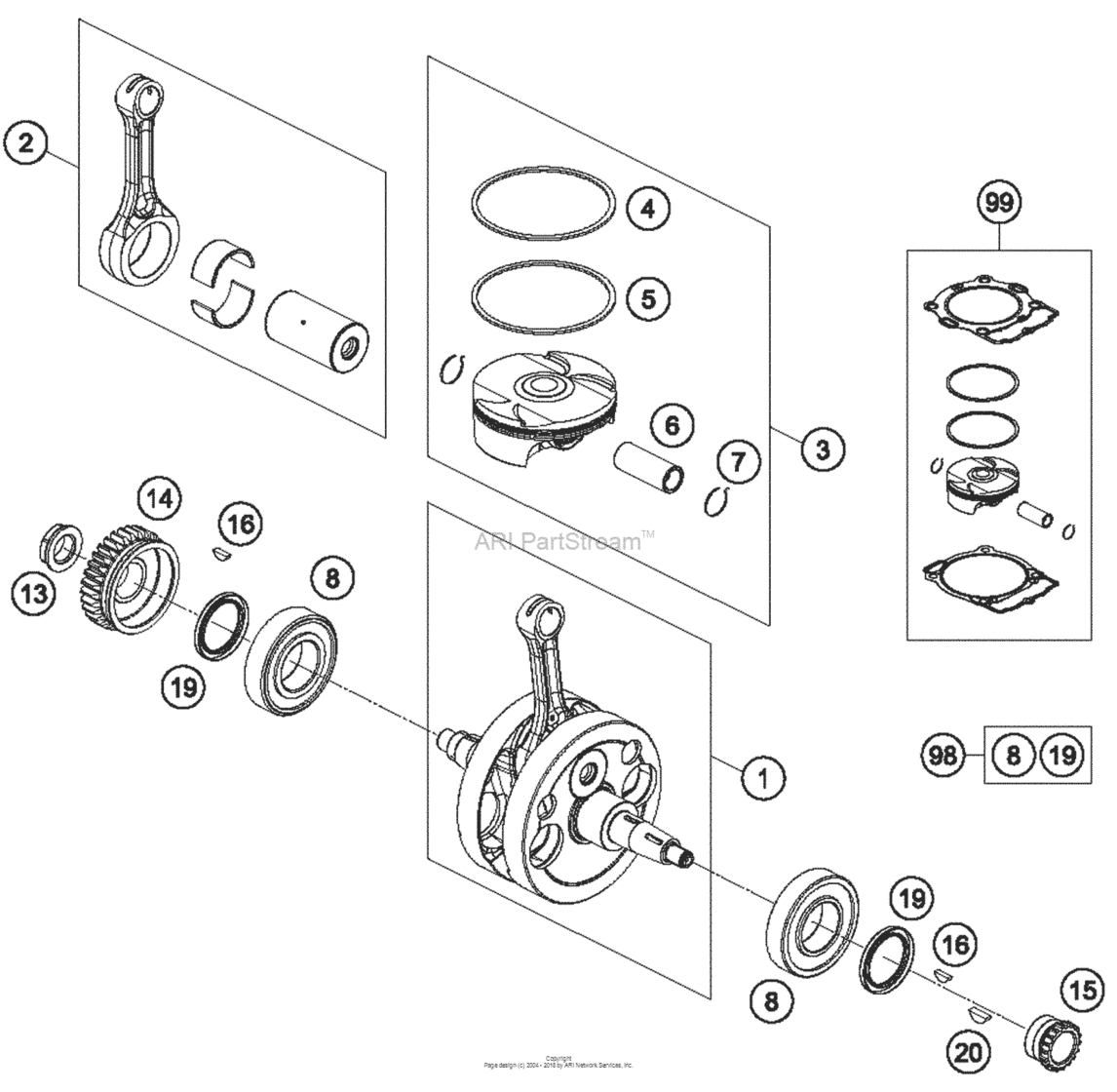

Crankshaft, Piston Diagram KTM 500 500 XC-W
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 500
- Model
- 500 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78730218000 Crankshaft Cpl2000 |
78730218000 |
US $1,076.17 |
||
|
2
|
2
78730215044 Con Rod Rep. Kit2000 |
78730215044 |
US $504.05 |
||
|
3
|
3
78730007200I
Piston I Cpl
2000 |
78730007200I |
— | ||
|
3
|
3
78730007200II
Piston Ii D=95Mm
2000 |
78730007200II |
— | ||
|
4
|
4
78930030000 Compression Ring2000 |
78930030000 |
US $36.69 |
||
|
5
|
5
78930032000 Oil Scraper Ring2000 |
78930032000 |
US $53.38 |
||
|
6
|
6
78130033000 Piston Pin2000 |
78130033000 |
US $72.64 |
||
|
7
|
7
77330074000 Circlip2000 |
77330074000 |
US $13.04 |
||
|
8
|
8
0625062071 Ball bearing 6207 tm-sx07e 392000 |
0625062071 |
US $48.54 |
||
|
13
|
13
78030029200 Nut primary wheel m20x1,52000 |
78030029200 |
US $6.83 |
||
|
14
|
14
78132000032
Primary Gear
2000 |
78132000032 |
— | ||
|
15
|
15
78036014200 Timing gear 18t.2000 |
78036014200 |
US $28.66 |
||
|
16
|
16
0888030037 Woodruff key din6888-3x3,72000 |
0888030037 |
US $0.58 |
||
|
19
|
19
0760354774 Shaft seal ring 35x47x7 viton2000 |
0760354774 |
US $11.70 |
||
|
20
|
20
0888030050 Woodruff Key Din6888-3X5X132000 |
0888030050 |
US $2.60 |
||
|
98
|
98
00050002308 Crankshaft Rep. Kit 450/500As Required |
00050002308 |
US $115.75 |
||
|
99
|
99
00050000211 Piston Kit Gr. I 500 Exc 12-14As Required, 12-14 |
00050000211 |
US $491.27 |
||
|
99
|
99
00050000212 Piston Kit Gr. Ii 500 Exc12-14As Required, 12-14 |
00050000212 |
US $491.27 |
