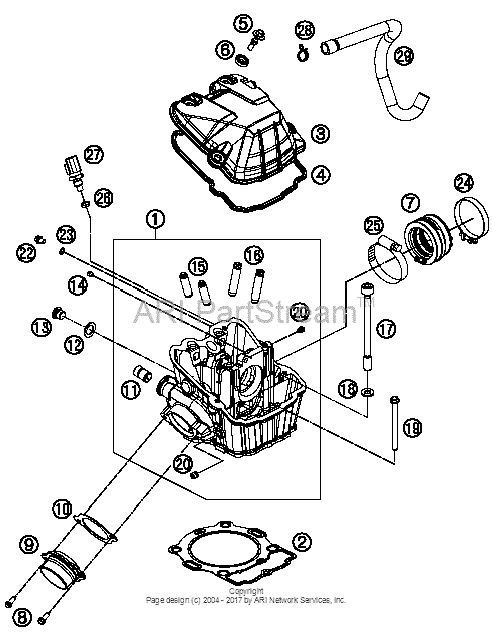

Cylinder Head Diagram KTM 500 500 XC-W
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 500
- Model
- 500 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78136120044 Cylinderhead CplAs Required, 12-14 |
78136120044 |
US $661.52 |
||
|
2
|
2
78930036010 Cylinder Head Gasket S=1.0As Required, 12-14 |
78930036010 |
US $104.50 |
||
|
3
|
3
7803605200033 Valve cover black mattAs Required, 12-14 |
7803605200033 |
US $30.72 |
||
|
4
|
4
78036053100 Valve Cover GasketAs Required, 12-14 |
78036053100 |
US $10.22 |
||
|
5
|
5
78036054100 Valve cover screwAs Required, 12-14 |
78036054100 |
US $5.93 |
||
|
6
|
6
75036052010 Decoupling element 0707 |
75036052010 |
US $5.20 |
||
|
7
|
7
77236044000 Connection Rubber Efi07 |
77236044000 |
US $38.22 |
||
|
8
|
8
0025060166S Hh collar screw m6x16 isa 3007 |
0025060166S |
US $1.16 |
||
|
9
|
9
78136139000 Exhaust Flange07 |
78136139000 |
US $54.64 |
||
|
10
|
10
78036041000 Exhaust flange gasket07 |
78036041000 |
US $3.26 |
||
|
11
|
11
58030010200 Screw In Nozzle M20X1,507 |
58030010200 |
US $8.82 |
||
|
12
|
12
58038022000 Cu-Seal Ring Din7603-12X18X1,507 |
58038022000 |
US $1.97 |
||
|
13
|
13
78036024000 Plug screw sas m12x1,507 |
78036024000 |
US $8.59 |
||
|
14
|
14
60030063070 Oil jet 70 m507 |
60030063070 |
US $10.86 |
||
|
15
|
15
77136026001 Valve Guide Outlet07 |
77136026001 |
US $35.22 |
||
|
16
|
16
78136025001 Valve Guide Intake07 |
78136025001 |
US $21.95 |
||
|
17
|
17
78630044000 Cyl. head screw m10x1,25 l=13807 |
78630044000 |
US $10.25 |
||
|
18
|
18
77336089010 Washer 19x10,5x2,507 |
77336089010 |
US $3.13 |
||
|
19
|
19
0025060856 Hh collar screw m6x85 tx30TX30 |
0025060856 |
US $1.85 |
||
|
20
|
20
59030296000 Screw plugTX30 |
59030296000 |
US $5.49 |
||
|
22
|
22
0025060086 Hh collar screw m6x8 tx30TX30 |
0025060086 |
US $1.39 |
||
|
23
|
23
0603061001 Cu-Seal Ring Din7603-6X10X1TX30 |
0603061001 |
US $2.64 |
||
|
24
|
24
61036047000 Hose clamp gemi 63mm 0505 |
61036047000 |
US $7.46 |
||
|
25
|
25
77236048000 Hose Clamp Gemi 58Mm05 |
77236048000 |
US $12.09 |
||
|
26
|
26
0770100020 O-ring 10,00x2,00 silcone05 |
0770100020 |
US $2.02 |
||
|
27
|
27
60011252000 Temperat.-sensor water lc8 0202 |
60011252000 |
US $38.01 |
||
|
28
|
28
58431082300 Clamp Ydnac 10173 (18Mm)02 |
58431082300 |
US $1.05 |
||
|
29
|
29
78130087000 Engine Breather Tube02 |
78130087000 |
US $21.73 |
